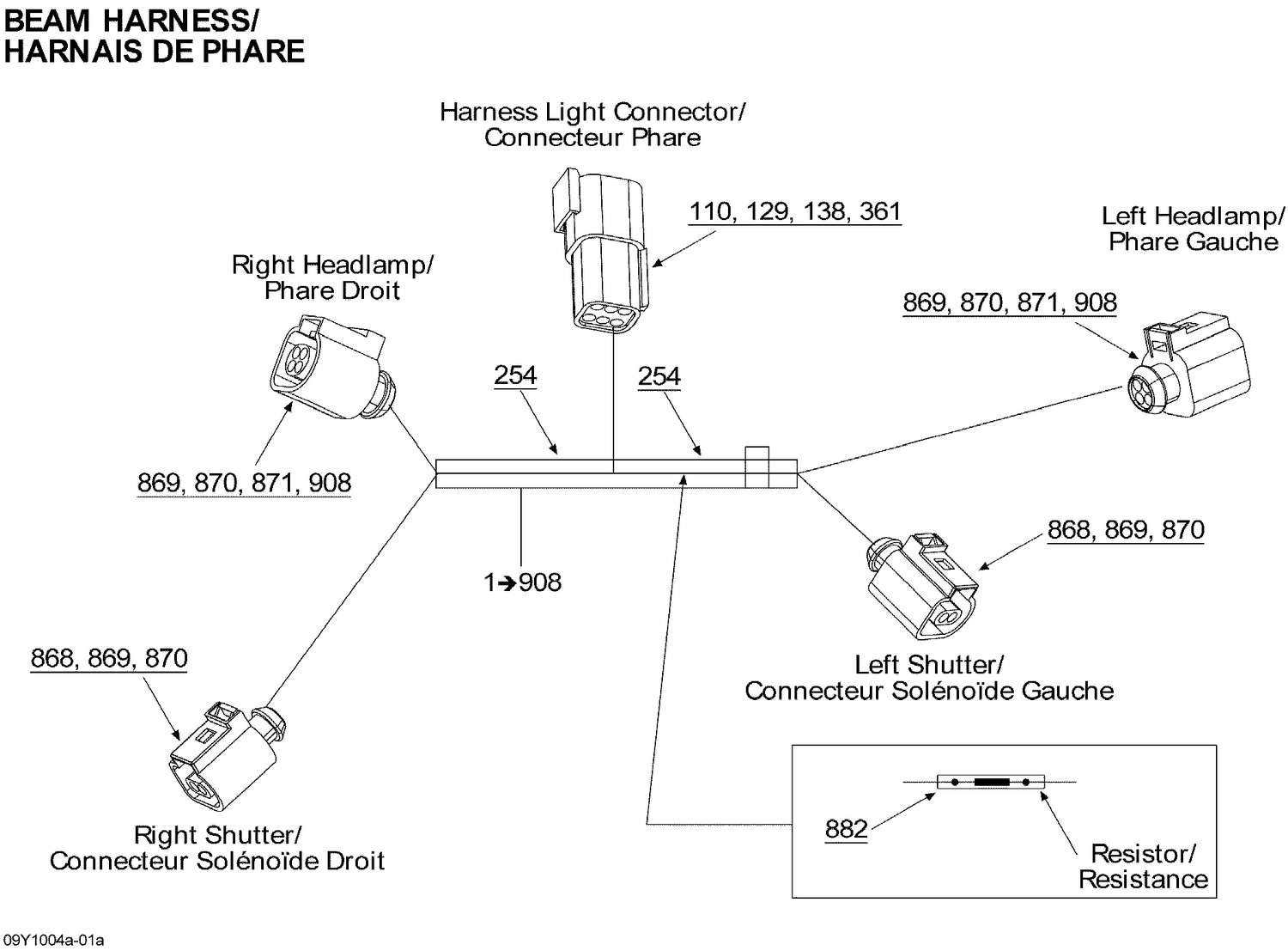

10- Beam Harness
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 110 | 278000631 | Male Terminal |
| 129 | 278000735 | Female Lock, 6 Circuits |
| 138 | 293000052 | Sealing Cap |
| 254 | 219704399 | Was 409901700 Tubing (9 mm) |
| 361 | 515175668 | Male Terminal Housing, 6 Circuits |
| 868 | 710001184 | Housing |
| 869 | 710001185 | FEMALE TERMINAL - Call your local BRP dealership |
| 870 | 710001186 | SEAL-WIRE - Call your local BRP dealership |
| 871 | 710001187 | HOUSING - Call your local BRP dealership |
| 882 | 710001205 | RESISTOR - Call your local BRP dealership |
