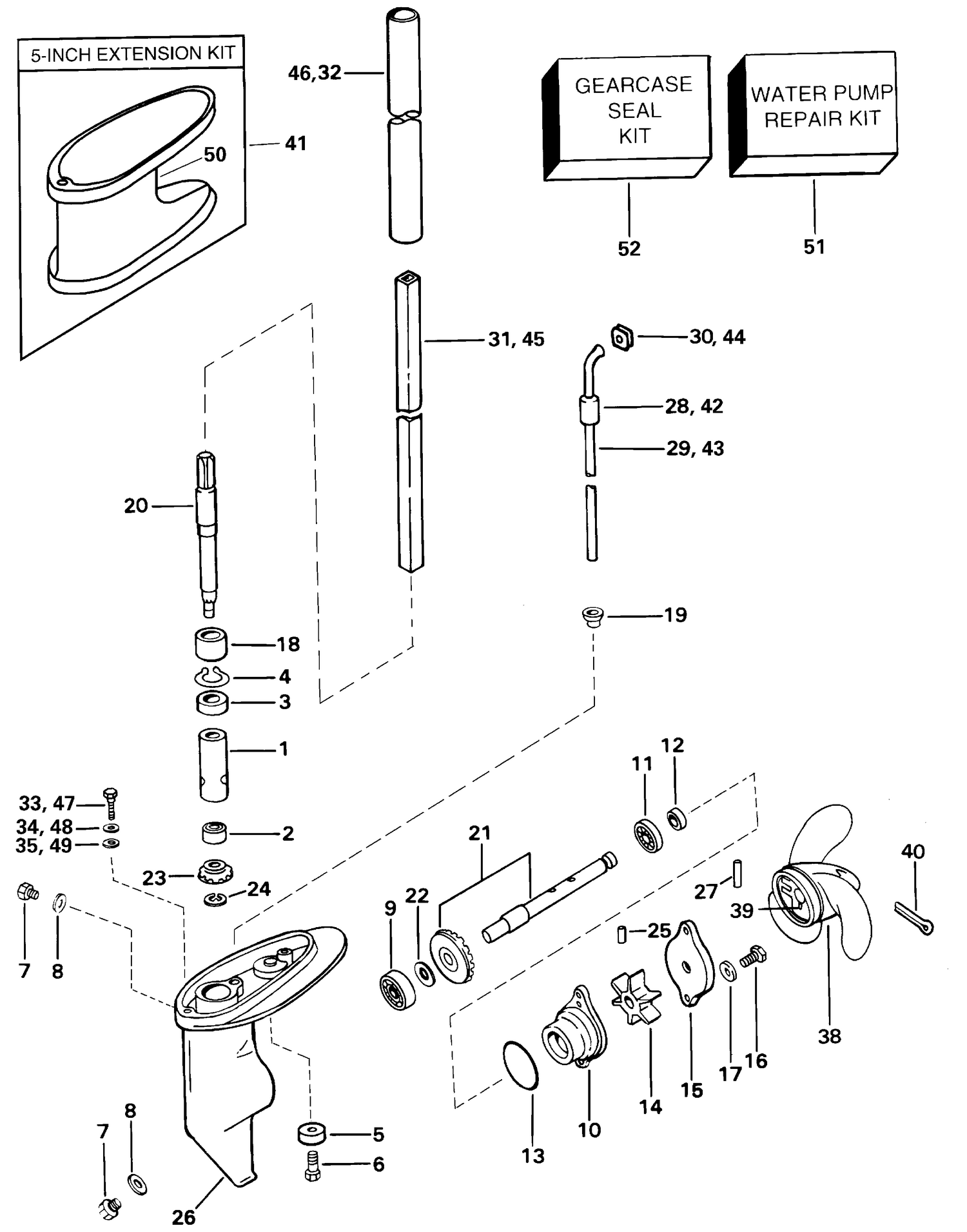

GEARCASE - 2RT - RTV - 3RTL
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 27 | 0115193 | DRIVE PIN |
| 29 | 0115217 | WATER TUBE |
| 30 | 0115218 | BAGUE, tube à eau |
| 31 | 0115207 | TRANSMISSION SHAFT |
| 32 | 0115216 | TUBE, Driveshaft |
| 34 | 0115215 | RONDELLE ÉLASTIQUE,vis du boîtier d'engrenages |
| 38 | 0114848 | PROPELLER, 7 1/2 in. x 6 in. |
| 38 | 0115208 | PROPELLER, 7 1/2 in. x 4 1/2 in. |
| 40 | 0115192 | COTTER PIN |
| 40 | 0313693 | COTTER PIN |
| 51 | 0114832 | WATER PUMP REPAIR KIT |
