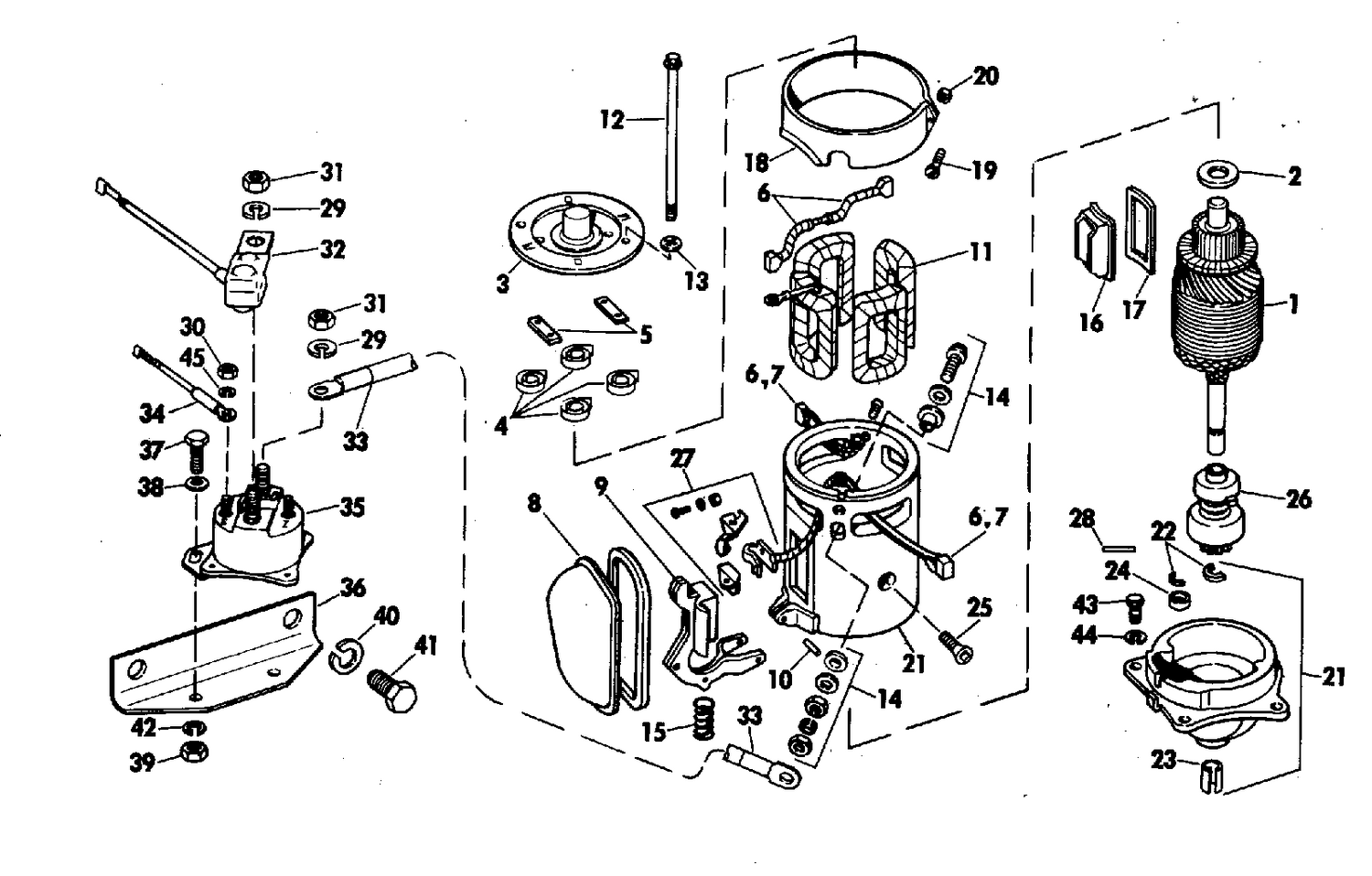

| Ref | Part Number | Description |
|---|
| 2 |
C0DZ-11036-A |
ASHER, Arm, thrust, abs |
| 2 |
C6VY-11036-A |
WASHER, Arm thrust, steel |
| 3 |
C3OZ-11049-A |
PLATE & BUSHING |
| 4 |
D1AZ-11059-A |
SPRING, Brush |
| 5 |
C9AZ-11062-A |
INSULATOR, Brush holder |
| 6 |
C0DZ-11057-B |
BRUSH SET |
| 7 |
0011056 |
BRUSH, Non-insulated |
| 8 |
C0DZ-11060-C |
COVER, Plunger |
| 9 |
C0DF-11067-B |
LEVER, Drive |
| 10 |
73266-S |
LEVER PIN |
| 11 |
C6VY-11082-A |
COIL FIELD, Complete |
| 12 |
C3AZ-10120-A |
THRU BOLT |
| 13 |
34905-57(X97) |
LOCKWASHER, Thru bolt |
| 14 |
C0DZ-11102-C |
TERMINAL FIELD KIT |
| 15 |
C1VF-11103-A |
SPRING, Plunger return |
| 16 |
C0DF-11106-A |
FLANGE, Coil retaining |
| 18 |
C2OZ-11126-A |
BAND, Cover |
| 19 |
27185-S2 |
SCREW, Band cover |
| 20 |
34079-S7 |
NUT, Band cover |
| 21 |
HOUSING |
KIT, Drive end |
| 22 |
C2DZ-11223-A |
RETAINER |
| 23 |
D0AZ-11135-B |
BEARING,Drive housing |
| 24 |
D2DZ-11222-A |
RING |
| 25 |
0010044 |
SCREW, Pole piece |
| 26 |
C6VY-11350-A |
DRIVE ASSEMBLY |
| 27 |
C2OZ-11134-B |
CONTACT POINT KIT |
| 28 |
0203897 |
ROLL PIN STARTER MOTOR |
| 31 |
0310755 |
LOCKWASHER, Solenoid term |
| 32 |
0981849 |
FUSE & LEAD ASSY This part replaces 0979788. |
| 33 |
0980582 |
LEAD ASSY, Solenoid |
| 34 |
0980583 |
LEAD ASSY, Solenoid |
| 35 |
0586842 |
SOLENOID This part replaces 0980801. |
| 36 |
0908752 |
BRACKET, Cyl block |
| 37 |
0300646 |
VIS, ancrage |
| 38 |
0329241 |
RONDELLE This part replaces 0306482. |
| 39 |
3852420 |
LOCKNUT, Throttle lever This part replaces 0900402. |
| 40 |
0303269 |
L'WASHER, Upper |
| 41 |
0311394 |
BOLT, Bracket to head |
| 43 |
0306414 |
SCREW |
| 44 |
0121025 |
CLIP,Contact retainer |
| 0980803 |
0980803 |
STARTING MOTOR ASSY |
