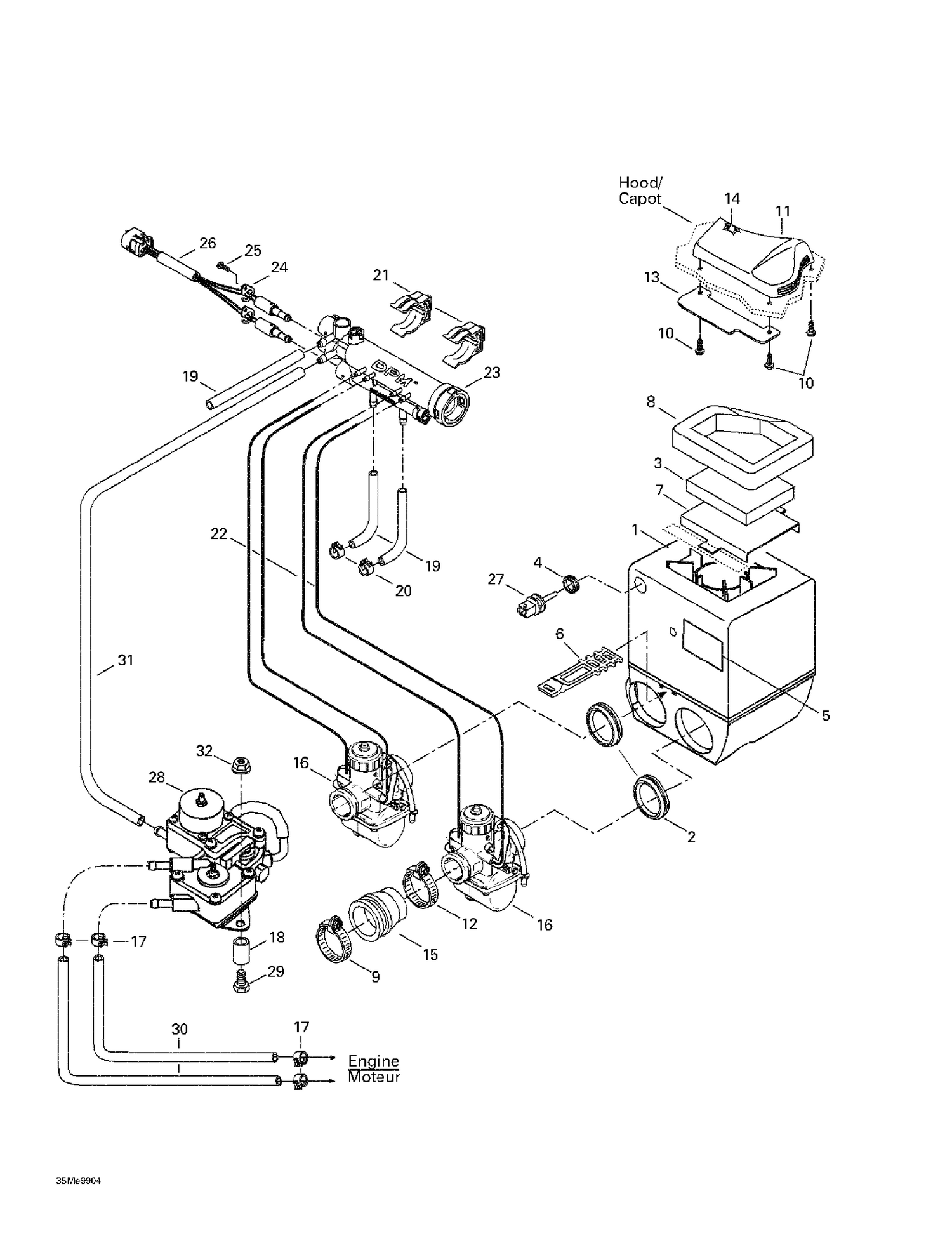

02- Air Intake System
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 415014800 | Air Filter |
| 5 | 516002715 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership This part replaces 516000130. |
| 6 | 570069700 | LATCH - Call your local BRP dealership |
| 7 | 517283900 | Grill Intake |
| 8 | 415105900 | Exterior Foam |
| 9 | 414532800 | Collar |
| 10 | 243141630 | Hex. Plastic Screw M4.8 X 16 This part replaces 732603009. |
| 11 | 572077900 | INTAKE COVER - Call your local BRP dealership |
| 14 | 414972600 | Air Filter |
