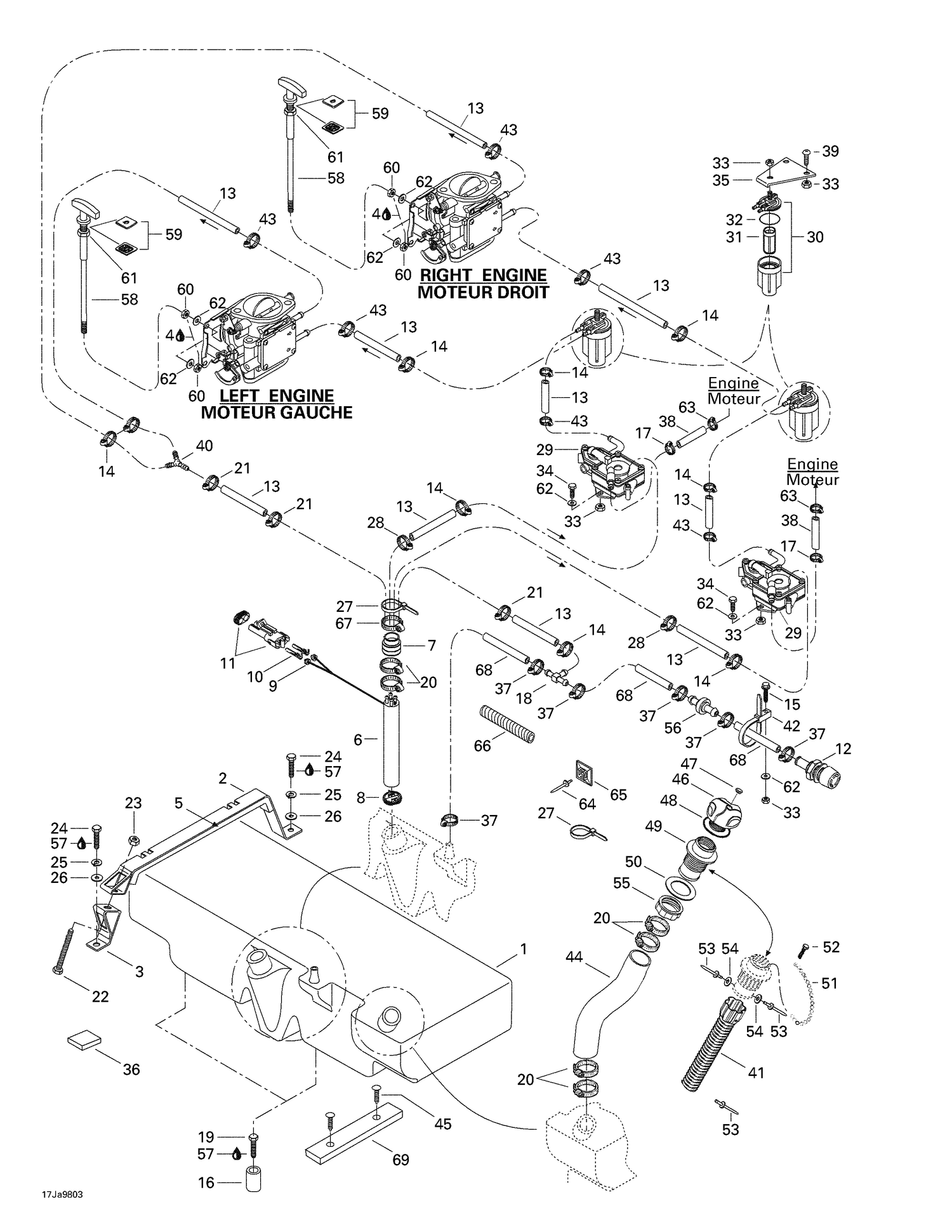

| Ref | Part Number | Description |
|---|
| 1 |
204560073 |
Fuel Tank, Plastic |
| 2 |
204560011 |
Fuel Tank Strap |
| 3 |
275500252 |
TANK BRACKET - Call your local BRP dealership |
| 4 |
Not |
Available As Spare Part - Loctite 220 |
| 5 |
204560037 |
Protector Pad |
| 7 |
204560066 |
Fuel Tube Adaptor |
| 8 |
275500397 |
FUEL FILTER - Call your local BRP dealership |
| 9 |
278000218 |
Wire Seal |
| 10 |
278000223 |
Female Terminal |
| 11 |
278000273 |
Male Housing, 3 Circuits |
| 12 |
275500206 |
VENT BOAT - Call your local BRP dealership |
| 13 |
204000068 |
Hose 6 mm |
| 14 |
293650088 |
Norma Clamp |
| 15 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership This part replaces 216363060. |
| 16 |
204560039 |
Rubber Bumper |
| 17 |
293650042 |
Oetiker Clamp |
| 18 |
204560038 |
T-Fitting |
| 19 |
208653560 |
Phillips Screw M5 X 35 This part replaces 215853568. |
| 20 |
293650023 |
Tridon Clamp |
| 21 |
293650059 |
Clic Clamp |
| 22 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership This part replaces 215085560. |
| 23 |
232581600 |
Hex. Elastic Nut M8 This part replaces 212000002. |
| 24 |
207182560 |
HEX. SCREW M8 X 25 - Call your local BRP dealership This part replaces 210000002. |
| 25 |
234181601 |
Lock Washer 8 mm, Stainless This part replaces 213000001. |
| 26 |
234082600 |
Flat Washer 8 mm, Stainless This part replaces 213200011. |
| 27 |
414115200 |
Tie-Rap 180 mm This part replaces 294000606. |
| 28 |
293650087 |
NORMA CLAMP - Call your local BRP dealership |
| 29 |
270500390 |
Fuel Pump |
| 31 |
275500089 |
FUEL FILTER - Call your local BRP dealership |
| 32 |
275500090 |
O-Ring |
| 33 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 34 |
207162060 |
Hex. Forming Screw M6 X 20 This part replaces 210000004. |
| 35 |
204560007 |
Fuel Filter Support |
| 36 |
204560027 |
Protecteur Pad |
| 37 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 38 |
219704396 |
HOSE-6MM. 5000MM LONG - Call your local BRP dealership |
| 39 |
211000003 |
Screw M6 x 16 |
| 40 |
293710059 |
Y-Fitting |
| 41 |
275500757 |
FILLER NECK, INTERIOR - Call your local BRP dealership This part replaces 275500067. |
| 42 |
293750017 |
Tie-Rap |
| 43 |
293650070 |
NORMA CLAMP - Call your local BRP dealership |
| 44 |
204560033 |
Filler Neck Hose |
| 45 |
293730006 |
Black, Dart |
| 47 |
293000034 |
Black, Snap Cap |
| 48 |
293250017 |
Gasket |
| 49 |
275500247 |
Filler Neck |
| 50 |
293250029 |
Gasket |
| 51 |
275500015 |
Oil Cap Chain |
| 52 |
241140060 |
Screw K40 X 10 This part replaces 211000028. |
| 53 |
293150057 |
Rivet 1/8” |
| 54 |
234032600 |
Flat Washer M3, Stainless This part replaces 213200018. |
| 55 |
211100012 |
Filler Neck Nut, Fuel |
| 56 |
204560074 |
Vent Line Surge Protector |
| 57 |
293800005 |
Loctite 271, 10 ml |
| 59 |
291000457 |
Choke Plate |
| 60 |
232160600 |
Hex. Nut M6 This part replaces 212100003. |
| 61 |
211100007 |
Hex. Nut |
| 62 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 63 |
293650170 |
Tridon Gear Clamp This part replaces 293650038. |
| 64 |
293150008 |
Pop Rivet 3/16" |
| 65 |
293750015 |
TIE RAP MOUNT - Call your local BRP dealership |
| 66 |
204560078 |
Vent Hose Protector |
| 67 |
293650077 |
Norma Clamp This part replaces 293650078. |
| 68 |
204560358 |
HOSE 16 MM - Call your local BRP dealership This part replaces 275500205. |
| 204250029 |
Choke |
Cable Ass'y R.H 204250029 |
| 204560015 |
Aluminum |
Fuel Tank 204560015 |
