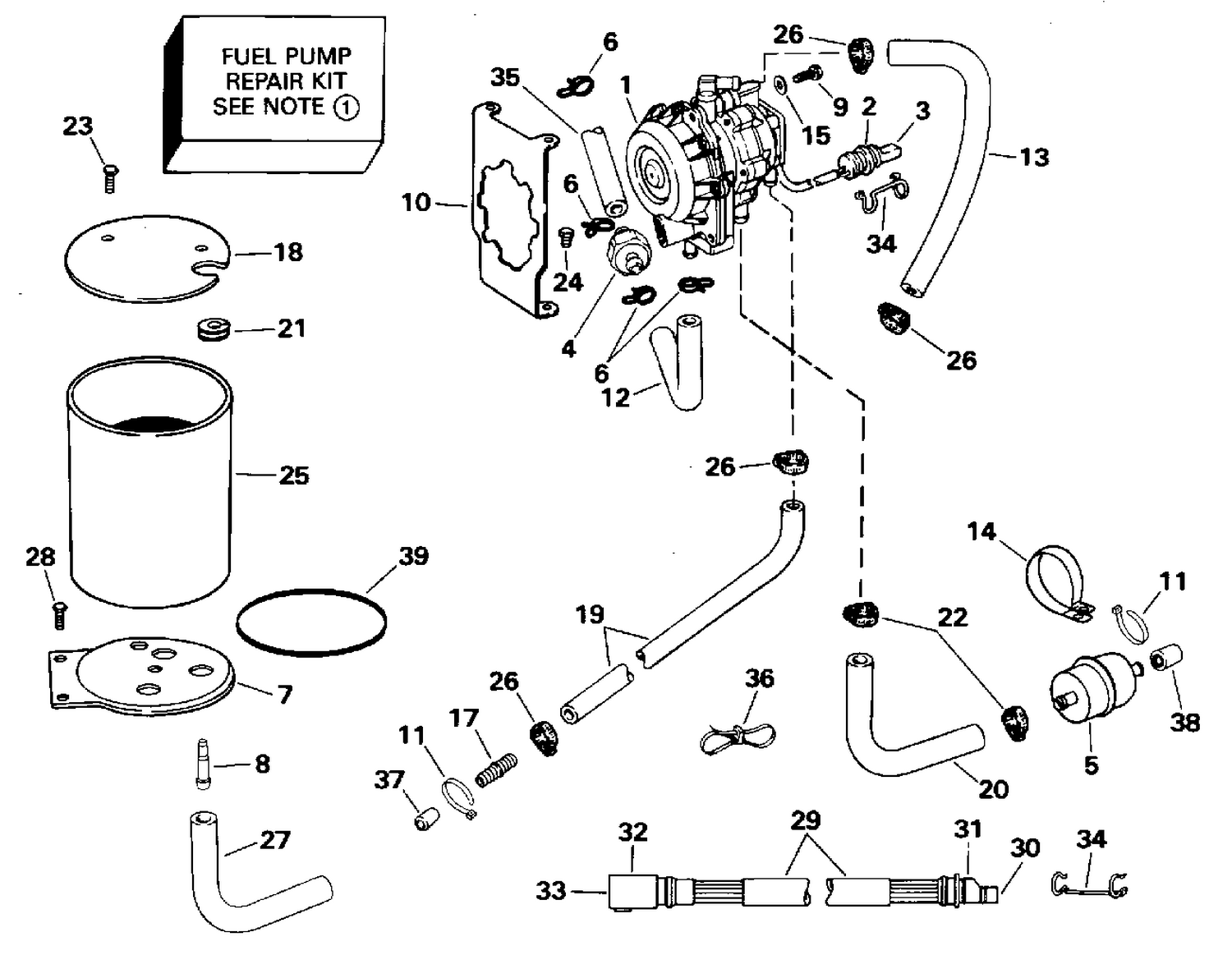

| Ref | Part Number | Description |
|---|
| 1 |
5007423 |
Kit Ay This part replaces 0436694. |
| 5 |
0436692 |
FUEL FILTER ASSY. |
| 6 |
0339277 |
CLAMP, Exh back pressure hose |
| 7 |
0436730 |
BASE & NIPPLE ASSY., Fuel pump |
| 10 |
0340176 |
BRACKET, Fuel pump mntg. |
| 11 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 12 |
PULSE |
HOSE, 14 in. (356mm) |
| 13 |
HOSE, |
Pump to lower carb. fuel tee, 31 in. (7 5mm) |
| 14 |
0340460 |
CLAMP, Filter to cover |
| 17 |
0340428 |
CONNECTOR, Oil hose |
| 18 |
0340210 |
COVER, Heat sheild |
| 19 |
HOSE, |
Oil connector to pump, 26 in. (660mm) |
| 20 |
HOSE, |
Filter to fuel pump, 21 in. (530mm) |
| 21 |
0340326 |
GROMMET, Heat shield cover |
| 24 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 25 |
0340209 |
HEAT SHIELD |
| 26 |
0340328 |
CLAMP |
| 27 |
HOSE, |
Pump base to intake manifold, 13 1/2 i . (345mm) |
| 29 |
0586066 |
CABLE ASSY., Extension This part replaces 0585043. |
| 34 |
0512743 |
DISPOSITIF DE RETENUE |
| 35 |
HOSE, |
Pulse limiter to bypass cover, 3 in. (7 mm) |
| 38 |
0331649 |
CAP, Connector - fuel |
