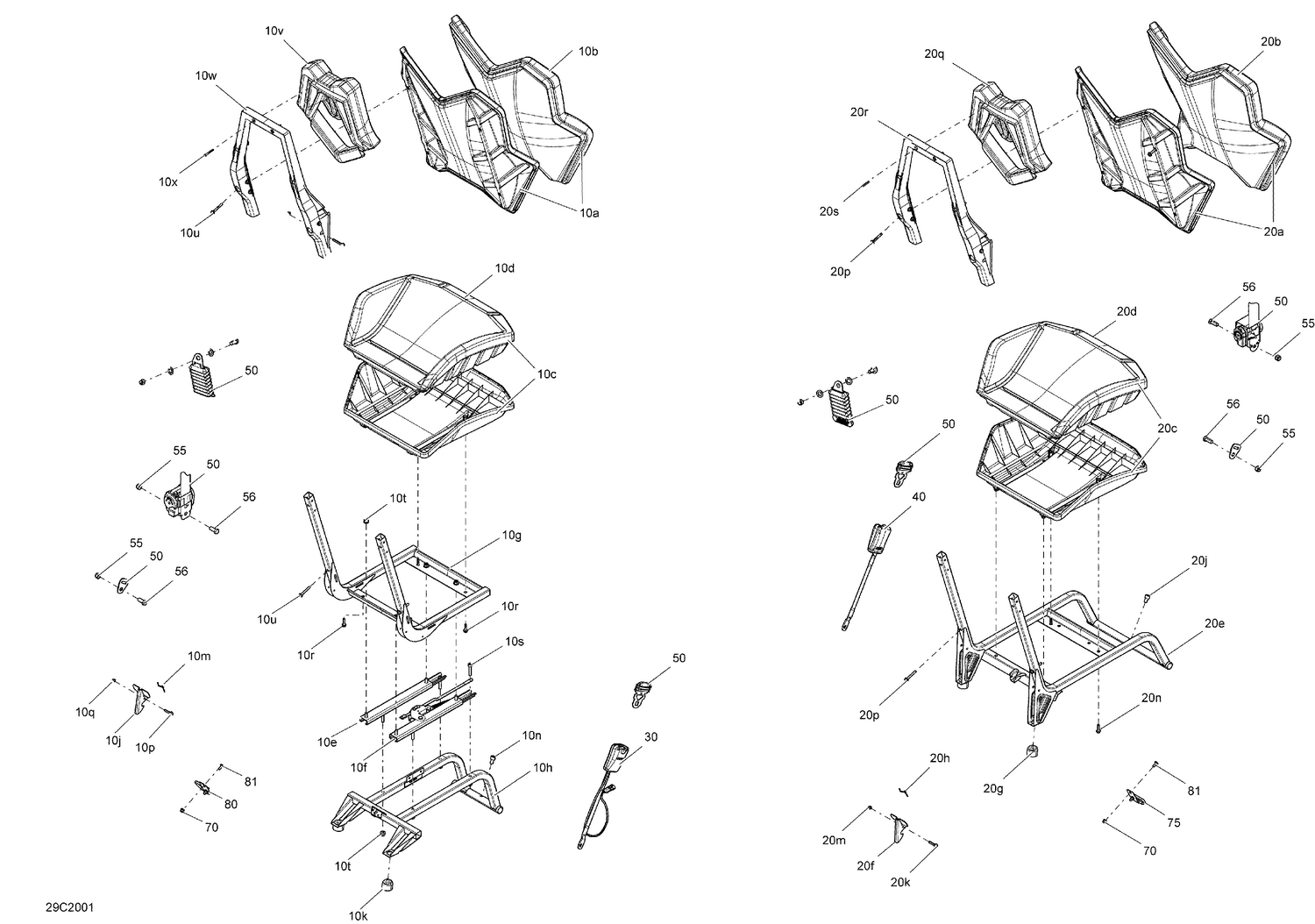

09- Seat
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 20b | 708000675 | Backrest Cover |
| 20d | 708001103 | Seat Cover |
| 20e | 708001357 | Passenger Seat Frame |
| 20f | 708001355 | Seat Latch |
| 20g | 708001671 | Rubber Bumper |
| 20h | 708000921 | Spring |
| 20j | 205501644 | Socket Screw M10 X 16 |
| 20k | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 20m | 232561600 | Hex. Elastic Stop Nut M6 |
| 20n | 207562544 | Hex. Flange Screw M6 X 25 |
| 20q | 708001074 | Head Rest |
| 20r | 708001245 | Seat Support |
| 20s | 250000897 | Hex. Flange Screw K50 X 40 This part replaces 250000897. |
| 30 | 708002061 | Driver Buckle Side |
| 40 | 708002062 | Passenger Buckle Side |
| 50 | 708002644 | Safety Belt |
| 55 | 250100135 | Nylon Insert Hex. Lock Nut 7/16-20 |
| 56 | 250000521 | Hex. Cap Screw 7/16'' X 1'' |
| 70 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 75 | 708002303 | Retaining Rod RH |
| 80 | 708002302 | Retaining Rod LH |
| 81 | 250000717 | Torx Head Screw M6 X 16 |
