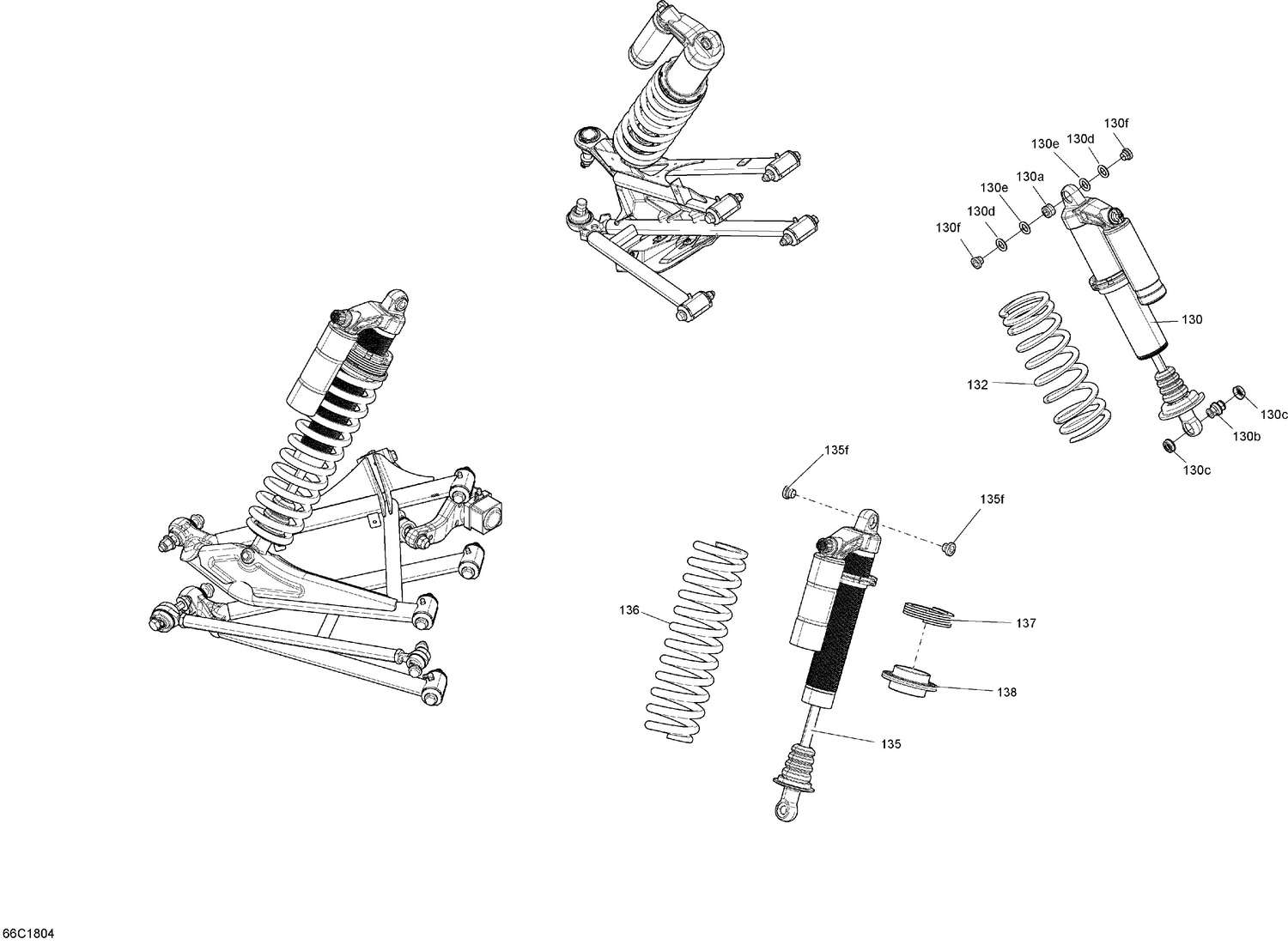

07- Shocks Maverick - Package XC
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 130a | 715900266 | Spherical Bearing |
| 130b | 715900330 | Spherical Bearing |
| 130c | 715900331 | Protector |
| 130d | 715900268 | O-Ring Bushing |
| 130e | 715900252 | Retaining Ring |
| 130f | 715900267 | Internal Bushing |
| 132 | 706202720 | FRONT SPRING - Call your local BRP dealership |
| 135a | 715900266 | Spherical Bearing |
| 135b | 715900330 | Spherical Bearing |
| 135c | 715900331 | Protector |
| 135d | 715900268 | O-Ring Bushing |
| 135e | 715900252 | Retaining Ring |
| 135f | 715900267 | Internal Bushing |
