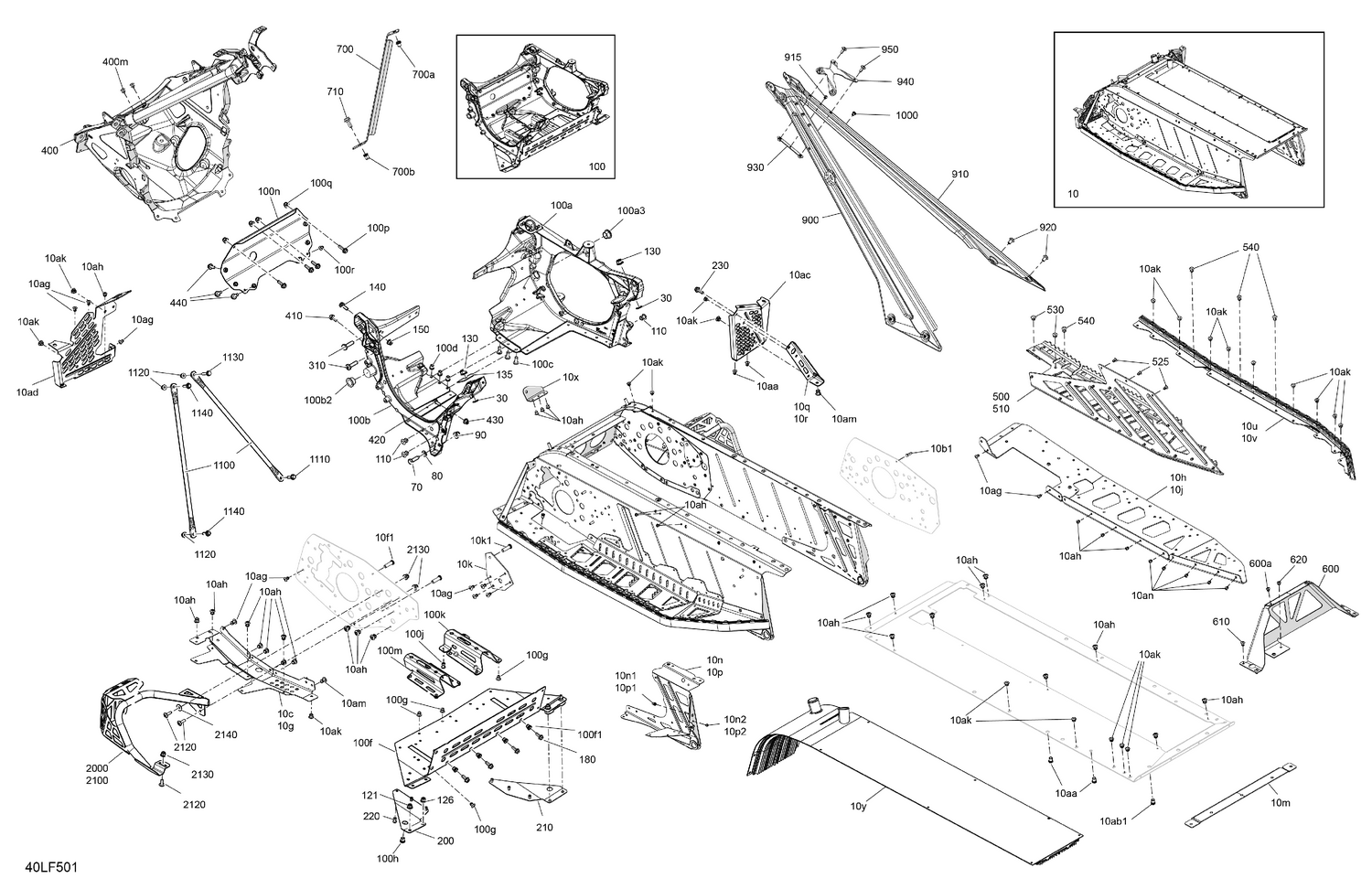

| Ref | Part Number | Description |
|---|
| 10aa |
605636003 |
Clinch Nut M6 Hexsert |
| 10ab1 |
605636003 |
Clinch Nut M6 Hexsert |
| 10ac |
518335233 |
RH Footrest Reinforcement |
| 10ad |
518336591 |
LH Footrest Reinforcement |
| 10ag |
390909100 |
Avex Rivet |
| 10ah |
390909200 |
Avex Rivet |
| 10ak |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10am |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 10an |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10b1 |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518335103 |
LH Footrest Reinforcement Kit |
| 10f1 |
250300027 |
Clinch Stud M6 X 20 |
| 10g |
518335104 |
LH Footrest Reinforcement Kit |
| 10h |
518336472 |
LH Footrest Reinforcement RS |
| 10j |
518336473 |
RH Footrest Reinforcement RS |
| 10k1 |
250300027 |
Clinch Stud M6 X 20 |
| 10m |
518335110 |
Reinforcement |
| 10n1 |
605636003 |
Clinch Nut M6 Hexsert |
| 10n2 |
390909200 |
Avex Rivet |
| 10p1 |
605636003 |
Clinch Nut M6 Hexsert |
| 10p2 |
390909200 |
Avex Rivet |
| 10q |
518335231 |
LH Chassis Reinforcement |
| 10r |
518335232 |
RH Chassis Reinforcement |
| 10u |
518335116 |
RH Footstep |
| 10v |
518335115 |
LH Footstep |
| 10x |
518332093 |
E-Mod Bracket  |
| 10y |
518331680 |
Radiator Tunnel |
| 30 |
506151252 |
Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505073317 |
Leg Cushion |
| 100b2 |
505073317 |
Leg Cushion |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f1 |
605636003 |
Clinch Nut M6 Hexsert |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
293150163 |
Rivet Hucklok |
| 100k |
518329814 |
RH Cross Link |
| 100m |
518333927 |
LH Central Cross Member Support |
| 100n |
518330100 |
Front Member |
| 100p |
250000945 |
Hex. Flange Screw M6 X 25 |
| 100q |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100r |
390909100 |
Avex Rivet |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 121 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 126 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 135 |
518331826 |
Plate RS EMOD |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 200 |
518331245 |
LH Under Reinforcement |
| 210 |
518331246 |
RH Under Reinforcement |
| 220 |
293150163 |
Rivet Hucklok |
| 230 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400m |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 420 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 440 |
207661636 |
Hex. Flange Screw M6 X 16 |
| 500 |
518336438 |
Platinum Silver Satin, LH Chassis Reinforcement |
| 510 |
518336439 |
Platinum Silver Satin, RH Chassis Reinforcement |
| 525 |
390909100 |
Avex Rivet |
| 530 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 540 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 600a |
390909200 |
Avex Rivet |
| 610 |
390909100 |
Avex Rivet |
| 620 |
390909200 |
Avex Rivet |
| 700a |
293450267 |
Insert M5 - 0.8 |
| 700b |
605636003 |
Clinch Nut M6 Hexsert |
| 710 |
207661634 |
Hex. Flange Screw M6 X 16 |
| 900 |
518337019 |
Deep Black, LH Rear Diagonal Cross Member |
| 910 |
518337021 |
Deep Black, RH Rear Diagonal Cross Member |
| 915 |
390909200 |
Avex Rivet |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 930 |
518336902 |
Retaining Plate |
| 940 |
518335672 |
Bent Brace |
| 950 |
250000717 |
Torx Head Screw M6 X 16 |
| 1000 |
293450267 |
Insert M5 - 0.8 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207562034 |
Hex. Flange Screw M6 X 20, Scotch Grip |
| 1120 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 1130 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 2000 |
518335098 |
RH Driver Footrest Kit |
| 2100 |
518335097 |
LH Driver Footrest Kit |
| 2120 |
250000722 |
Torx Truss Screw M6 x 20 |
| 2130 |
233261466 |
Hex. Flanged Elastic Nut M6 |
