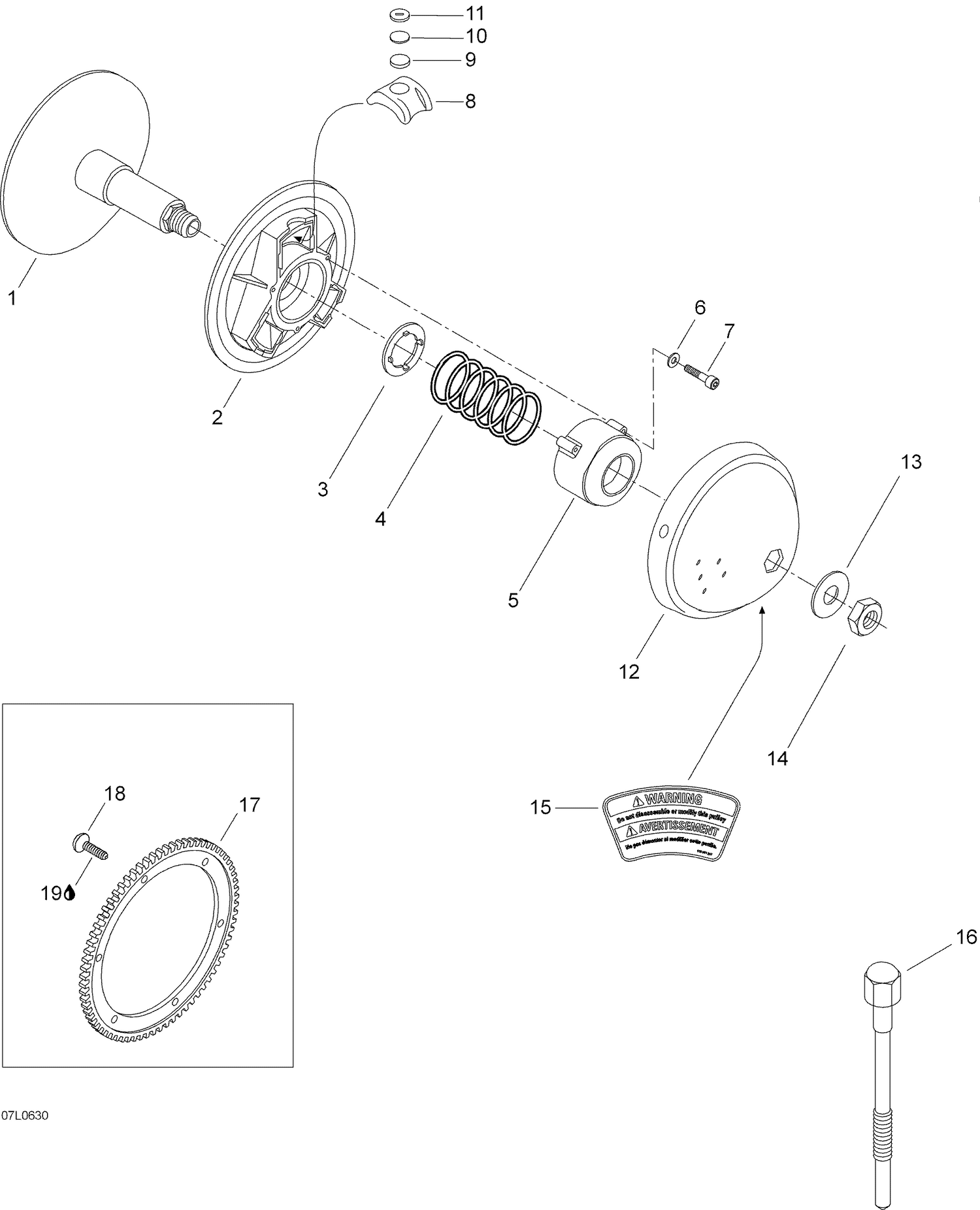

| Ref | Part Number | Description |
|---|
| 1 |
417126690 |
Fixed half pulley |
| 2 |
417126692 |
SLIDING FLANGE - Call your local BRP dealership |
| 3 |
417126694 |
SPRING SEAT - Call your local BRP dealership |
| 4 |
417126621 |
Spring, violet (blue/green) |
| 5 |
417126622 |
SPRING COVER - Call your local BRP dealership |
| 6 |
420245370 |
WASHER - Call your local BRP dealership |
| 7 |
205064086 |
Screw M6 x 40 |
| 8 |
417118100 |
CENTRIFUGE BLOCK - Call your local BRP dealership |
| 9 |
417120400 |
ADJUSTMENT WEIGH - Call your local BRP dealership |
| 10 |
417114400 |
ADJUSTMENT WEIGH - Call your local BRP dealership |
| 11 |
417114500 |
CAPSULE - Call your local BRP dealership |
| 12 |
417126696 |
Domed cup |
| 13 |
415128610 |
WASHER - Call your local BRP dealership |
| 14 |
417118300 |
NUT - Call your local BRP dealership |
| 15 |
516001726 |
Security label |
| 16 |
529031400 |
Puller inner half |
| 17 |
417300305 |
Ring gear |
| 18 |
236281684 |
Hex. Screw M8 X 16 |
