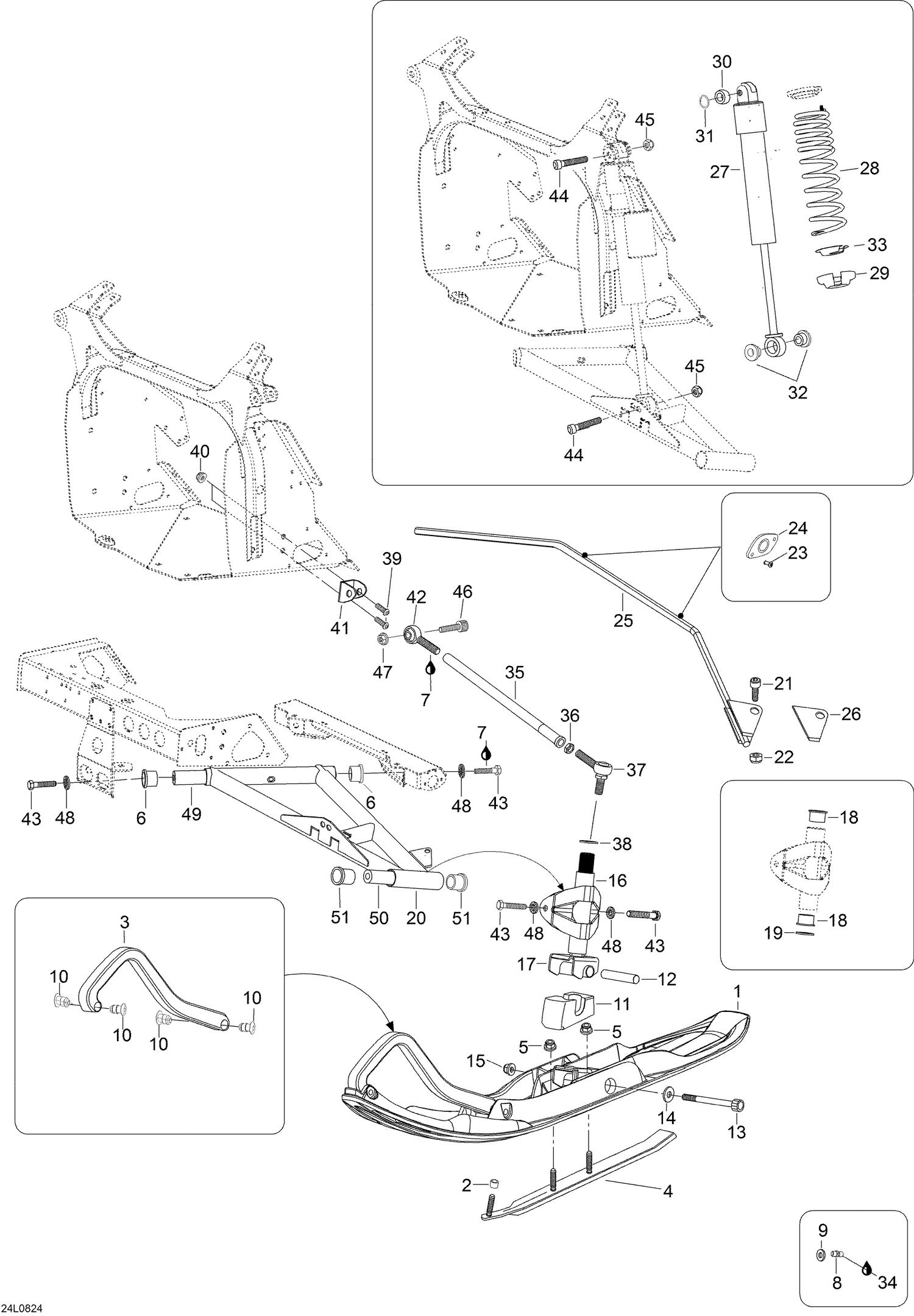

07- Front Suspension And Ski
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605153720 | CTRL-Ski |
| 2 | 605454185 | Sleeve |
| 3 | 505071556 | Plastic handle, Full Moon |
| 4 | 619400005 | RUNNER CARBIDE KIT - Call your local BRP dealership |
| 5 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 6 | 605631001 | Cushion |
| 7 | 293800060 | Liima Loctite 243, 10ml |
| 8 | 34011 | Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership |
| 9 | 20003 | Washer A6,4 |
| 11 | 570070400 | Stopper-ski |
| 12 | 506133300 | Spacer |
| 13 | 40391 | Socket head screw M10 x 130 |
| 14 | 20105 | Washer 10mm |
| 15 | 33074 | NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership |
| 16 | 605354276 | Skilegtube, Full Moon |
| 17 | 5245502 | Ski leg |
| 18 | 505070003 | Cushion |
| 19 | 505070004 | WASHER - Call your local BRP dealership |
| 20 | 605252085 | L.H. Lower arm |
| 20 | 605252086 | R.H. Lower arm |
| 21 | 605640001 | Socket head screw M8 x 35 |
| 22 | 33010 | Lock Nut M6 (1=10Pcs) |
| 23 | 36103 | Rivet |
| 24 | 605452484 | Bushing |
| 25 | 605252074 | Stabilisator |
| 26 | 605354025 | Slider |
| 27 | 23231 | Shock |
| 28 | 25078 | Spring |
| 29 | 230116 | Spring Stopper |
| 30 | 414562900 | RADIAL BALL-JOINT - Call your local BRP dealership |
| 31 | 371910600 | INTERIOR CIRCLIP - Call your local BRP dealership |
| 32 | 506120200 | BUSHING - Call your local BRP dealership |
| 33 | 230115 | Cap |
| 34 | 413711500 | SYNTHETIC GREASE - Call your local BRP dealership |
| 35 | 605352656 | Upper arm |
| 36 | 33036 | Nut M12 |
| 37 | 31092 | Ball joint |
| 38 | 20074 | Lock washer M12 |
| 39 | 40344 | Socket head screw M8 x 25 |
| 40 | 233281414 | Hex. Flange Elastic Nut M8 This part replaces 33201. |
| 41 | 605452346 | Bracket |
| 42 | 31095 | Ball joint |
| 43 | 605640002 | Hex. screw M10 x 40 |
| 44 | 40852 | Socket head screw M10 x 55 |
| 45 | 33012 | Elastic stop nut M10 |
| 46 | 40138 | Socket head screw M12 x 40 |
| 47 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 33013. |
| 48 | 20068 | Lock bricka 10mm |
| 49 | 605353783 | Shaft, lower arm |
| 50 | 605349897 | Shaft, lower arm |
| 51 | 31027 | Cushion |
