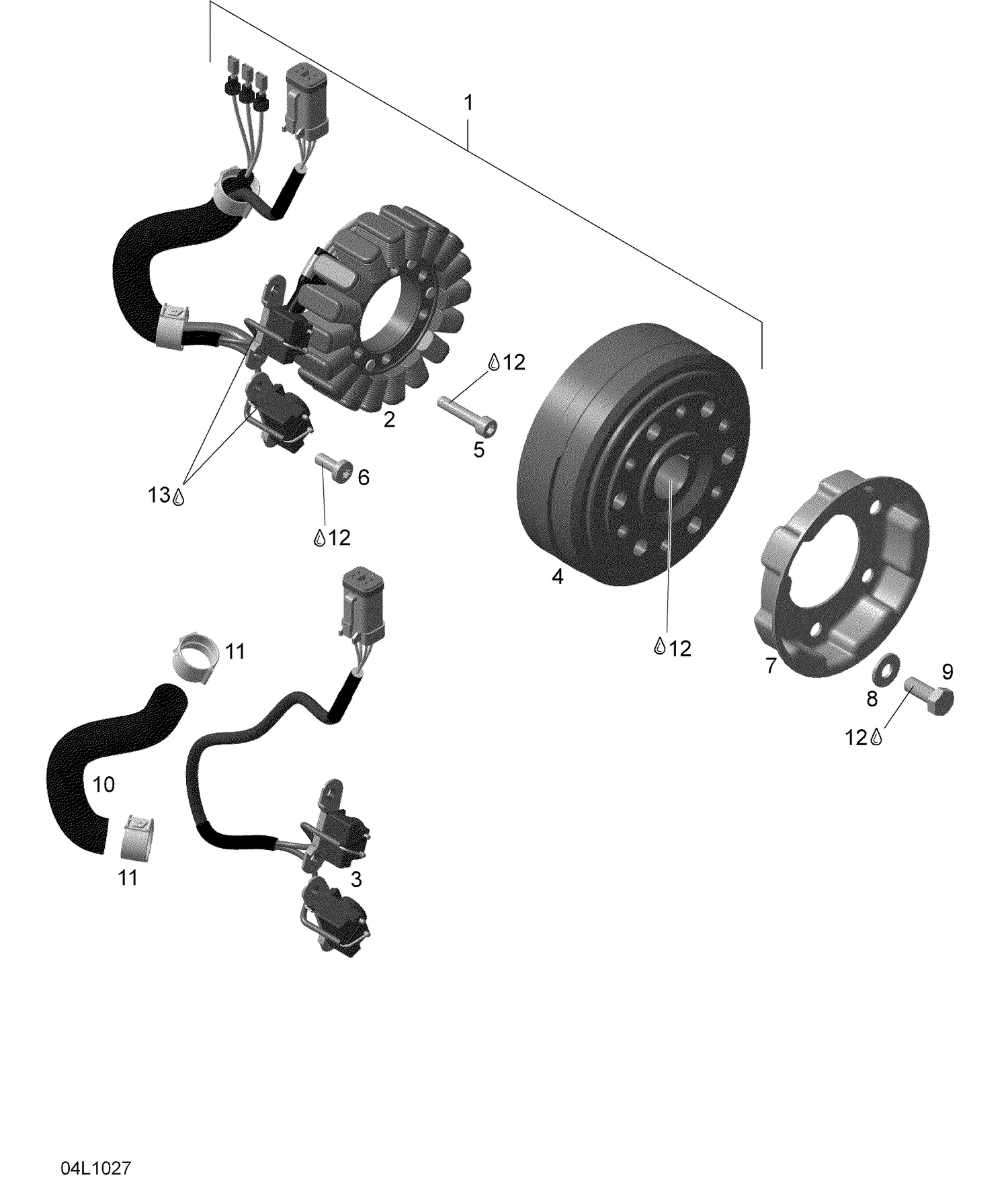

03- Magneto
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 420889904 | Stator with trigger assy This part replaces 420889909. |
| 3 | 410922948 | Pickup Ass'y |
| 4 | 420665723 | Flywheel |
| 5 | 205063044 | Socket Head Screw M6 X 30 |
| 6 | 420640324 | Torx Screw M6 X 16 This part replaces 420640321. |
| 7 | 420852533 | Starting Pulley This part replaces 420852532. |
| 8 | 420827405 | Flat Washer |
| 9 | 207181644 | Hex. Screw M8 x 16 |
| 10 | 420460871 | Tube |
| 11 | 420960896 | Conduit Clip |
| 12 | 293800060 | Loctite 243, 10 ml |
