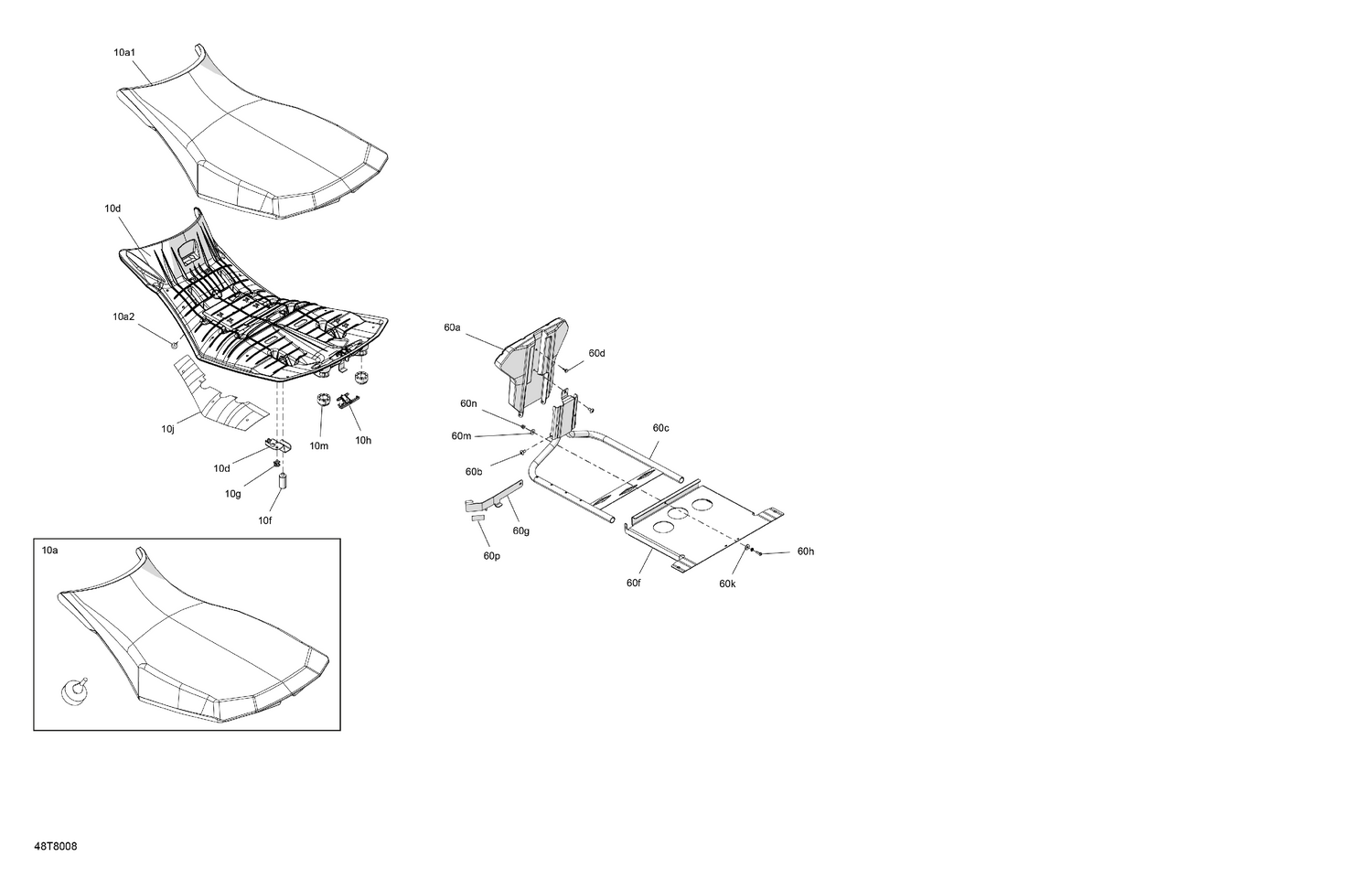

07- Body - Seat
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 10a1 | 605156558 | Seat Cover |
| 10a2 | 708000759 | Rubber Stopper |
| 10d | 510005988 | Support Rear Cushion |
| 10f | 605456546 | RUBBER DAMPER - Call your local BRP dealership |
| 10g | 293150067 | Rivet |
| 10h | 708000909 | Latch |
| 10j | 705005761 | HEAT SHIELD - Call your local BRP dealership |
| 10m | 708000760 | Bumper Rubber |
| 60a | 708001794 | Backrest |
| 60b | 250000675 | Torx Truss Screw M6 x 12 |
| 60c | 708001993 | T3 BACKREST PAINT - Call your local BRP dealership |
| 60d | 605454799 | Rubber |
| 60f | 708001991 | Rails |
| 60g | 708001820 | LOCK - Call your local BRP dealership |
| 60h | 250000652 | Socket Screw M5 X .80 X 16 |
| 60k | 250200024 | Rubber Washer 5 mm |
| 60m | 250200025 | Washer M5 |
| 60n | 233251494 | Elastic Flange Nut M5 |
