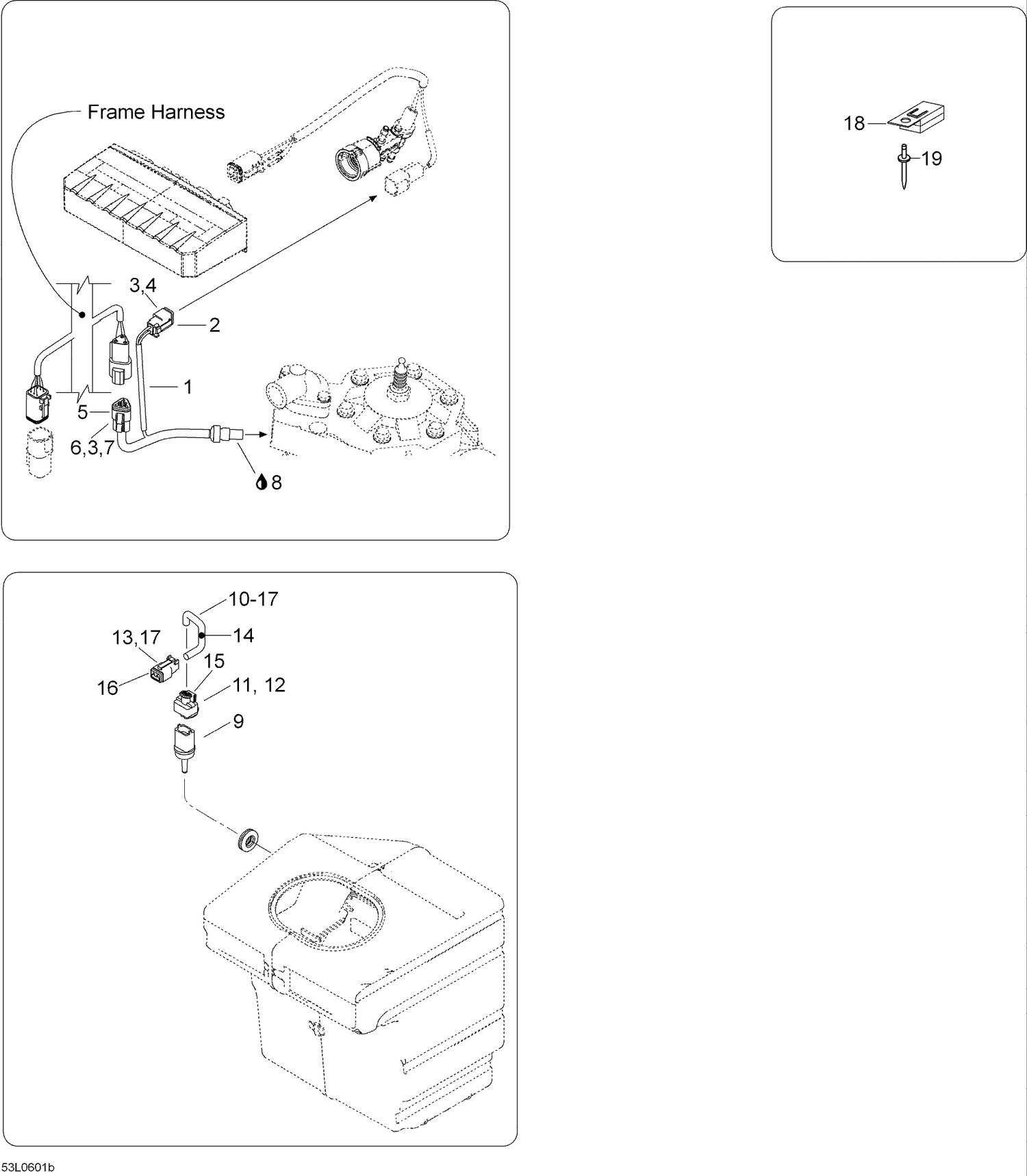

| Ref | Part Number | Description |
|---|
| 1 |
515176041 |
TEMPERATURE SENSOR - Call your local BRP dealership |
| 2 |
515175670 |
Female termina housing (2-circuits) |
| 3 |
278000632 |
Female terminal |
| 4 |
515175675 |
Female lock (2-circuits) |
| 5 |
515175671 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| 6 |
515175676 |
Female terminal (3-circuits) |
| 7 |
293000052 |
Sealing Cap |
| 8 |
293800018 |
SEALANT LOCTITE 592 - Call your local BRP dealership |
| 9 |
270600000 |
AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 11 |
278000998 |
Female terminal |
| 12 |
278000999 |
Seal |
| 13 |
278000632 |
Female terminal |
| 14 |
515175332 |
Tubing |
| 15 |
515175588 |
FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 16 |
515175670 |
Female terminal housing (2-circuits) |
| 17 |
515175706 |
Female lock (2-circuits) |
| 18 |
42272 |
Fuse holder |
