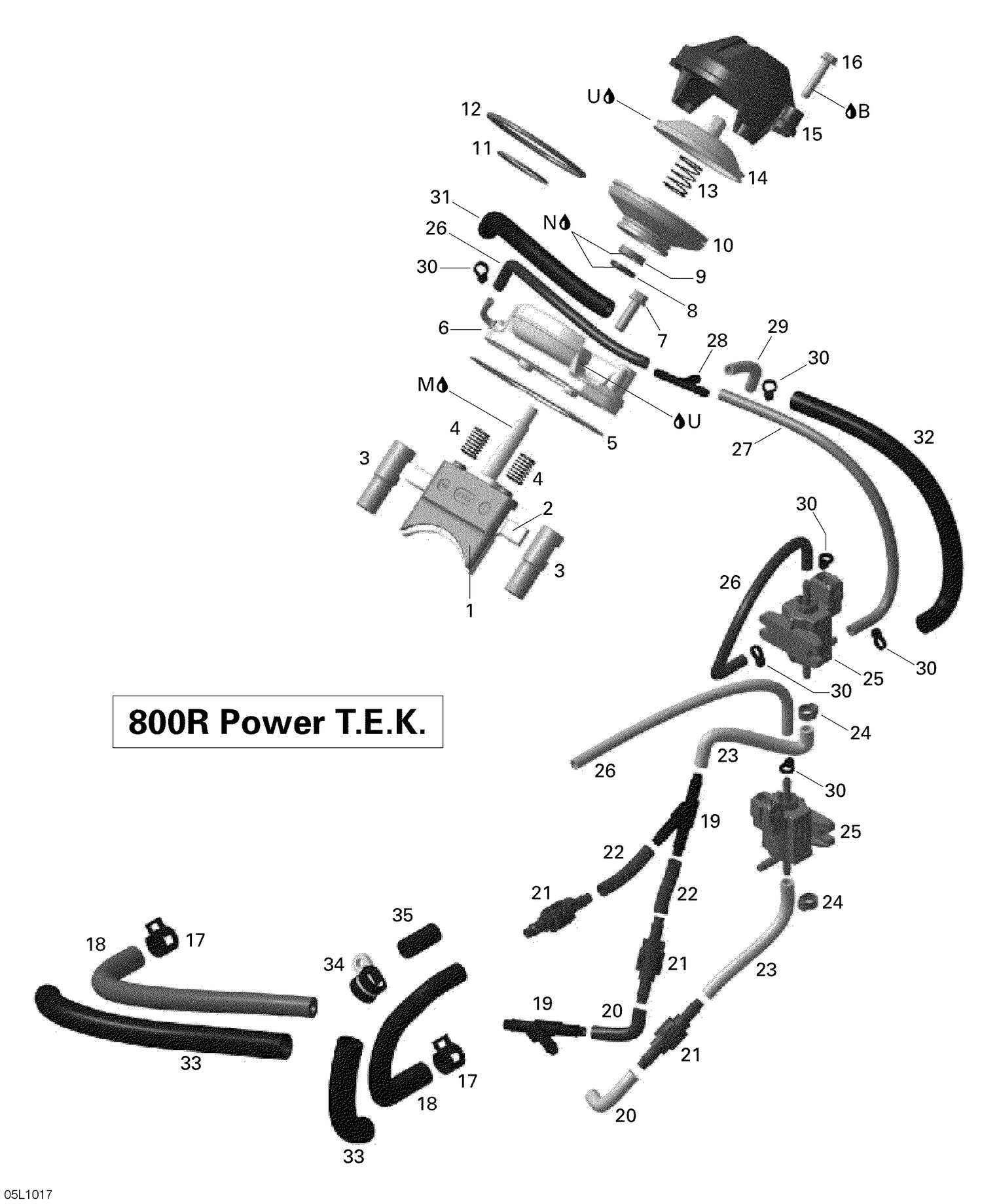

| Ref | Part Number | Description |
|---|
| B |
293800060 |
Loctite 243, 10 ml |
| M |
Not |
Available As Spare Part - Molykote G-N slide paste |
| N |
293550033 |
SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership |
| 1 |
420854900 |
Upper Exhaust Valve |
| 2 |
420854904 |
Lower Exhaust Valve This part replaces 420854908. |
| 3 |
420854890 |
Exhaust Valve |
| 4 |
420238558 |
Spring This part replaces 420238556. |
| 5 |
420430030 |
Gasket |
| 6 |
420854887 |
VALVE HOUSING - Call your local BRP dealership |
| 7 |
420440207 |
Flanged Torx Screw M6X20-SW8/T30 This part replaces 420440202. |
| 8 |
420431380 |
Gasket Ring |
| 9 |
420950732 |
Oil Seal This part replaces 420950730. |
| 10 |
420260725 |
Bellows This part replaces 420260724. |
| 11 |
420838255 |
Hose Spring |
| 12 |
420939286 |
Hose Spring This part replaces 420939285. |
| 13 |
420238557 |
Spring |
| 14 |
420854444 |
EXHAUST VALVE PISTON - Call your local BRP dealership |
| 15 |
420812710 |
Rave Cover |
| 16 |
420241271 |
Hex. Taptite Screw M5 X 25 This part replaces 420241270. |
| 17 |
420853511 |
Clamp |
| 18 |
420460782 |
MOLDED HOSE - Call your local BRP dealership |
| 19 |
293710059 |
T-Fitting This part replaces 420460635. |
| 20 |
420460851 |
HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership |
| 21 |
420660543 |
Check Valve |
| 22 |
420460855 |
HIGH PRESSURE AIR HOSE, 35 MM - Call your local BRP dealership |
| 23 |
420460856 |
HIGH PRESSURE AIR HOSE, 90 MM - Call your local BRP dealership |
| 24 |
420853658 |
Gear Clamp |
| 25 |
270600005 |
Solenoid Valve |
| 26 |
420660571 |
High Pressure Air Hose, 180 mm |
| 27 |
420660575 |
HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership |
| 28 |
293710068 |
T-Fitting |
| 29 |
420660572 |
HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership |
| 30 |
293750001 |
Tie-Rap 94 mm |
| 31 |
415079900 |
Tubing 10 mm |
| 32 |
415079900 |
Tubing 10 mm |
| 33 |
409901800 |
Tubing 13 mm |
| 34 |
420851250 |
Clamp |
| 35 |
409901800 |
Tubing 13 mm |
