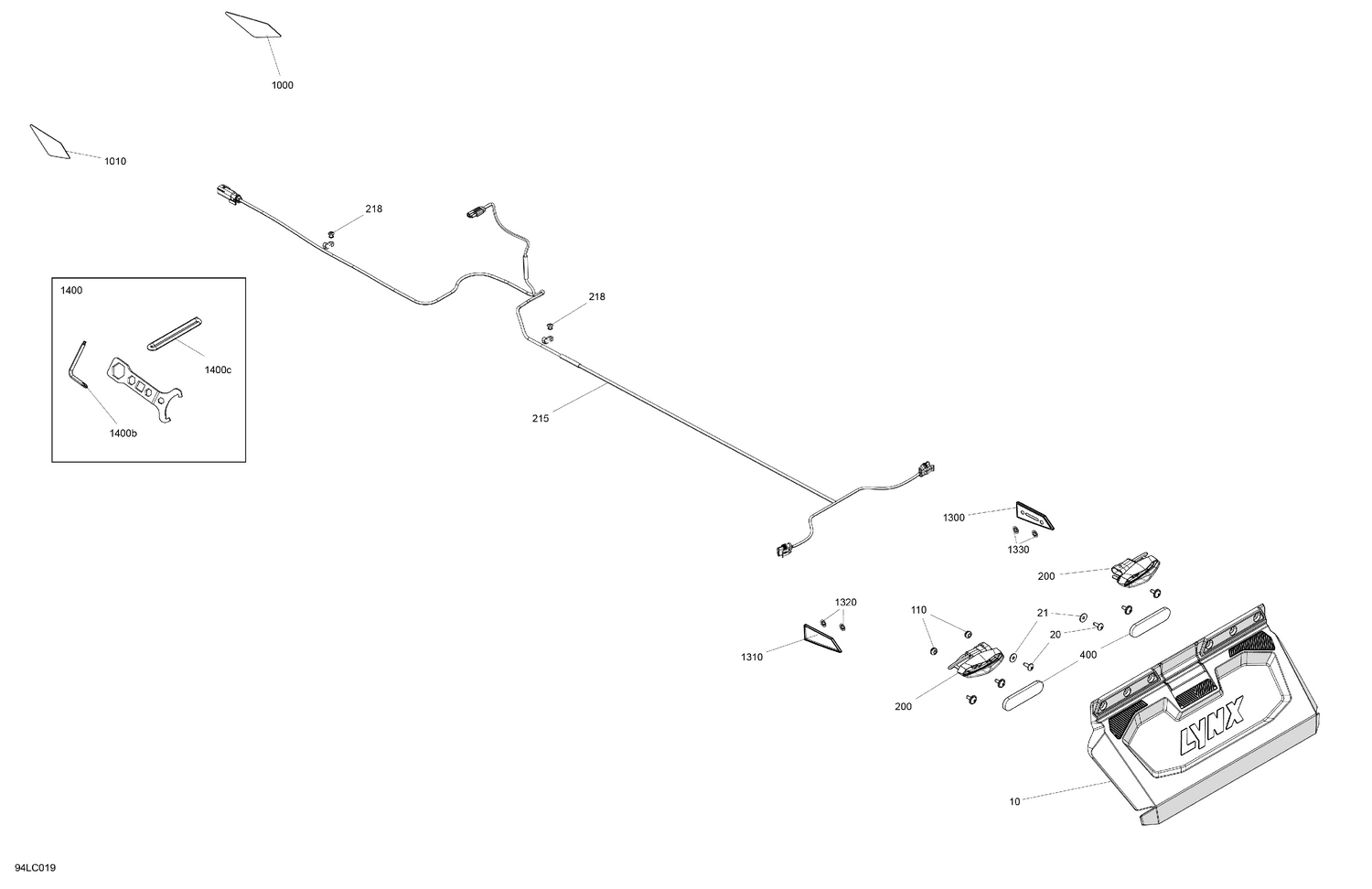

09- Miscellaneous - Utilities
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002262 | Snow Guard |
| 20 | 250000676 | Forming Screw M5 x 16 |
| 21 | 250200025 | Washer M5 |
| 110 | 293720101 | Grommet |
| 200 | 520001302 | Rear Light |
| 215 | 515178633 | Taillight Wiring Harness |
| 218 | 390402200 | Pop Rivet 3/16 |
| 400 | 705015551 | Red Reflector |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 520003528 | Amber, LH/RH Rear Reflector This part replaces 705016306. |
| 1310 | 705016307 | Yellow, LH Reflector |
| 1320 | 520002649 | RH Support Tape |
| 1330 | 520002650 | LH Support Tape |
| 1400b | 520001815 | Key |
