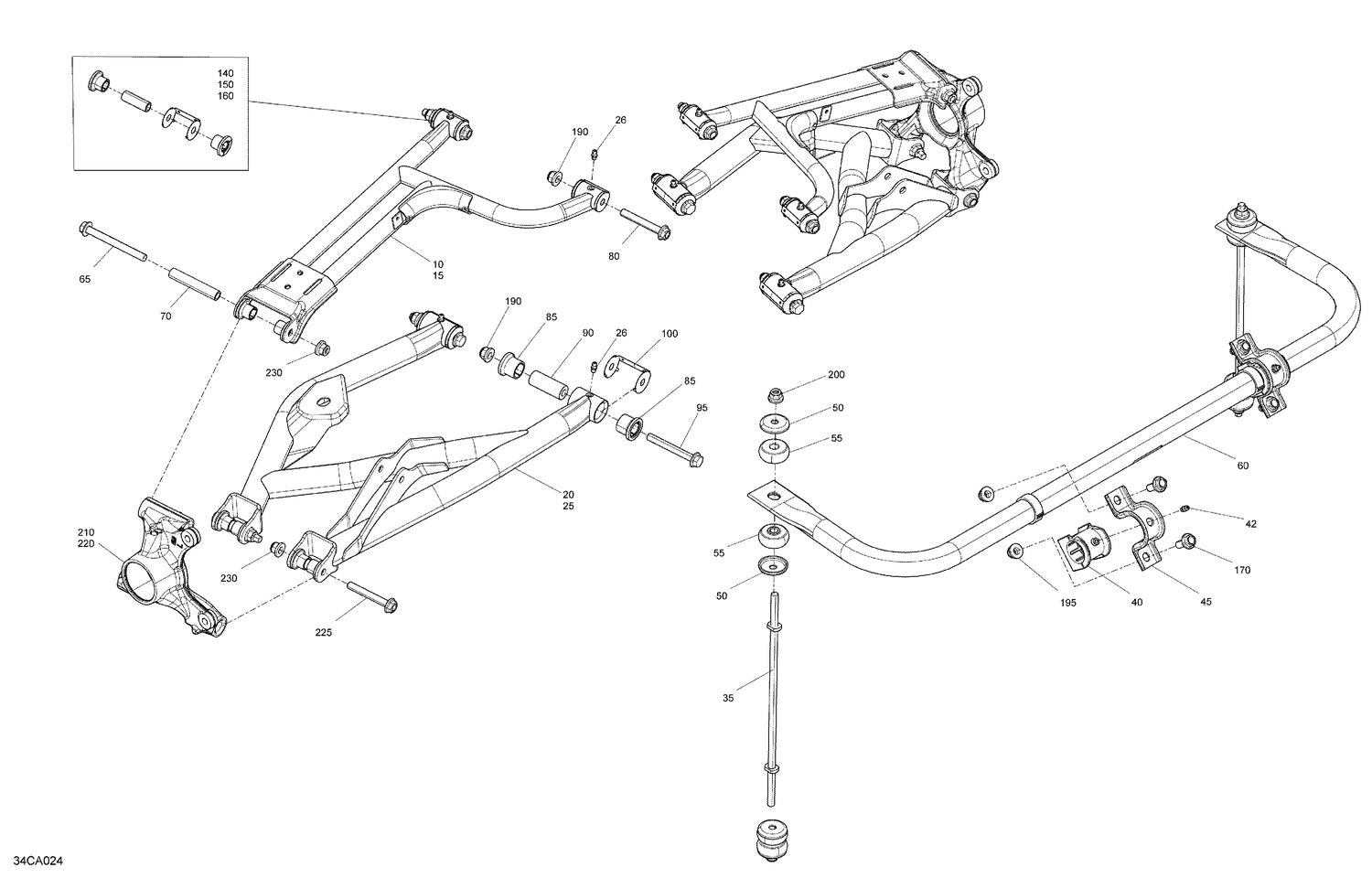

05- Suspension - Rear
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 26 | 408200700 | Grease Fitting |
| 35 | 706001898 | Torsion Bar Link |
| 40 | 706004301 | Stabilizer Bar Bushing |
| 42 | 408200700 | Grease Fitting |
| 45 | 706002592 | Clamp |
| 50 | 706005431 | Stamped Washer This part replaces 706002027. |
| 55 | 706002028 | Linkage Bushing |
| 60 | 706002813 | Swaybar Ass'y |
| 65 | 230600046 | Hex Flange Screw DIN.6921 - Call your local BRP dealership |
| 70 | 706202197 | Upper Bushing |
| 80 | 207607046 | Hex. Flange Screw M10 X 70 |
| 85 | 706204409 | Suspension Arm Bushing |
| 90 | 706201590 | Sleeve |
| 95 | 207608046 | Hex Flange Screw M10 X 80 |
| 100 | 706201660 | Wear Plate |
| 140 | 703500875 | Suspension Arm Bushing Kit |
| 150 | 703500875 | Suspension Arm Bushing Kit |
| 160 | 703500875 | Suspension Arm Bushing Kit |
| 170 | 207602544 | Hex. Flange Screw M10 X 25 |
| 190 | 233201436 | Hex. Flange Elastic Nut M10 |
| 195 | 233201436 | Hex. Flange Elastic Nut M10 |
| 200 | 233201436 | Hex. Flange Elastic Nut M10 |
| 205 | 233201436 | Hex. Flange Elastic Nut M10 |
| 210 | 706002809 | Rear Left Machined Knuckle |
| 220 | 706002811 | Rear Right Machined Knuckle |
| 225 | 207607046 | Hex. Flange Screw M10 X 70 |
