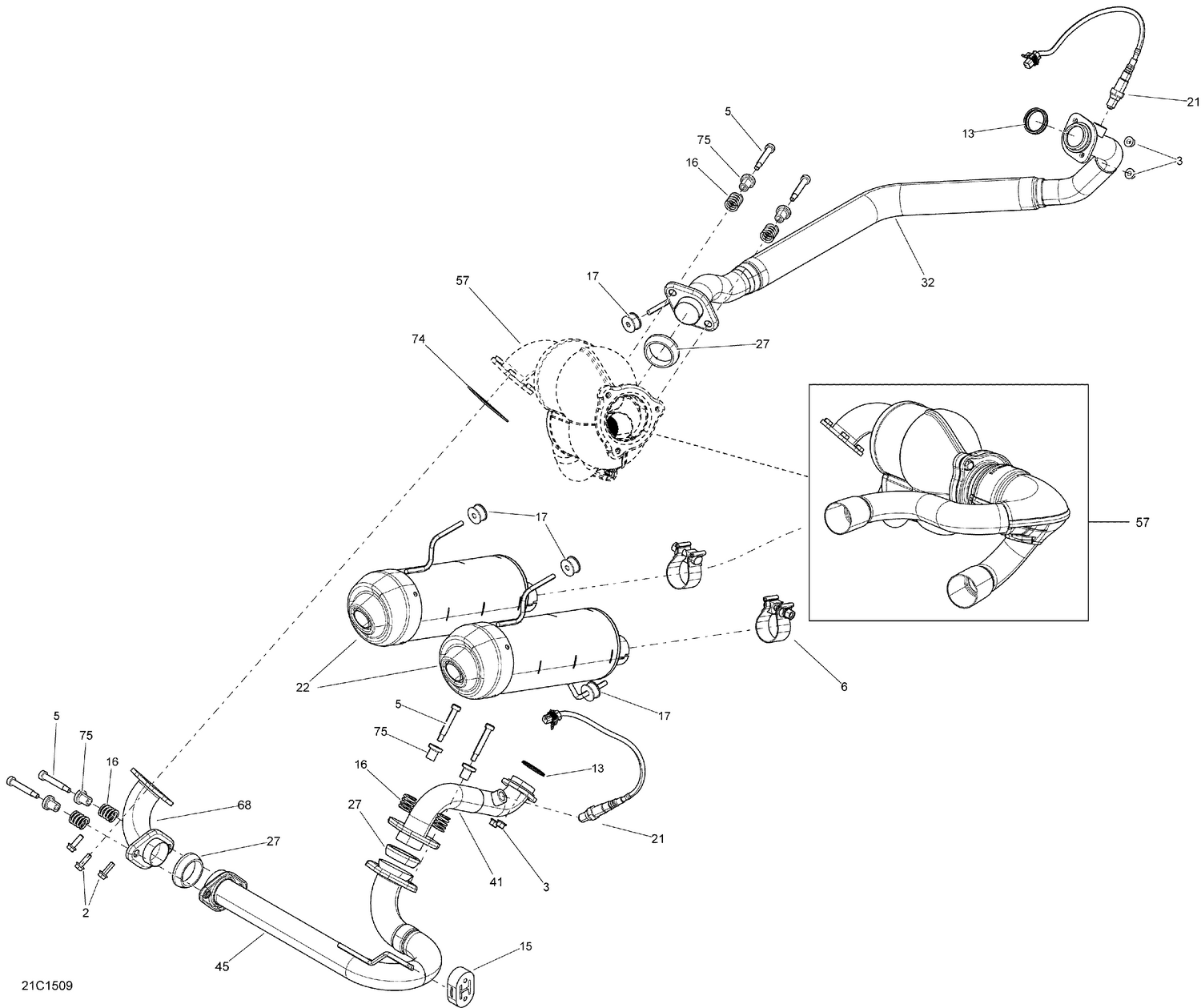

01- Exhaust System _21C1509
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207682544 | Hex. Flange Screw M8 X 25 |
| 3 | 233081416 | Hex. Flange Nut M8 |
| 5 | 250000658 | Socket Head Screw M10 X 50 |
| 6 | 293650231 | Gear Clamp |
| 13 | 707600317 | Gasket |
| 15 | 707600638 | Rubber Bumper |
| 16 | 707600682 | Spring |
| 17 | 707600702 | Anti-Vibration Rubber |
| 21 | 707600872 | Oxygen Sensor |
| 22 | 707601038 | Muffler |
| 27 | 707601128 | Seal |
| 32 | 707601210 | FRONT HEAD PIPE - Call your local BRP dealership |
| 41 | 707601213 | REAR HEAD PIPE - Call your local BRP dealership |
| 45 | 707601214 | PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 57 | 707601611 | RESONATOR SHELL - Call your local BRP dealership |
| 68 | 707601232 | PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 74 | 707601244 | SEAL - Call your local BRP dealership |
