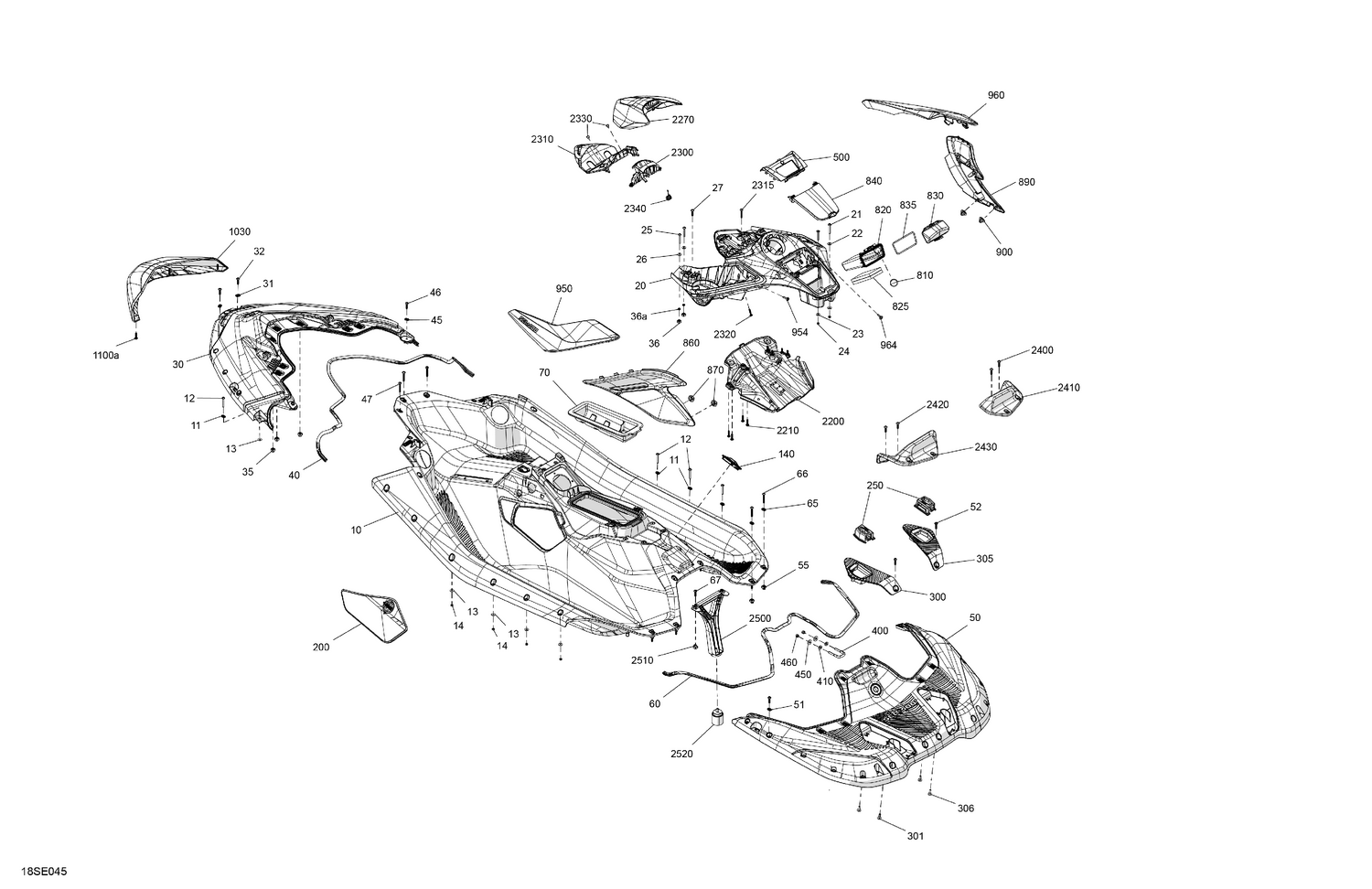

| Ref | Part Number | Description |
|---|
| 10 |
291005936 |
Deep Black, Central Deck |
| 11 |
291006387 |
Oval Washer |
| 12 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 13 |
234062600 |
Flat Washer M6, Stainless |
| 14 |
232561200 |
Brass Elastic Stop Nut M6 |
| 20 |
291005937 |
Deep Black, Console |
| 21 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 22 |
250200150 |
Flat Washer M6, Stainless |
| 23 |
234062600 |
Flat Washer M6, Stainless |
| 24 |
232561200 |
Brass Elastic Stop Nut M6 |
| 25 |
250000827 |
Torx Screw Truss Cone HD.M6X50 |
| 26 |
250200150 |
Flat Washer M6, Stainless |
| 27 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 30 |
291006382 |
Norther Lichen, Front Deck |
| 31 |
291006387 |
Oval Washer |
| 32 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 35 |
291003793 |
Insert |
| 36a |
232561200 |
Brass Elastic Stop Nut M6 |
| 40 |
293250608 |
Gasket |
| 45 |
291006387 |
Oval Washer |
| 46 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 47 |
250001283 |
Screw-Plastite Torx Cone M6.81X50 |
| 50 |
291006383 |
Norther Lichen, Rear Deck |
| 51 |
291006387 |
Oval Washer |
| 52 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 55 |
291003793 |
Insert |
| 60 |
293250609 |
Gasket |
| 65 |
291006387 |
Oval Washer |
| 66 |
250001283 |
Screw-Plastite Torx Cone M6.81X50 |
| 67 |
250001283 |
Screw-Plastite Torx Cone M6.81X50 |
| 70 |
291006167 |
Upper Access Cover Ass'y |
| 140 |
291006039 |
RH Rear Access Cover Ass'y |
| 200 |
291005940 |
LH Front Access Cover Ass'y |
| 250 |
295100858 |
Linq Bases Kit |
| 300 |
291005979 |
LH LINQ Support |
| 301 |
250000978 |
Hexagonal Cap Screw M6 X 25 |
| 305 |
291006029 |
RH LINQ Support |
| 306 |
250000978 |
Hexagonal Cap Screw M6 X 25 |
| 400 |
292000933 |
U-Clamp |
| 410 |
293050001 |
Flat Washer M8.5 x 18 |
| 450 |
234082600 |
Flat Washer 8 mm, Stainless |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 500 |
291006007 |
Deep Black, Console Panel |
| 810 |
269502324 |
USB Plug |
| 820 |
291006037 |
Storage Box |
| 825 |
264000159 |
Box Storage Foam |
| 830 |
291006028 |
Box Cover |
| 835 |
293250605 |
Gasket |
| 840 |
291006006 |
Deep Black, Box Cover |
| 860 |
291006384 |
Dazzling Blue, LH Knee Pad |
| 870 |
705018553 |
Oval Washer |
| 890 |
291006385 |
Dazzling Blue, RH Knee Pad |
| 900 |
705018553 |
Oval Washer |
| 950 |
291006271 |
Dazzling Blue, LH Body Panel |
| 954 |
250000978 |
Hexagonal Cap Screw M6 X 25 |
| 960 |
291006272 |
Dazzling Blue, RH Body Panel |
| 964 |
250000978 |
Hexagonal Cap Screw M6 X 25 |
| 1030 |
291006242 |
Front Bumper Kit |
| 1100a |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 2200 |
291005957 |
Under Console Trim |
| 2210 |
250000879 |
Plastite Torx Screw M6.81X30 |
| 2270 |
291006386 |
Northern Lichen, Front Console Trim |
| 2300 |
269502524 |
Latch |
| 2310 |
269502525 |
Deep Black, System Audio Support |
| 2315 |
250001279 |
Screw-Plastite Torx Cone Hd. M6.81X |
| 2320 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 2330 |
293830005 |
Rubber Bumper |
| 2340 |
269502534 |
Torsion Spring |
| 2400 |
291006034 |
RH Footrest Ass'y |
| 2410 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 2420 |
291006031 |
LH Footrest Ass'y |
| 2430 |
250001138 |
Plastite Screw Torx Cone HD.M6.81X3 |
| 2500 |
291006030 |
Rear Support |
| 2510 |
291003793 |
Insert |
