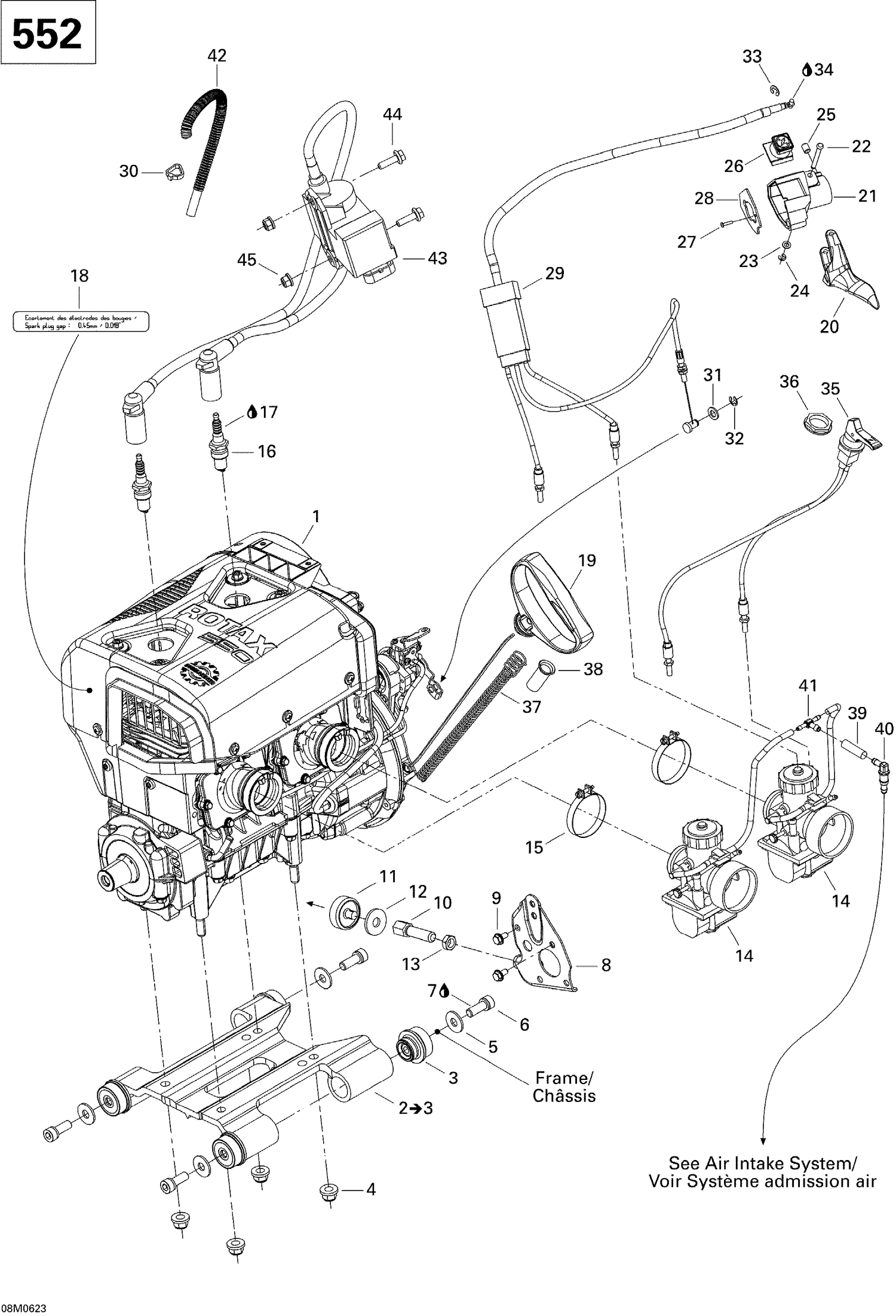

01- Engine And Engine Support
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 400509763 | Engine 552 |
| 3 | 512059691 | Rubber Mount |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 5 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 6 | 205002544 | Socket Head Screw M10 X 25 |
| 7 | 413703400 | Sealant LOCTITE 222MS - Call your local BRP dealership |
| 8 | 512059910 | Support Plate |
| 9 | 207561244 | Hex. Flange Screw M6 X 12, Scotch Grip |
| 10 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 11 | 512059610 | STOPPER - Call your local BRP dealership |
| 12 | 512059057 | WASHER - Call your local BRP dealership |
| 13 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 14 | 403138773 | CARBURATOR VM34-616 - Call your local BRP dealership |
| 15 | 512059834 | Gemi Clamp |
| 16 | 219703120 | Spark Plug NGK BR9ES This part replaces 414961100. |
| 17 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 18 | 516000986 | Spark Plug Decal |
| 19 | 572084400 | Starter Grip |
| 20 | 512060214 | Handle Ass'y This part replaces 512059997. |
| 21 | 512060603 | Throttle Housing This part replaces 512059334. |
| 22 | 414438700 | Lever Pin |
| 23 | 234051600 | Flat Washer M5, Stainless |
| 24 | 414439000 | Circlip |
| 25 | 414440800 | Socket Set Screw M8 X 10 |
| 26 | 515177362 | Emergency Stop Switch This part replaces 515176091. |
| 27 | 250000022 | SCREW-THREAD CUT.PH.PAN TYPE25 - Call your local BRP dealership |
| 28 | 512060390 | Plate This part replaces 512059507. |
| 29 | 512059973 | THROTTLE CABLE - Call your local BRP dealership |
| 30 | 414115200 | Tie-Rap 180 mm |
| 31 | 234081100 | Flat Washer 8 mm, Nylon |
| 32 | 414753500 | Circlip |
| 33 | 414274500 | Circlip |
| 34 | 219704453 | Was 293550004 Dielectric Grease, 150 g |
| 35 | 512059914 | CHOKE CABLE - Call your local BRP dealership |
| 36 | 512060671 | Plastic Nut This part replaces 512060016. |
| 37 | 512059535 | ROPE GUIDE - Call your local BRP dealership |
| 38 | 512059536 | TUBE - Call your local BRP dealership |
| 39 | 219704410 | Polyurethane Hose 10000Mm Long |
| 40 | 414580600 | Elbow Male Connector |
| 41 | 572045500 | T-Fitting |
| 42 | 219704399 | Was 409901700 Tubing (9 mm) |
| 43 | 512060042 | Calibrated Module |
| 44 | 207662044 | Hex. Flange Screw M6 X 20 |
