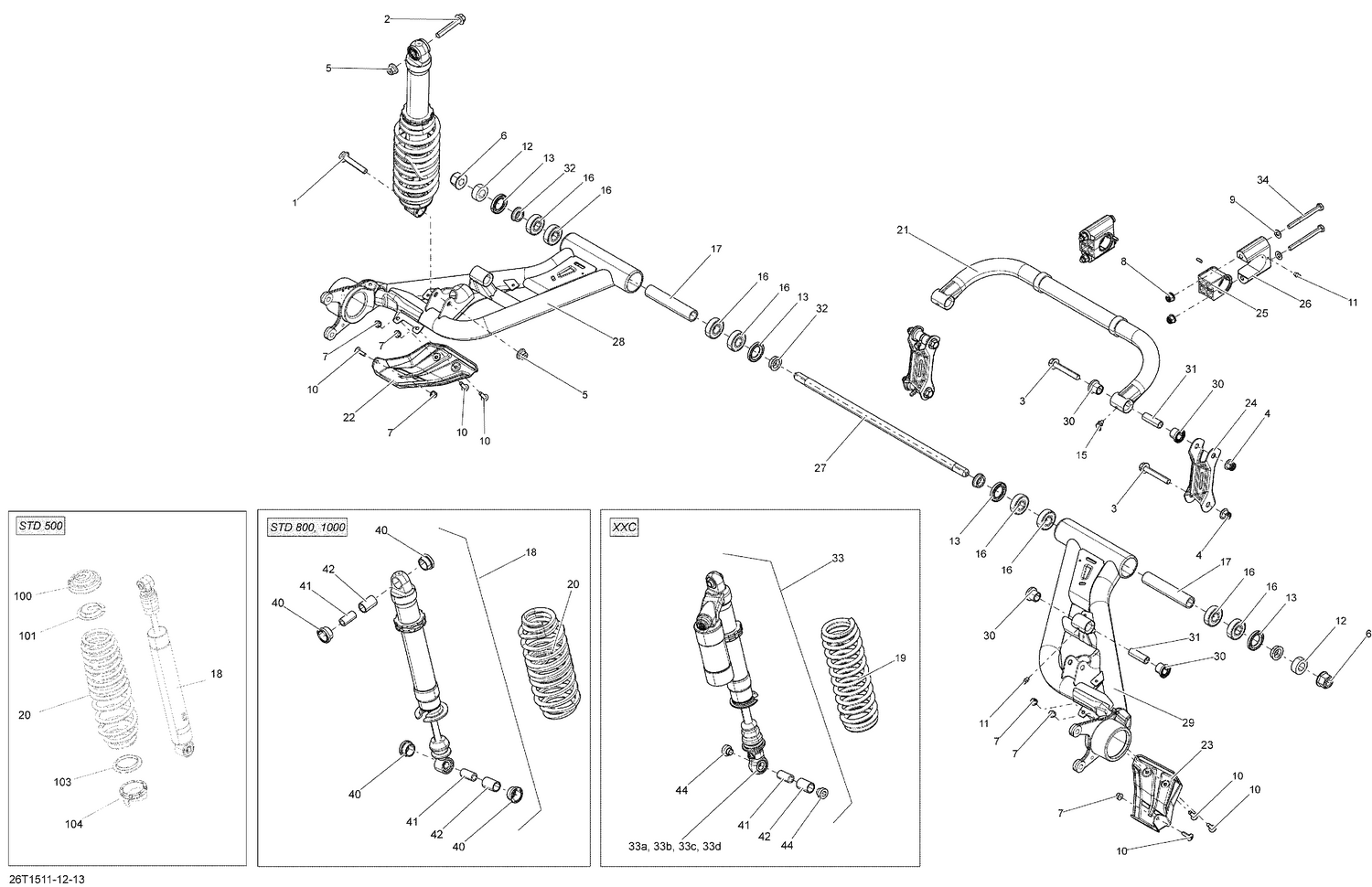

08- Rear Suspension _26T1513
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207605546 | Hex. Flange Screw M10 X 55 |
| 2 | 207606046 | Hex. Flange Screw M10 X 6 |
| 3 | 207606536 | Hex. Flange Screw M10 X 65 |
| 4 | 233201414 | Hex. Flange Elastic Nut M10 |
| 5 | 233201436 | Hex. Flange Elastic Nut M10 |
| 6 | 233211466 | Hex. Flange Elastic Nut M16 |
| 7 | 233261494 | Hex. Flange Elastic Nut M6 |
| 8 | 233281434 | Hex. Flange Elastic Nut M8 |
| 9 | 234081430 | Flat Washer M8 |
| 10 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 11 | 250000315 | Grease Fitting |
| 12 | 250200112 | Flat Washer M17 |
| 13 | 293200144 | Seal |
| 15 | 293550056 | Grease Fitting 90° |
| 16 | 293350145 | Ball Bearing This part replaces 706000826. |
| 17 | 706002259 | Spacer This part replaces 706000828. |
| 21 | 706000988 | Swaybar |
| 22 | 706001009 | LH PROTECTOR - Call your local BRP dealership |
| 23 | 706001010 | RH PROTECTOR - Call your local BRP dealership |
| 24 | 706001020 | Sway Bar Linkage |
| 25 | 706004640 | Stabilizer Bar Bushing This part replaces 706001098. |
| 26 | 706001099 | Bushing Holder |
| 27 | 706001664 | Axial Pivot M16 |
| 32 | 706001282 | Spacer |
| 34 | 250001035 | Hex. Screw M8 X 85 This part replaces 207088587. |
| 100 | XXX | Not Available As Spare Parts |
| 101 | XXX | Not Available As Spare Parts |
| 103 | XXX | Not Available As Spare Parts |
