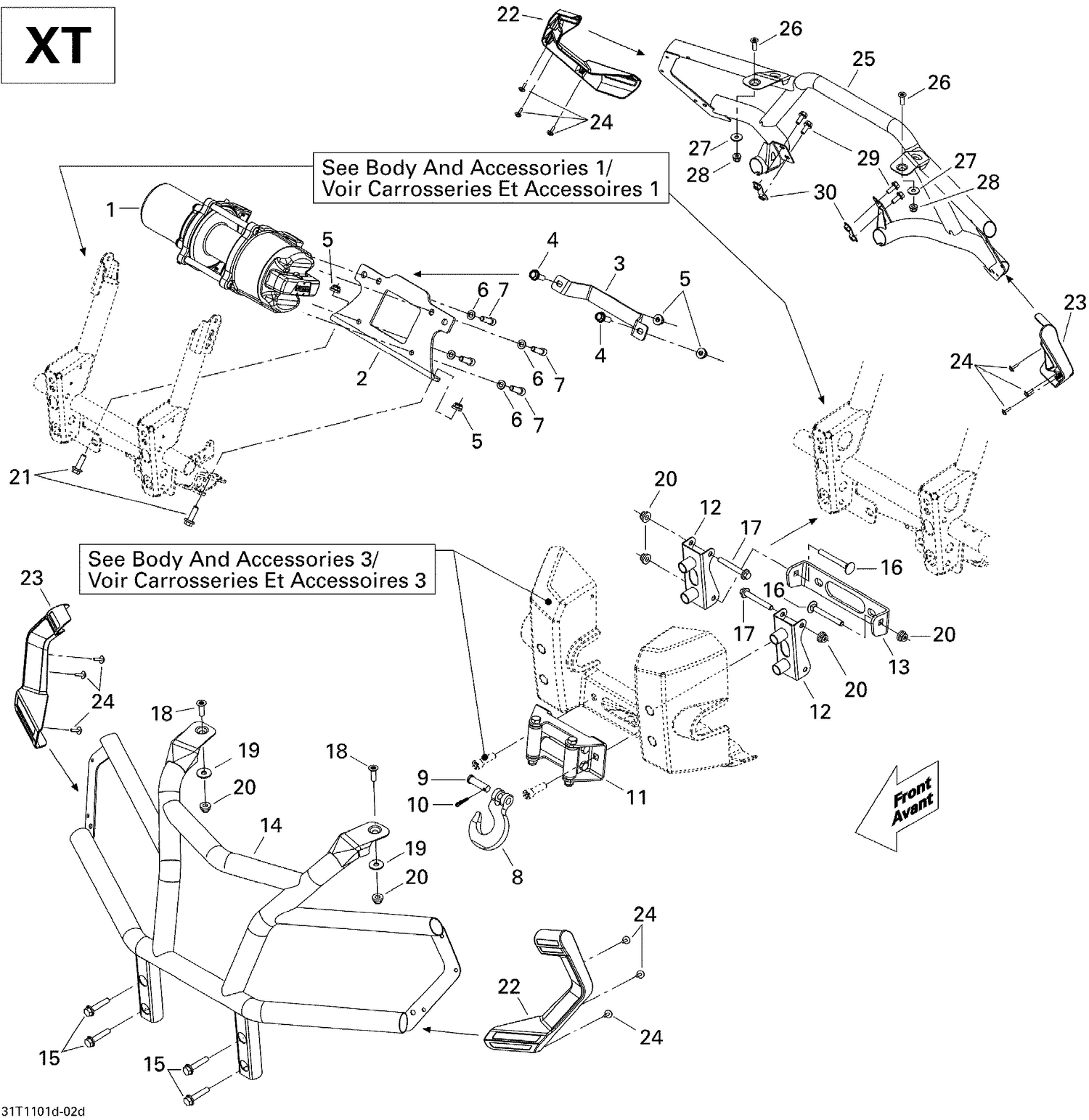

| Ref | Part Number | Description |
|---|
| 1 |
705008546 |
WINCH - Call your local BRP dealership This part replaces 705003296. |
| 2 |
705004278 |
BLACK MOUNTING PLATE - Call your local BRP dealership |
| 3 |
705001460 |
BLACK WINCH BRACKET - Call your local BRP dealership |
| 4 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 5 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 6 |
234181401 |
Lock Washer 8 mm |
| 7 |
205082044 |
Socket Head Screw M8 X 20 |
| 8 |
705014949 |
Winch Hook Kit This part replaces 705002329. |
| 9 |
250400021 |
Clevis Pin |
| 10 |
250400022 |
Cotter Pin |
| 11 |
715007699 |
Fairlead_Roller Kit This part replaces 715000011. |
| 12 |
705003828 |
BUMPER BRACKET - Call your local BRP dealership |
| 13 |
705003649 |
WINCH BRACKET - Call your local BRP dealership |
| 14 |
705002812 |
Front Bumber |
| 15 |
XXX |
Not Available As Spare Parts |
| 16 |
207787044 |
Carriage Bolt M8 X 70 |
| 17 |
207686044 |
Hex. Flange Screw M8 x 60 |
| 18 |
XXX |
Not Available As Spare Parts |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 22 |
705002802 |
LH Front Cap |
| 23 |
705002803 |
RH Front Cap |
| 24 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 25 |
705002806 |
Rear Bumber |
| 26 |
235482584 |
TORX SCREW M8 X 25 - Call your local BRP dealership |
| 27 |
234082410 |
Flat Washer 8 mm |
| 28 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 29 |
207582054 |
Hex Screw Washer Head M8 X 20 This part replaces 207582084. |
