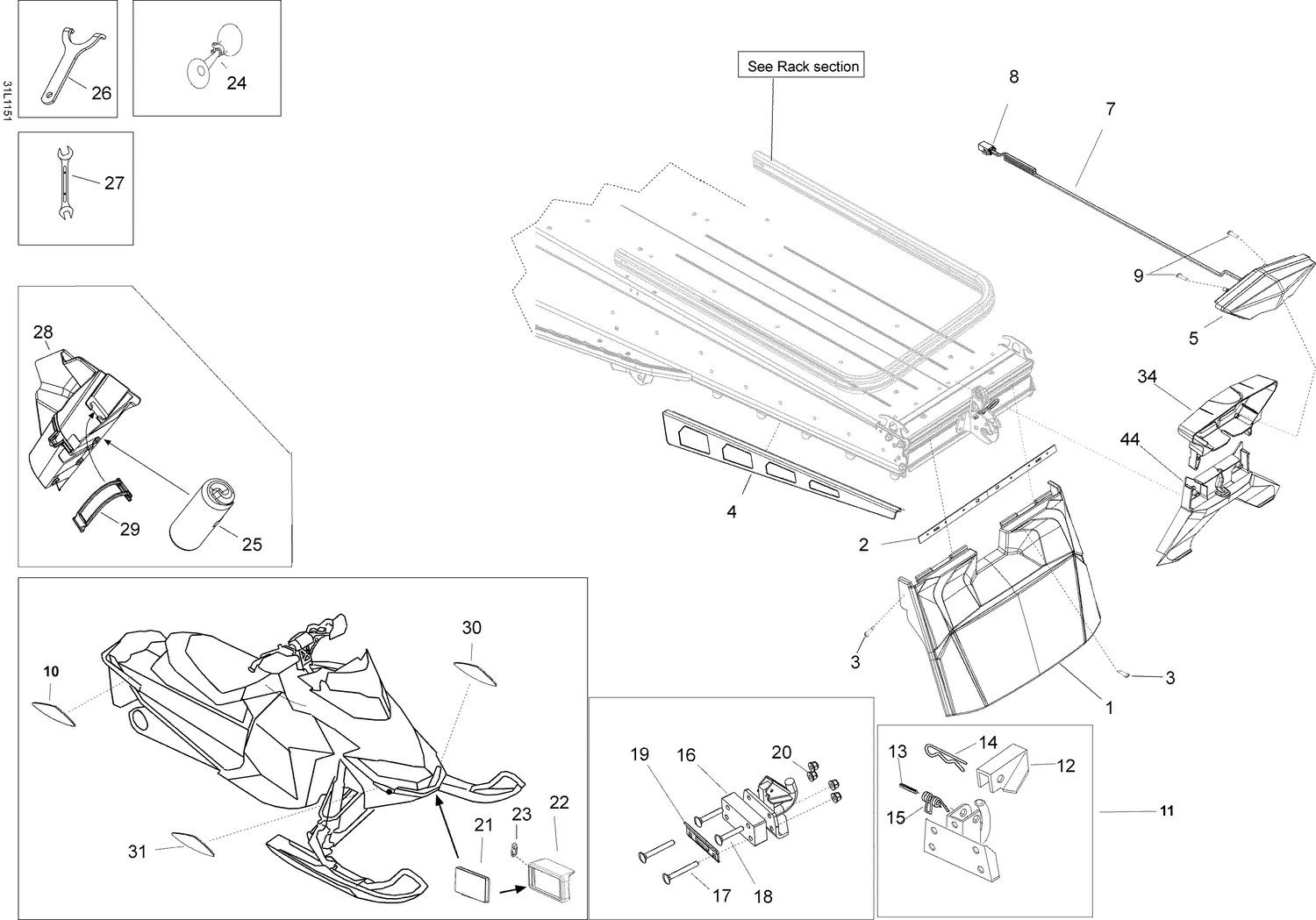

09- Utilities
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 520001067 | Snow guard |
| 2 | 520001021 | Screw Plate |
| 3 | 250000676 | Forming Screw M5 x 16 This part replaces 732600030. |
| 4 | 520000693 | RH Protector |
| 4 | 520000694 | LH Protector |
| 5 | 520000692 | Rear light |
| 7 | 520000849 | Rear Wiring Harness |
| 8 | 515175494 | Male Housing, 3 Circuits |
| 9 | 40611 | Screw plastofax |
| 10 | 705002423 | Front Lateral Reflector, Amber |
| 11 | 5344156 | HITCH ASS'Y - Call your local BRP dealership |
| 12 | 5440767 | Lock |
| 13 | 41012 | Pin |
| 14 | 41029 | Hair pin |
| 15 | 545693 | SPRING - Call your local BRP dealership |
| 16 | 605351510 | SPACER - Call your local BRP dealership |
| 17 | 207786544 | CARRIAGE BOLT M8 X 65 - Call your local BRP dealership |
| 18 | 207785044 | Carriage Bolt M8 X 50 |
| 19 | 520000727 | Plate |
| 20 | 233281414 | Hex. Flange Elastic Nut M8 |
| 21 | 21118 | Reflector (Bright) |
| 22 | 520000871 | Reflector Support |
| 23 | 27120 | TIE RAP - Call your local BRP dealership |
| 24 | 549011291 | Horn |
| 25 | 529000066 | Tool Kit This part replaces 529000055. |
| 26 | 529035582 | ADJUSTMENT WRENCH - Call your local BRP dealership |
| 27 | 34017 | Wrench |
| 28 | 520000720 | TOOL KIT RACK - Call your local BRP dealership |
| 29 | 520000528 | Latch |
| 30 | 520001601 | Yellow LH Reflector This part replaces 520000844. |
