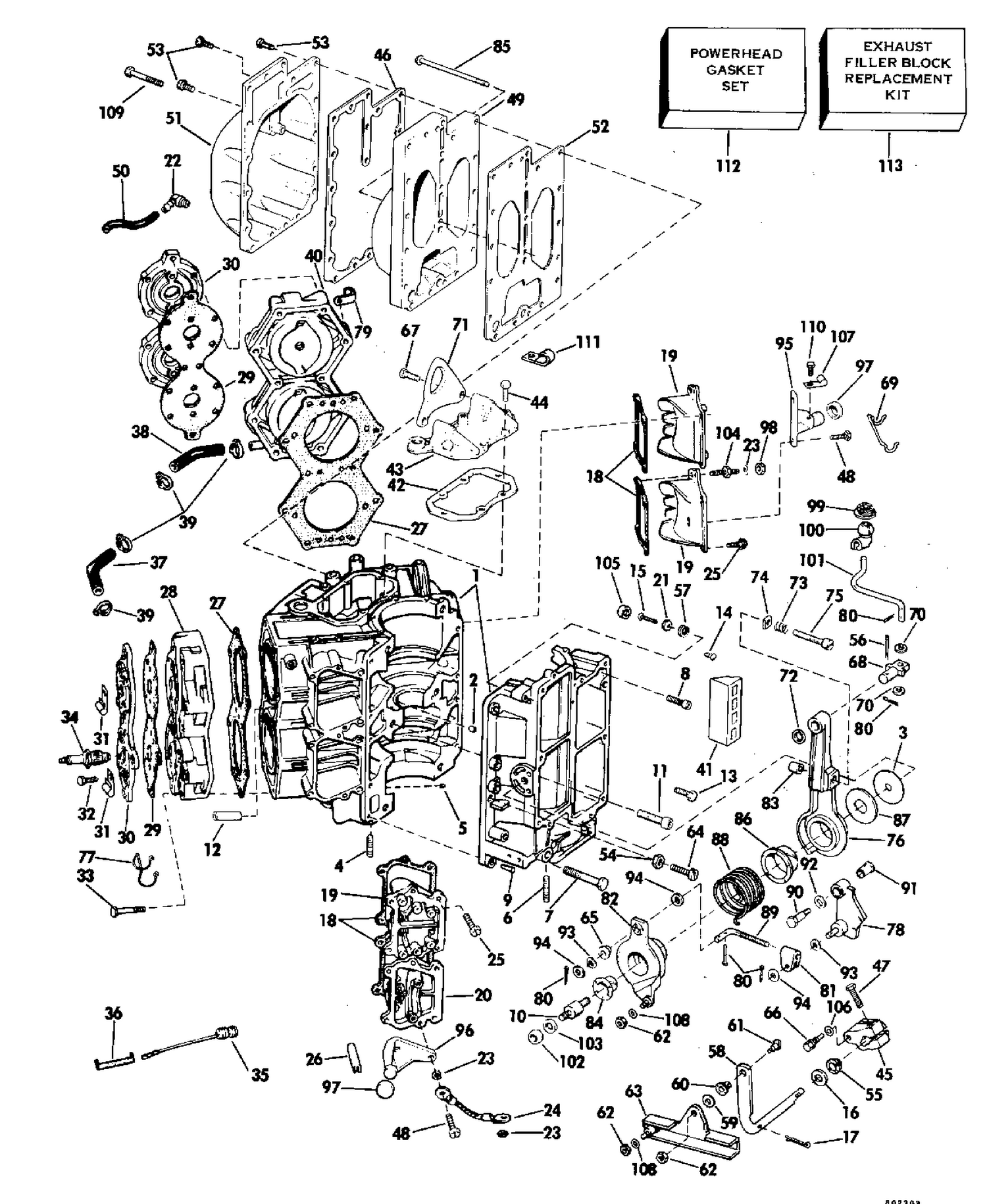

CYLINDER & CRANKCASE

CYLINDER & CRANKCASE

Parts (90)

RefPart NumberDescription
1 0394452 CYLINDER C'CASE ASSY, 115 This part replaces 0389606.
1 0431658 CYL & C'CASE ASSY., 115 models This part replaces 0389548.
1 0431659 CYL & C'CASE ASSY., 88/90 models This part replaces 0389912.
3 0318562 WASHER, Stud
4 0321640 STUD
5 0310507 PLUG
8 0318907 SCREW, C'case to cyl top
10 0322986 STUD, Throttle lever
11 0319592 SCERW,Cyl.to c'case,center
12 0322411 DEFLECTOR, Water pass
13 0300646 VIS, ancrage
14 0306778 ECREW,Exhaust cover,1-3/8"long
16 0202026 LOCK WASHER, Stud
18 0307133 GASKET
19 0390449 COVER, By-pass
20 0390450 COVER, By-pass
24 0376349 FIL, masse
25 0306049 SCREW
26 0326372 PRIMER DRAIN HOSE GUARD
27 0318358 GASKET, Cyl. head
28 0326505 CYLINDER HEAD, Stbd This part replaces 0324529.
29 0318335 COVER, Cylinder head
30 0318333 COVER, Cylinder head
31 0330151 CLAMP, Harness to oil tank boss This part replaces 0309322.
32 0306409 VIS, collecteur vers carter-moteur
33 0307267 SCREW
34 0384771 SPARK PLUG, Ch ul-77v
34 0386939 PARK PLUG,AC M40FFX
34 0386941 SPARK PLUB,Champion L77J4
35 0386686 SWITCH TEMP
37 0340975 HOSE, Cylinder head, stbd. This part replaces 0321724.
38 0340976 HOSE, Cylinder head, port This part replaces 0321723.
39 0324825 CLAMP, Cylinder head hose
40 0326502 CYLINDER HEAD, Port, 115 only This part replaces 0322864.
40 0326504 CYLINDER HEAD, Port This part replaces 0324528.
41 0322684 FILLER BLOCK
42 0322858 GASKET
43 0318473 COVER, Water passage
45 0326642 LEVER, Shift rod This part replaces 0318539.
46 0317914 GASKET, Exh. cover
46 0317955 GASKET, Exh. cover
47 0325857 SCREW, Fuel connector
49 0317729 COVER, Exh. inner
49 0322689 COVER, Exh. inner
49 0323468 EXHAUST MANIFOLD
50 0323335 HOSE, Elbow to nipple, 150, 175, 200
51 0329503 COVER, Exh. outer This part replaces 0323153.
51 0390015 COVER, Exh. manifold
52 0323469 GASKET, Exh. manifold to cyl. 140 hp
53 0308728 SCREW
53 0309905 SCEW,Cylinder head
55 0312708 BUSHING
56 0120356 COTTER PI, Retainer
58 0323089 SHIFT LEVER
59 0329241 RONDELLE This part replaces 0305981.
61 0323264 PIN
63 0395475 LINK & PIN ASSY This part replaces 0389882.
66 0327590 PIN, Shift lever This part replaces 0323267.
67 0314515 SCREW
68 0315104 RETAINER, #3 ing. lead
71 0323898 BRACKET, Lift
72 0330179 WASHER This part replaces 0303304.
75 0322357 SCREW, Idle adjust
76 0318561 LEVER, Spark adjust
77 0322549 DISPOSITIF DE RETENUE, bouchon
78 0395310 THROTTLE CAM ASSY. This part replaces 0386588.
81 0310524 YOKE
82 0391936 LEVER, Throttle This part replaces 0387956.
83 0318660 BUMPER, Screw, throttle stop
84 0315081 BAGUE, arbre de commande de sens de marche vers bloc-cylindres
85 0317972 ACREW,Exh manf to cyl.,4-1/4" long
86 0318560 BUSHING, Spark lever
87 0322987 WASHER, Throttle lever
88 0314094 LINK, Throttle lever to cam
89 0330159 ROD, Throttle lever to cam This part replaces 0321726.
90 0314136 VIS, came de papillon
92 0204445 BOW WASHER
93 0204757 BOW WASHER
94 0302474 WAHSER,Link
95 0319217 PIN,Clevis to shift lock
96 0319218 SUPPORT BNRACE,Stbd.
97 0313581 BUMBER, Mount screw
99 0395448 BALL & SOCKET ASSY This part replaces 0313700.
100 0395448 BALL & SOCKET ASSY This part replaces 0313703.
101 0318402 ROD, Spare advance
105 0314416 BUMBER, Advance screw
108 0328737 RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561.
109 0323626 SCREW This part replaces 0317952.
110 0303311 SCR,Clamp,eng cable
112 0439085 POWERHEAD GASKET SET This part replaces 0391300.
