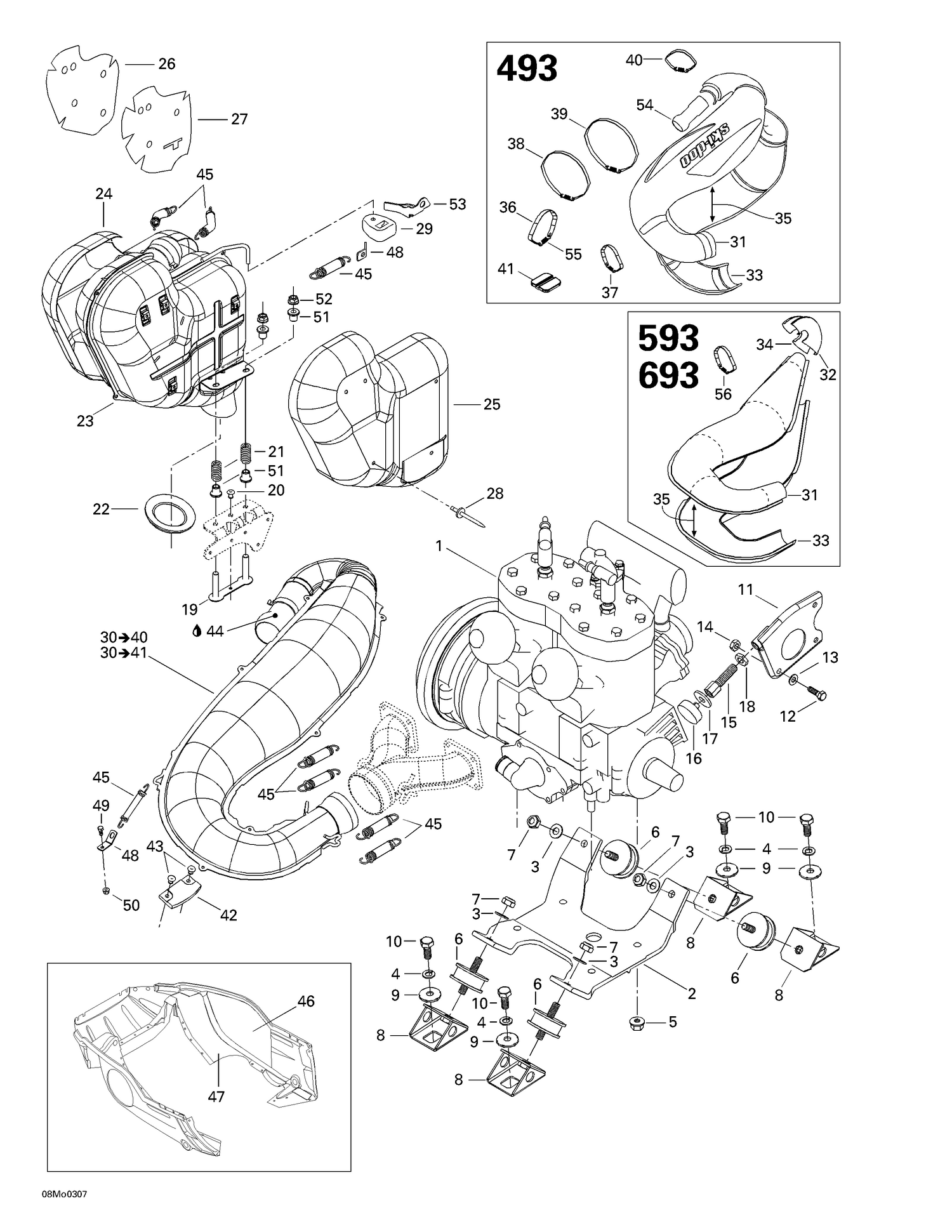

01- Engine Support And Muffler
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 512059488 | ENGINE SUPPORT - Call your local BRP dealership |
| 3 | 234001410 | Flat Washer 10 mm |
| 4 | 234100602 | WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 5 | 233201414 | Hex. Flange Elastic Nut M10 |
| 6 | 570128700 | RUBBER MOUNT - Call your local BRP dealership |
| 7 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 8 | 512050900 | Engine Support |
| 9 | 512056700 | Lock Washer |
| 10 | 207102544 | Hex. Screw M10 X 25 |
| 11 | 512058500 | Support Plate |
| 12 | 207182044 | Hex. Screw M8 X 20 |
| 13 | 234081410 | Flat Washer 8 mm |
| 14 | 232581414 | Hex. Elastic Stop Nut M8 |
| 15 | 512058800 | STOPPER SCREW - Call your local BRP dealership |
| 16 | 512059056 | Stopper |
| 17 | 512059057 | WASHER - Call your local BRP dealership |
| 18 | 232026414 | RH Hex. Nut This part replaces 732610019. |
| 19 | 514053263 | Muffler Bracket |
| 20 | 390402200 | Pop Rivet 3/16" |
| 21 | 414913700 | SPRING - Call your local BRP dealership |
| 28 | 390910000 | Pop Rivet 3/16” |
| 29 | 514052704 | RUBBER BUMPER - Call your local BRP dealership |
| 39 | 514053540 | RETAINING STRAP - Call your local BRP dealership |
| 42 | 570044100 | Rubber Pad |
| 43 | 293150103 | Pop Rivet 3/16" |
| 44 | 293800090 | Sealant, Loctite, 80 ml |
| 45 | 415107100 | Spring |
| 46 | 514052718 | Reflective Sheet |
| 47 | 514053390 | REFLECTIVE SHEET - Call your local BRP dealership |
| 48 | 514053436 | Spring Bracket |
| 49 | 207151244 | Hex. Screw M5 X 12 |
| 50 | 233251434 | Flange Elastic Nut M5 This part replaces 233251414. |
| 51 | 514053343 | GUIDE - Call your local BRP dealership |
| 52 | 233481413 | Lock Spring Nut M8 |
| 55 | 514053643 | Spring |
