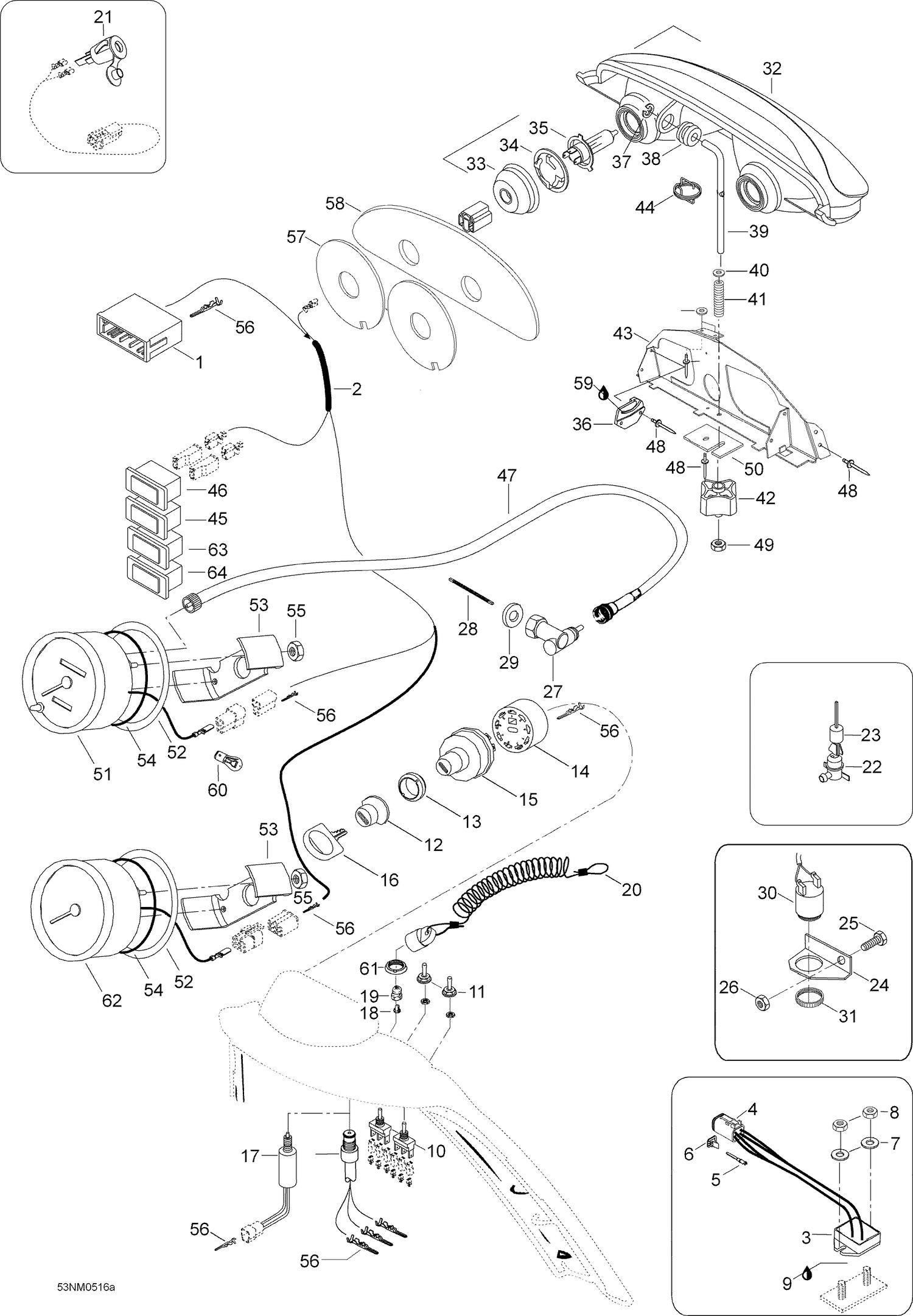

| Ref | Part Number | Description |
|---|
| 1 |
42617 |
Male connector housing |
| 4 |
278001477 |
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership |
| 5 |
515175568 |
Connector |
| 6 |
278001478 |
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership |
| 7 |
234062410 |
Flat Washer 6 mm This part replaces 20009. |
| 8 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 9 |
413707500 |
Grease |
| 10 |
410107300 |
Switch |
| 11 |
515175281 |
Cover |
| 12 |
570013700 |
Boot |
| 13 |
410112100 |
FACE NUT - Call your local BRP dealership |
| 14 |
572150700 |
FEMALE TERMINAL HOUSING, 9 CIRCUITS - Call your local BRP dealership |
| 15 |
42019 |
Ignition switch |
| 16 |
Not |
Available As Spare Part - Blank key |
| 21 |
42026 |
Flush mounted socket |
| 22 |
414681800 |
LEVEL SWITCH - Call your local BRP dealership |
| 23 |
414681900 |
Float |
| 24 |
549459 |
ALARM RETAINER - Call your local BRP dealership |
| 25 |
40029 |
Hex. screw M6 x 16 |
| 26 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 27 |
35021 |
Drive axle |
| 28 |
45009 |
Insert cable |
| 29 |
5444186 |
Seal - Call your local BRP dealership |
| 30 |
414792102 |
Back up alarm |
| 31 |
414805101 |
PLASTIC NUT - Call your local BRP dealership |
| 33 |
410607100 |
PROTECTOR CAP - Call your local BRP dealership |
| 34 |
410608300 |
BULB HOLDER - Call your local BRP dealership |
| 35 |
515176274 |
Halogen Bulb, 60/55 W, 12 V This part replaces 410504401. |
| 36 |
517289300 |
R.H. Headlamp Support |
| 36 |
517289400 |
L.H. Headlamp Support |
| 37 |
732610072 |
Push Nut |
| 38 |
415100800 |
Grommet - Call your local BRP dealership |
| 39 |
5448100 |
Adjuster rod |
| 40 |
20003 |
Washer A6,4 |
| 41 |
415100600 |
SPRING - Call your local BRP dealership |
| 42 |
515175548 |
Handle - Call your local BRP dealership |
| 43 |
5248092 |
HEADLIGHT PLATE - Call your local BRP dealership |
| 44 |
5445737 |
SUPPORT SPRING - Call your local BRP dealership |
| 45 |
410109600 |
Pilot Lamp |
| 46 |
410109500 |
Pilot Lamp |
| 47 |
5344162 |
Speedometer cable |
| 48 |
36005 |
Rivet |
| 49 |
33010 |
Lock Nut M6 (1=10Pcs) |
| 50 |
5448320 |
Locking plate |
| 51 |
515175335 |
Speedometer |
| 56 |
605642628 |
CONNECTOR - Call your local BRP dealership This part replaces 42603. |
| 57 |
5247817 |
FOAM - Call your local BRP dealership |
| 58 |
5447818 |
PLASTIC PLATE - Call your local BRP dealership |
| 59 |
413707500 |
Grease, 400g |
| 60 |
410504200 |
INSTRUMENTATION BULB - Call your local BRP dealership |
| 62 |
515175341 |
Tachometer |
