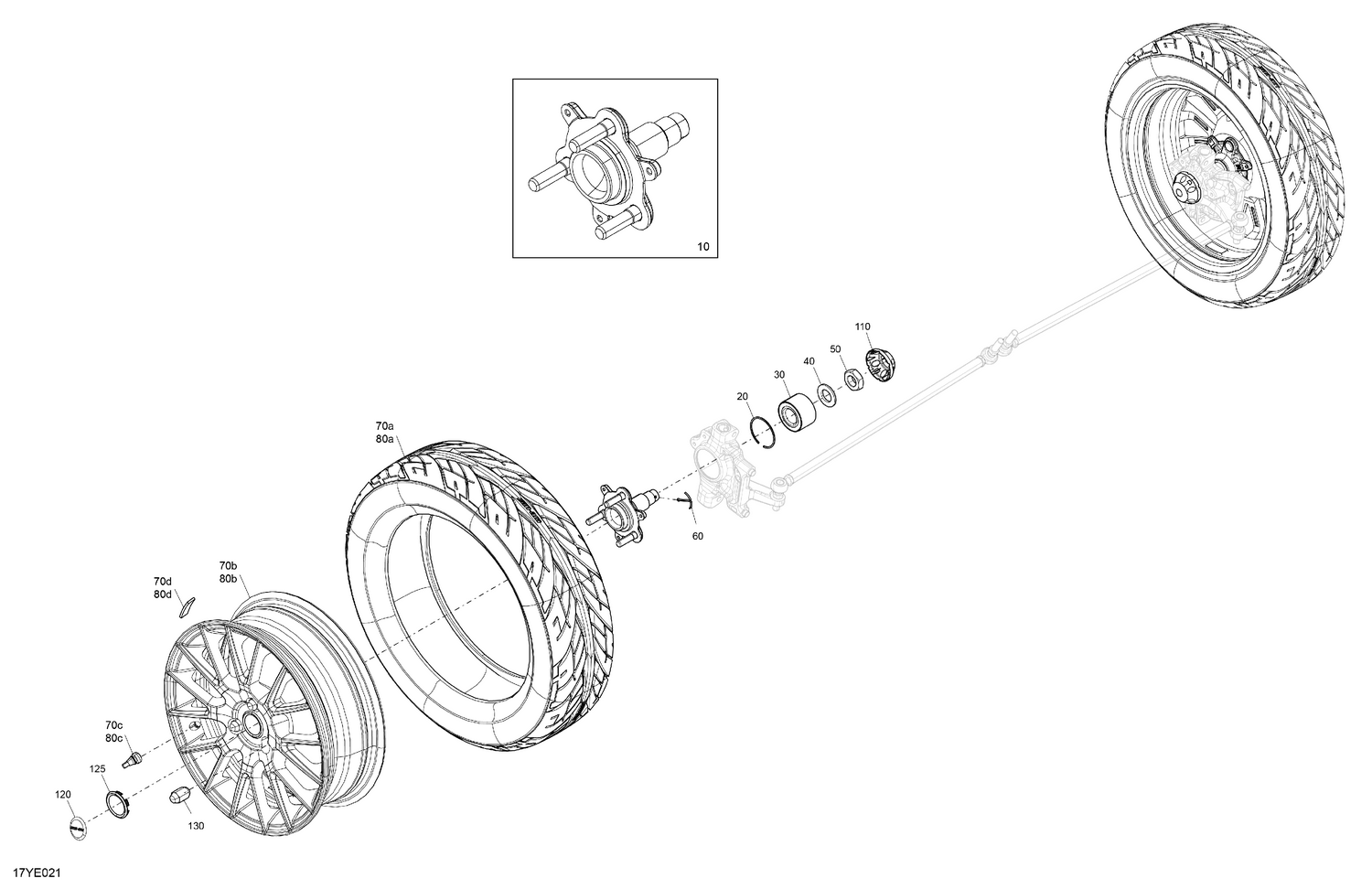

03- Drive - Front Wheels
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705403960 | Wheel Hub |
| 20 | 293370019 | Circlip |
| 30 | 293350150 | Ball Bearing |
| 40 | 250200163 | Flat Washer |
| 50 | 250100170 | Hex. Jam Nut M24 |
| 60 | 250400047 | Cotter Pin |
| 70a | 706205067 | Front Tire 165/55R15 |
| 70b | 706206126 | Carbon Black Semi Gloss, 15 Inch Rim |
| 70c | 705400193 | Rim Valve With Cap |
| 70d | 705502106 | Self Adhesive Weight, 5G 20mm |
| 80a | 706205067 | Front Tire 165/55R15 |
| 80b | 706206126 | Carbon Black Semi Gloss, 15 Inch Rim |
| 80c | 705400193 | Rim Valve With Cap |
| 80d | 705502106 | Self Adhesive Weight, 5G 20mm |
| 110 | 705401883 | Wheel Cap |
| 120 | 704910591 | Center Wheel Can-Am Logo |
| 125 | 705400388 | Black, Wheel Cap |
