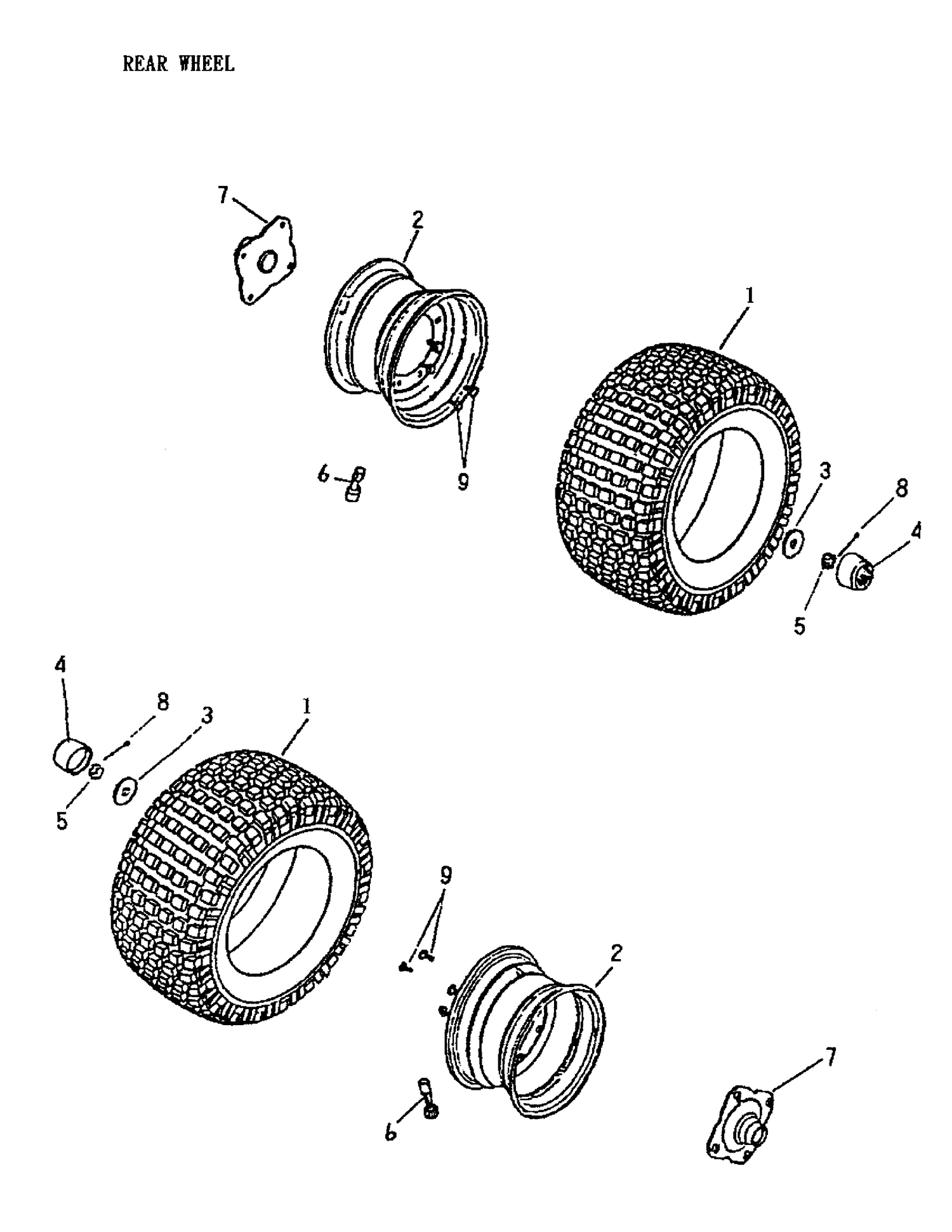

08- Rear Wheel
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A42811170000 | Pneu Arrière 19*8-8 - Appelez votre concessionnaire BRP local |
| 2 | A42801146000 | RIM ASS'Y - Call your local BRP dealership |
| 3 | A941011440045 | PLAIN WASHER, 14 X 40 X 4.5 - Call your local BRP dealership |
| 4 | A4281414500A | RUBBER COVER - Call your local BRP dealership |
| 5 | A940521400021 | Scotch Flange Nut M14 |
| 6 | A42616145000 | Air Nozzle |
| 7 | A42036145001 | SHAFT CONNECTOR - Call your local BRP dealership |
| 8 | A9420130320 | COTTER PIN - Call your local BRP dealership |
