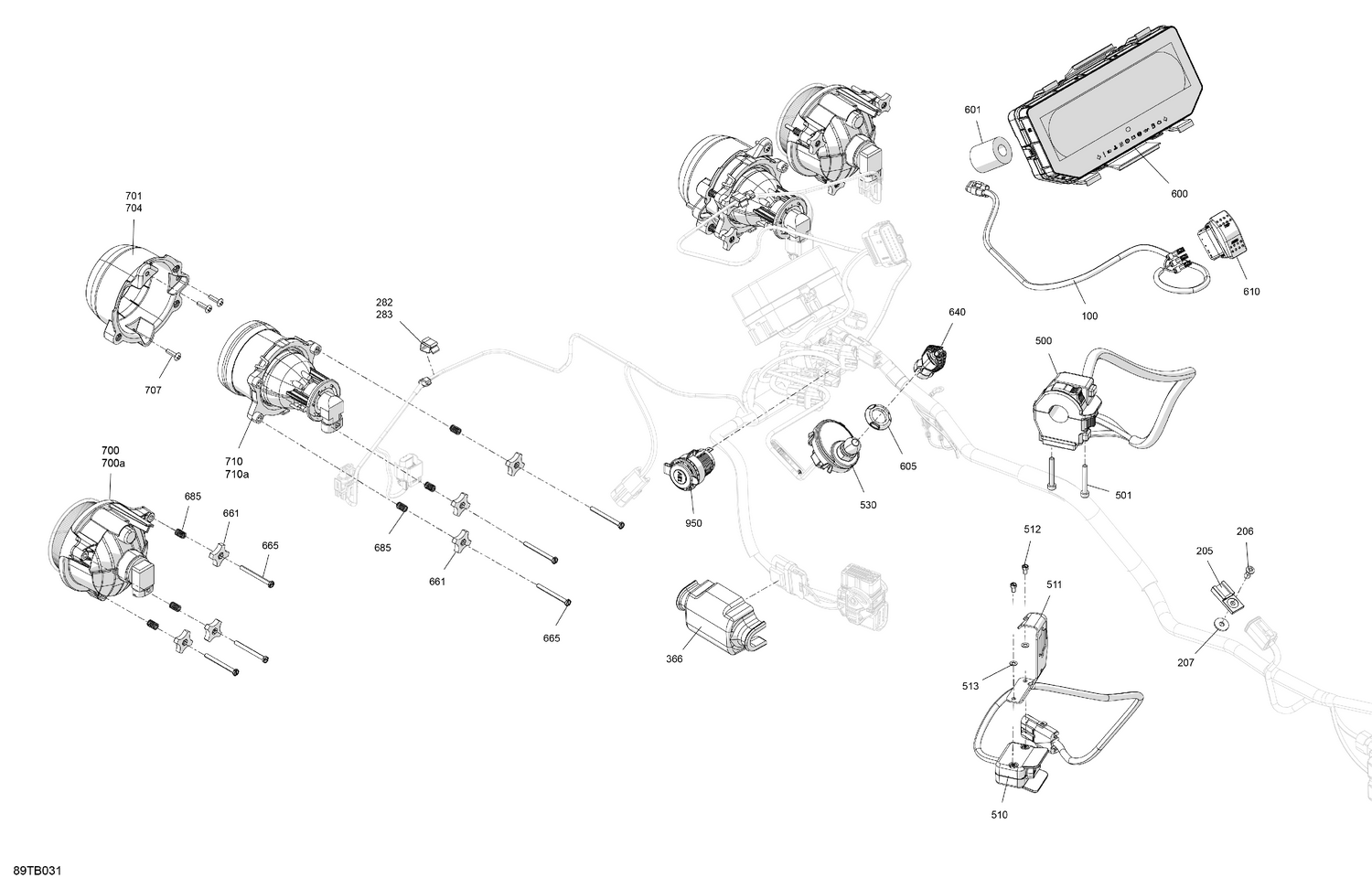

08- Electric - Front Section
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 100 | 710007503 | Gauge Wiring Harness |
| 205 | 270000141 | Clip |
| 206 | 293150301 | Pop Rivet 3/16 X ,551 |
| 207 | 391301600 | Washer |
| 282 | 710010204 | Clip |
| 283 | 710010204 | Clip |
| 366 | 710007255 | Soft Protection Sleeve |
| 500 | 710006134 | Switch Handle |
| 501 | 205053588 | Socket Head Screw M5 X 35 |
| 510 | 710007327 | Winch Switch |
| 511 | 710004670 | Black Support |
| 512 | 250000153 | Hex. Cap Screw 6-32 X 1/4" |
| 513 | 234040600 | Flat Washer 4 mm |
| 530 | 515178840 | Terminal Dess One-Wire |
| 600 | 710005253 | Multifunction Gauge |
| 601 | 415130224 | Ferrite |
| 605 | 278004274 | Specialized Nut |
| 610 | 710006717 | Switch Mode |
| 640 | 710004964 | Grey Key RFID |
| 661 | 572106600 | Handle |
| 665 | 250000718 | Hex. Screw K40 X 45 |
| 685 | 517168600 | Spring |
| 700a | 715900141 | Bulb 12V 55W |
| 701 | 710002291 | RH High Front Housing |
| 704 | 710002292 | LH High Front Housing |
| 707 | 250000723 | Phillips Screw K40 X 16 |
| 710a | 415129249 | Halogen Bulb |
