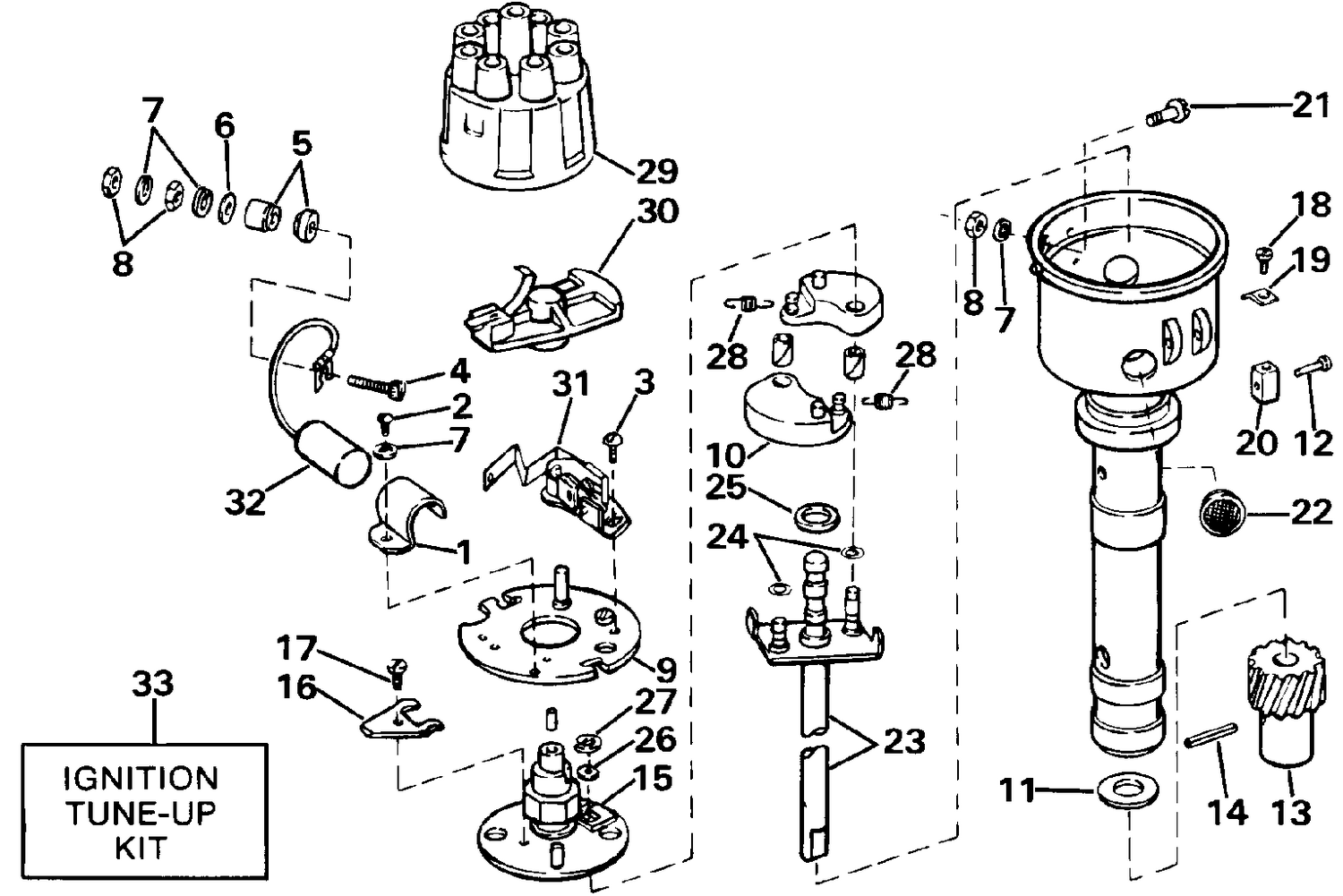

| Ref | Part Number | Description |
|---|
| 1 |
0313122 |
BRACKET, Cond mtg |
| 2 |
0313123 |
SCREW, Cond bracket |
| 3 |
0313124 |
SCREW, Contact point adj |
| 4 |
0313125 |
SCREW, Primary terminal |
| 5 |
0981738 |
INSULATOR, Primary term |
| 6 |
0313127 |
WASHER, Primary terminal |
| 7 |
0313128 |
LKWASH, Primary term |
| 8 |
0910064 |
HEX NUT, Primary terminal |
| 10 |
0910063 |
WEIGHT, Governor |
| 11 |
0313132 |
THRUST WAHSER |
| 12 |
0316141 |
RIVET, Clamp. |
| 13 |
0313134 |
GEAR, Distr drvn |
| 14 |
0910062 |
ROLL PIN, Gear |
| 15 |
0982780 |
ADVANCE PLATE & CAM |
| 16 |
0313143 |
CLAMP, Cam hldn |
| 17 |
0313144 |
SCREW, Clamp |
| 18 |
0913094 |
SCREW This part replaces 0910058. |
| 19 |
0313140 |
CLIP, Cap attaching |
| 20 |
0910060 |
SWIVEL |
| 21 |
0913094 |
SCREW This part replaces 0910058. |
| 22 |
0313138 |
SCREEN, Ventilation |
| 23 |
0982779 |
MAIN SHAFT ASSY |
| 24 |
0313145 |
WAASHER, Wt posts |
| 25 |
0313146 |
WASHER, Main shaft, lower |
| 26 |
0910065 |
GOVERNOR POST |
| 27 |
0313148 |
RETAINER, Weight to post |
| 28 |
0313149 |
SPRING, Adv wt (painted blue) |
| 29 |
0982209 |
DISTRIBUTOR CAP ASSY |
| 30 |
0982211 |
ROTOR ASSY |
| 31 |
0382135 |
CONTACT ASSY. |
| 32 |
0382136 |
CONDENSER |
| 0985560 |
0985560 |
DISTRIBUTOR ASSY., Mallory |
