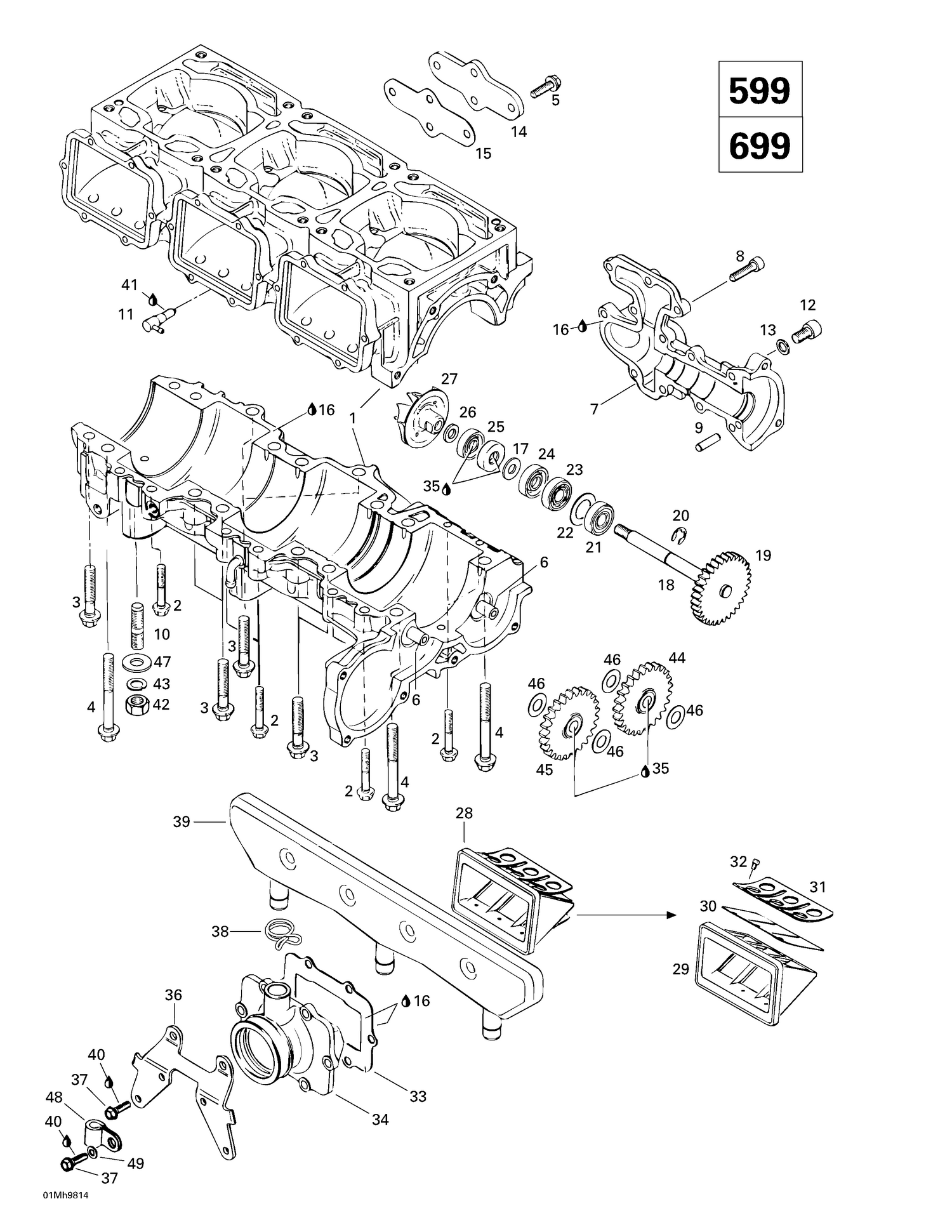

01- Crankcase, Reed Valve, Water Pump (599, 699)

01- Crankcase, Reed Valve, Water Pump (599, 699)

Parts (45)

RefPart NumberDescription
2 420941451 HEX. COLLAR SCREW M6 X 40 - Call your local BRP dealership
3 420640433 Collar Hex Screw M8 X 45 This part replaces 420940636.
4 420841307 Hex. Collar Screw M8 X 65 This part replaces 420841306.
5 420941251 SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250.
6 420929935 INTERMEDIATE GEAR SHAFT - Call your local BRP dealership
7 Not Available As Spare Part - Water Pump Cover
8 205062544 Socket Head Screw M6 X 25 This part replaces 222962565.
9 420429230 Dowel Pin
10 420940400 Stud M10 x 25
11 420956511 Check Valve This part replaces 420956510.
12 420440191 Socket Head Screw M8 x 16
13 420950141 Sealing Ring
14 420810470 Water Duct Cover
15 420931300 Water Duct Gasket
16 413707100 Sealant, 100 gr
17 420927411 Flat Washer M10 This part replaces 420927410.
19 Not Available As Spare Part - Waterpump Gear
20 420845390 RETAINING RING - Call your local BRP dealership
21 420832490 Bearing_Ball - Call your local BRP dealership
22 420944466 SHIM 1 MM - Call your local BRP dealership
23 420232100 Ball Bearing
24 420230195 Oil Seal
25 420950400 OIL SEAL - Call your local BRP dealership
26 420827795 Distance Shim
27 420922440 Water Impeller
29 Not Available As Spare Part - Reed Valve
30 420924532 Reed Pedal
31 420924539 Reed Pedal Stop
32 420941215 Phillips Screw M3 X 5
33 420950292 GASKET 1 MM - Call your local BRP dealership
34 420867840 INTAKE SOCKET - Call your local BRP dealership
35 413707000 Dow Corning 111, 150 g
36 420851351 CARRIER - Call your local BRP dealership
37 420841555 Hex. Tapping Screw M5 X 20
38 420851360 Clamp
39 420867792 Intake Resonator
40 293800060 Loctite 243, 10 ml This part replaces 413703000.
41 219703000 Sealant Loctite 648 This part replaces 413711400.
42 232006414 Hex. Nut M10 X 1.5 This part replaces 228001045.
43 234100602 WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188.
44 420834266 Sprocket 32 T
45 420834267 SPROCKET, 32 TEETH - Call your local BRP dealership
46 420927952 THRUST WASHER - Call your local BRP dealership
47 234001410 Flat Washer 10 mm This part replaces 224001211.
48 414176000 Open Clamp
