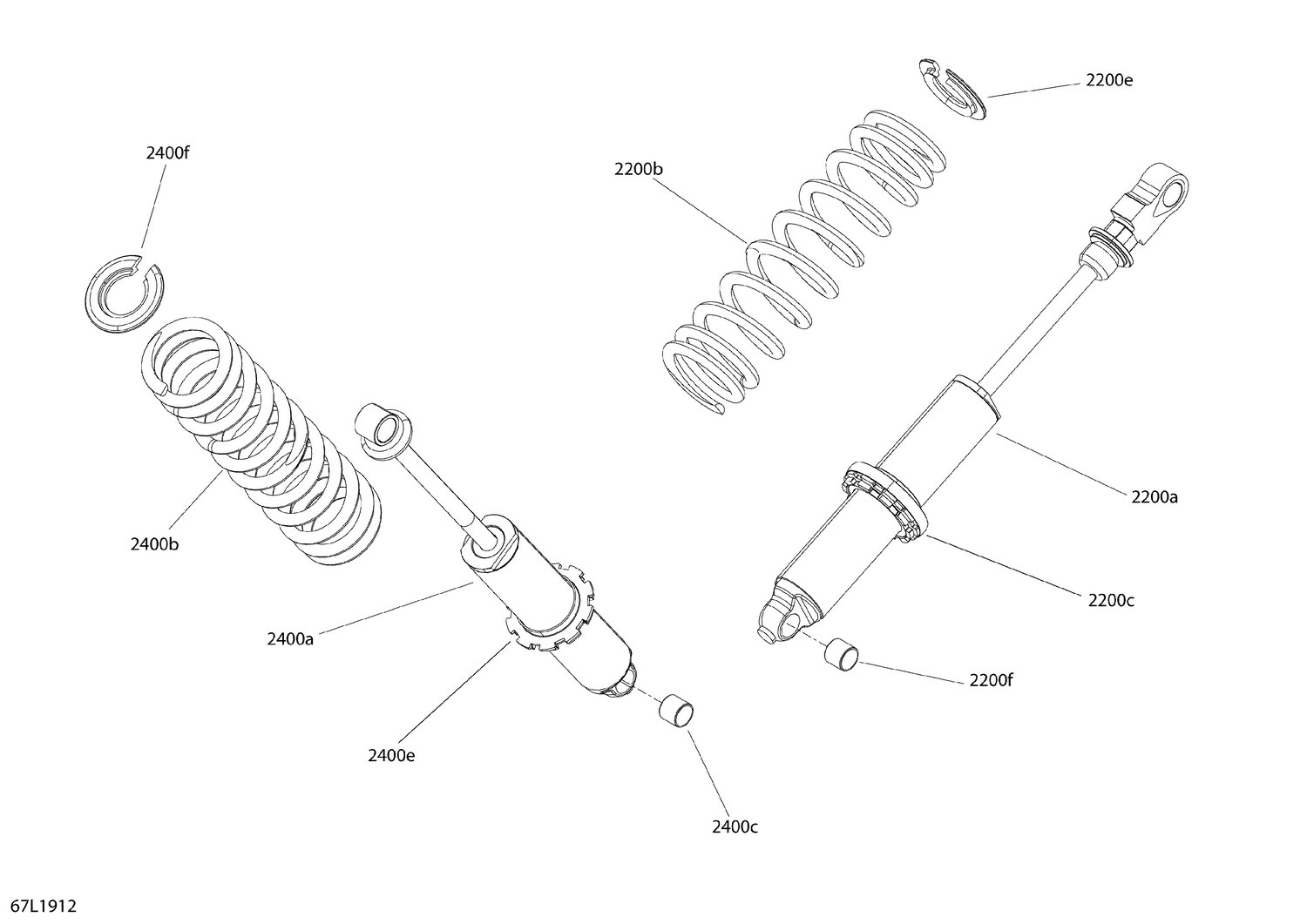

08- Rear Shocks - LTD - STD
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2200a | 503194528 | Shock |
| 2200b | 503195219 | Spring 350 MM-50 N/MM |
| 2200c | 230078 | Adjusting Cam |
| 2200e | 503196528 | Stopper Spring This part replaces 503194922. |
| 2200f | 503195134 | Glide Bearing |
| 2400a | 503194831 | Shock |
| 2400b | 503193292 | Spring 220 MM-30 N/MM |
| 2400c | 503195134 | Glide Bearing |
| 2400e | 230078 | Adjusting Cam |
| 2400f | 503196528 | Stopper Spring This part replaces 503194922. |
