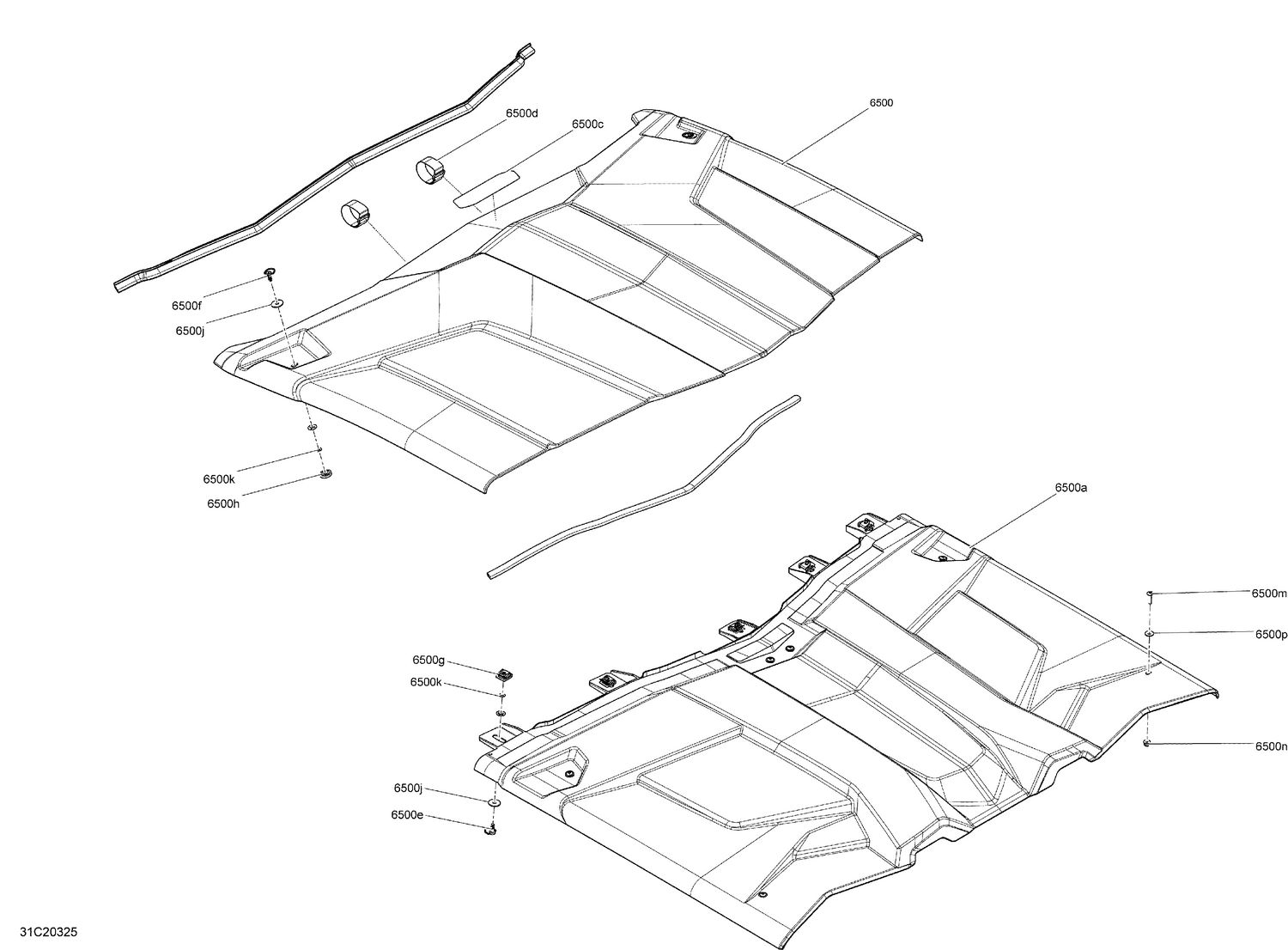

09- Body - Roof Section - XRS
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 6500a | 715003750 | Max Sport Roof |
| 6500c | 704904566 | Decal "Can-Am" |
| 6500d | 705011280 | Strap |
| 6500e | 705002649 | Quarter Turn Screw |
| 6500f | 715003815 | Quarter Turn Service Kit |
| 6500g | 705002651 | Quarter Turn Nut |
| 6500h | 705011055 | Quarter Turn Urethane Washer |
| 6500j | 250200165 | Flat Washer M6 |
| 6500k | 705002650 | Washer |
| 6500m | 250000807 | Torx Truss Screw M6 X 25 |
| 6500n | 233261466 | Hex. Flange Elastic Nut M6 |
| 6500p | 250200029 | Washer M6 |
