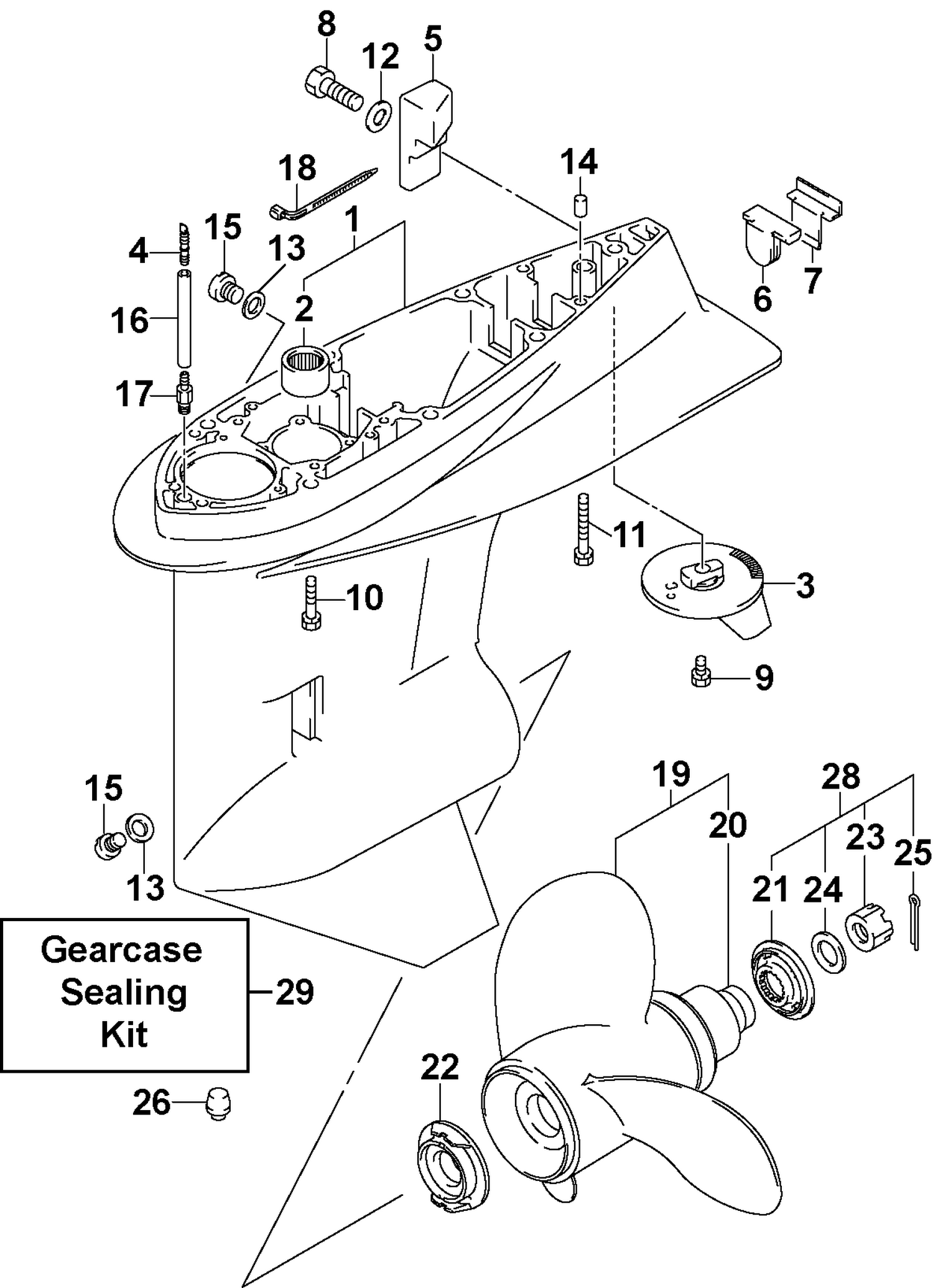

GEARCASE, STANDARD
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036626 | CASE, GEAR This part replaces 5033945. |
| 3 | 5034097 | TAB, TRIM |
| 4 | 5030906 | UNION, SPEEDOMETER HOSE |
| 5 | 5032930 | ANODE, GEAR CASE |
| 6 | 5037215 | RUBBER, EXHAUST SEAL This part replaces 5032544. |
| 7 | 5032545 | PLATE, EXHAUST SEAL |
| 8 | 5030338 | BOLT |
| 9 | 5034400 | BOULON This part replaces 5030395. |
| 10 | 5034788 | BOLT This part replaces 5030400. |
| 11 | 5030401 | BOLT |
| 13 | 5030071 | GASKET |
| 14 | 5030511 | PIN |
| 15 | 5030094 | BOLT (10X7.5mm) |
| 17 | 5030568 | FITTING |
| 22 | 5033954 | STOP, PROPELLER BUSHING |
