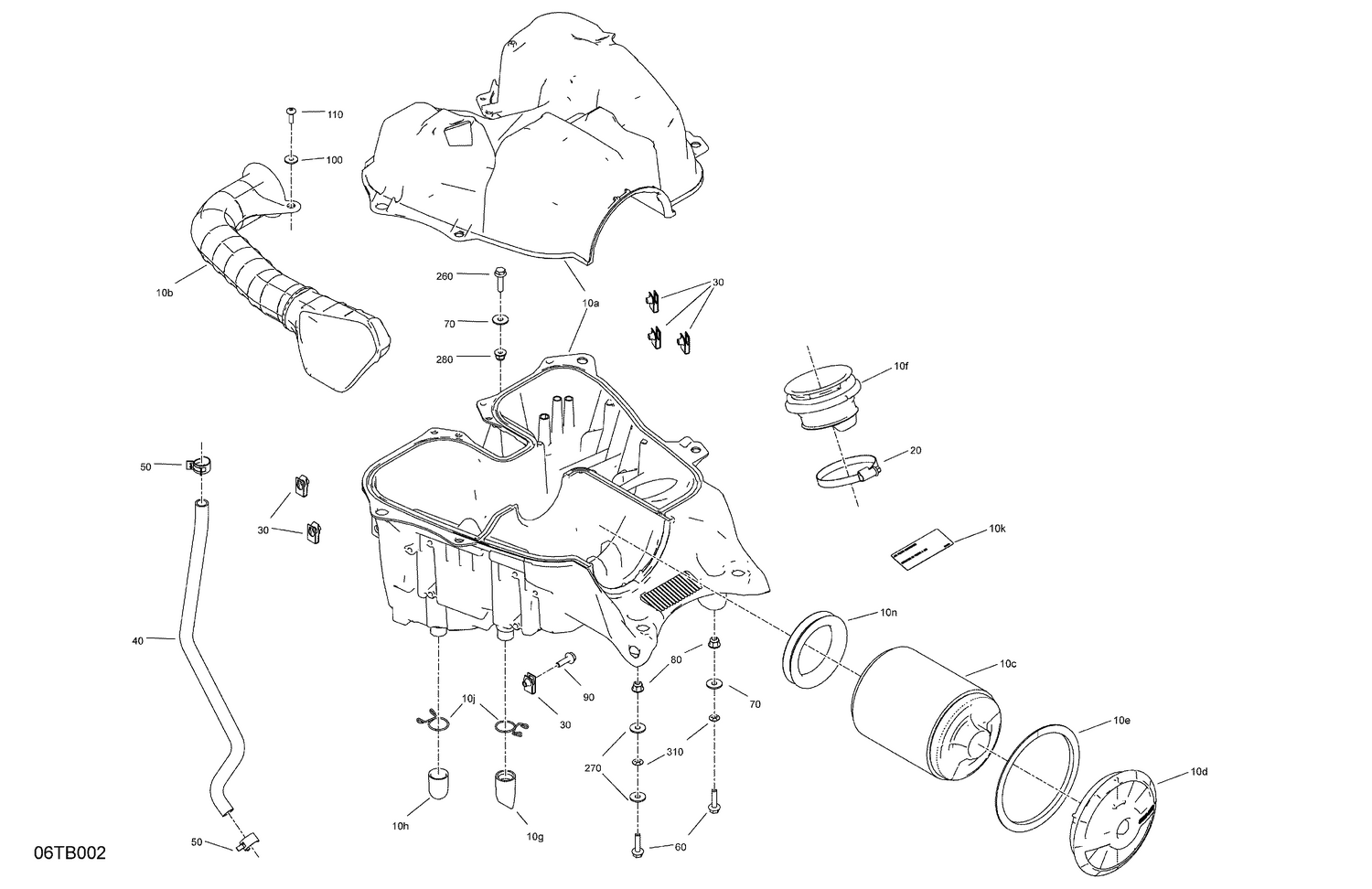

02- Engine - Air Intake
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 707800375 | Air Intake Hose |
| 10c | 707800371 | Air Filter |
| 10d | 715002174 | Intake Silencer Cap Ass'y |
| 10e | 293300175 | Gasket |
| 10f | 707800333 | Intake Adaptor |
| 10g | 707801178 | Drain Valve This part replaces 707800404. |
| 10h | 707800080 | Drain Tube |
| 10j | 707800278 | Retainer Clip |
| 10k | 707800373 | Air Filter Maintenance Decal |
| 10n | 707800470 | Air Filter Adaptor |
| 20 | 293650091 | Norma Clamp |
| 30 | 250100198 | Panel Nut M6 X 1.0 |
| 40 | 707800453 | Vent Hose |
| 50 | 293650110 | Norma Clamp |
| 60 | 207662544 | Hex. Flange Screw M6 X 25 |
| 70 | 250200082 | Flat Washer |
| 80 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 90 | 207662044 | Hex. Flange Screw M6 X 20 |
| 100 | 391301600 | Washer |
| 110 | 250000720 | Torx Screw K50 X 16 |
| 260 | 207662544 | Hex. Flange Screw M6 X 25 |
| 270 | 250200082 | Flat Washer |
| 280 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
