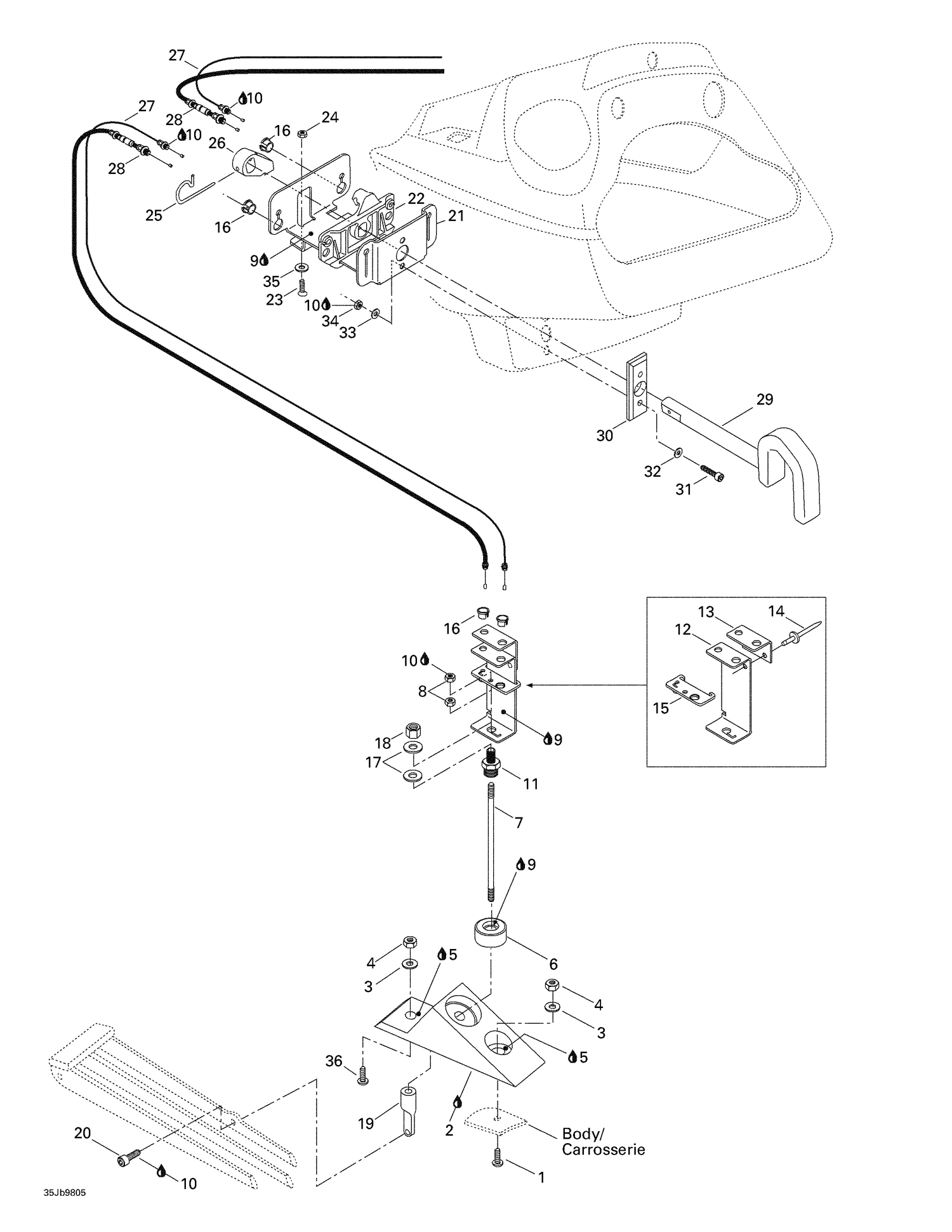

| Ref | Part Number | Description |
|---|
| 1 |
208563060 |
OVAL HEAD PHILLIPS COUNTERSUNK SCREW M6 - Call your local BRP dealership This part replaces 216363060. |
| 2 |
219701421 |
Instant Gasket This part replaces 293800053. |
| 3 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 4 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 5 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 6 |
204200010 |
Rubber Washer |
| 7 |
204200039 |
Weedless Rod |
| 8 |
212100005 |
Hex. Nut |
| 9 |
293550010 |
Synthetic Grease, 400 G |
| 10 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 11 |
204200040 |
Insert Bushing |
| 12 |
204200038 |
Insert Support |
| 13 |
204200049 |
Cable Protector |
| 14 |
204000081 |
Pop Rivet 3/16" |
| 15 |
204200037 |
Rod Guide |
| 16 |
204200042 |
Grommet |
| 17 |
217030000 |
Flat Washer 12 mm (Nylon) |
| 18 |
232521414 |
NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership This part replaces 228521045. |
| 19 |
204200006 |
Joint |
| 20 |
211000103 |
Pivot Screw |
| 21 |
204200030 |
Handle Support |
| 22 |
204200041 |
Handle Guide |
| 23 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership This part replaces 211000147. |
| 24 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 25 |
204200046 |
Weedless Spring |
| 26 |
204200047 |
Catch Reworked |
| 27 |
204200028 |
Weedless Cable Upper |
| 28 |
204200029 |
Weedless Cable Lower |
| 29 |
204200043 |
Handle |
| 30 |
271000057 |
Guide Plate |
| 31 |
205462560 |
SOCKET SCREW M6 X 25 - Call your local BRP dealership This part replaces 211000147. |
| 32 |
217060600 |
Flat Washer 6 mm |
| 33 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 34 |
232561600 |
Hex. Elastic Stop Nut M6 This part replaces 212000001. |
| 35 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
