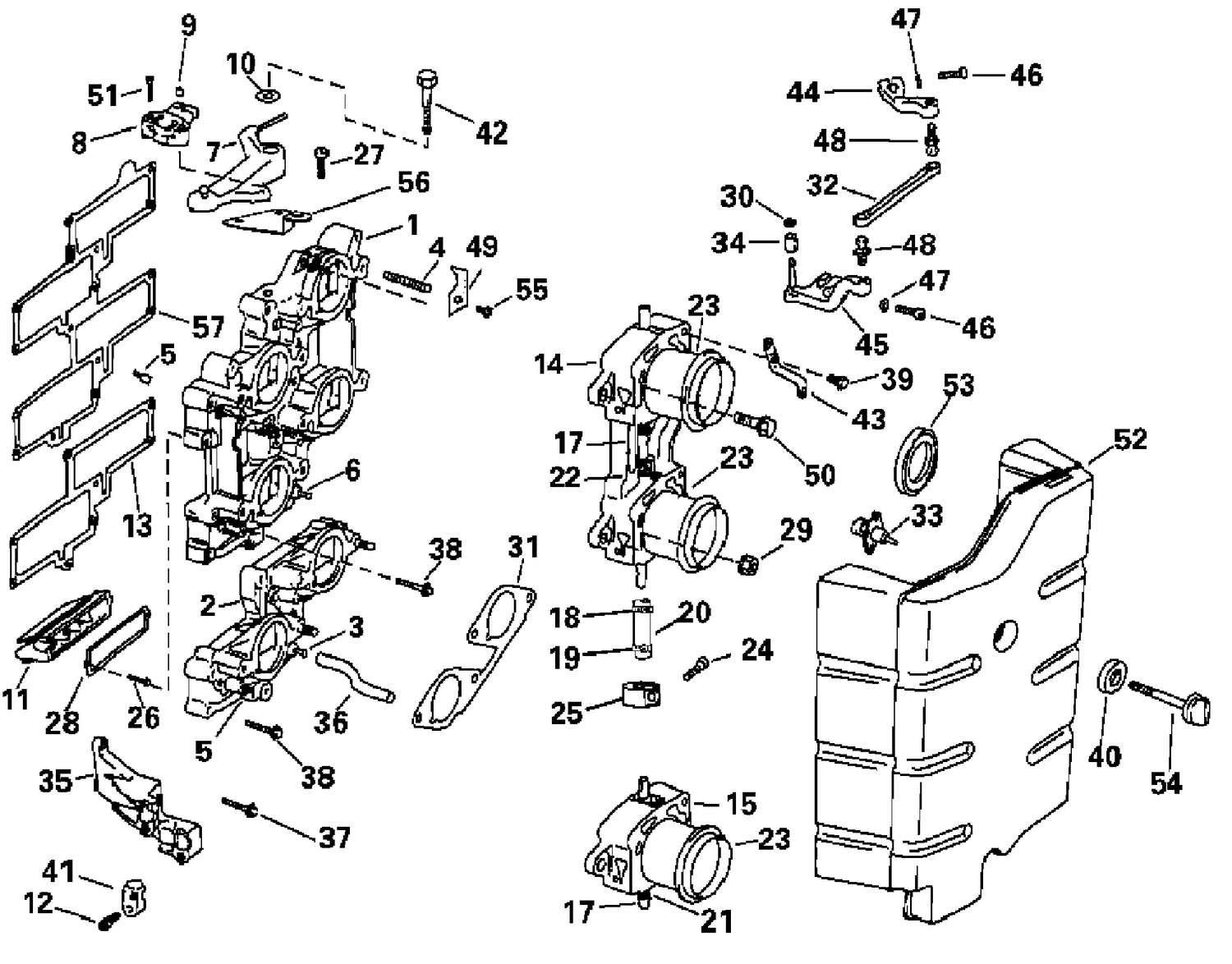

| Ref | Part Number | Description |
|---|
| 1 |
5000886 |
INTAKE MANIFOLD Assy, Upper |
| 2 |
5000887 |
INTAKE MANIFOLD Assy, Lower |
| 7 |
0347254 |
THROTTLE CAM |
| 8 |
5001770 |
SENSOR, Throttle position |
| 10 |
0127386 |
RONDELLE |
| 11 |
5000323 |
REED BOX Assy |
| 14 |
5006411 |
Body Ay This part replaces 5004642. |
| 15 |
5004643 |
THROTTLE BODY, Lower |
| 26 |
0332265 |
SCREW, Cover to base, long |
| 27 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 29 |
0316355 |
BUT, Carburetor mounting |
| 30 |
0324678 |
JOINT TORIQUE Galet de came de papillon |
| 32 |
0341622 |
LINK |
| 34 |
0432639 |
GALET, contre-came |
| 35 |
5007027 |
Kit Ay This part replaces 0341898. |
| 36 |
0344783 |
HOSE, Air silencer drain |
| 39 |
0335200 |
VIS, capteur position de vilebrequin vers support |
| 41 |
0329271 |
CLAMP, Trunnion cable |
| 42 |
0347338 |
SCREW, Cam to C/C |
| 43 |
5000727 |
BRACKET, Air silencer |
| 44 |
0437687 |
LEVER & BALL ASSY., Port |
| 45 |
5004319 |
LEVER Assy, Starboard |
| 49 |
0343985 |
POINTER, Timing |
| 51 |
0306644 |
VIS, capteur de papillon |
| 52 |
0439767 |
AIR SILENCER & SEAL |
| 54 |
0439922 |
FASTENER, Air silencer |
| 55 |
0310379 |
SCREW |
| 56 |
0347106 |
BRACKET, Throttle cam |
