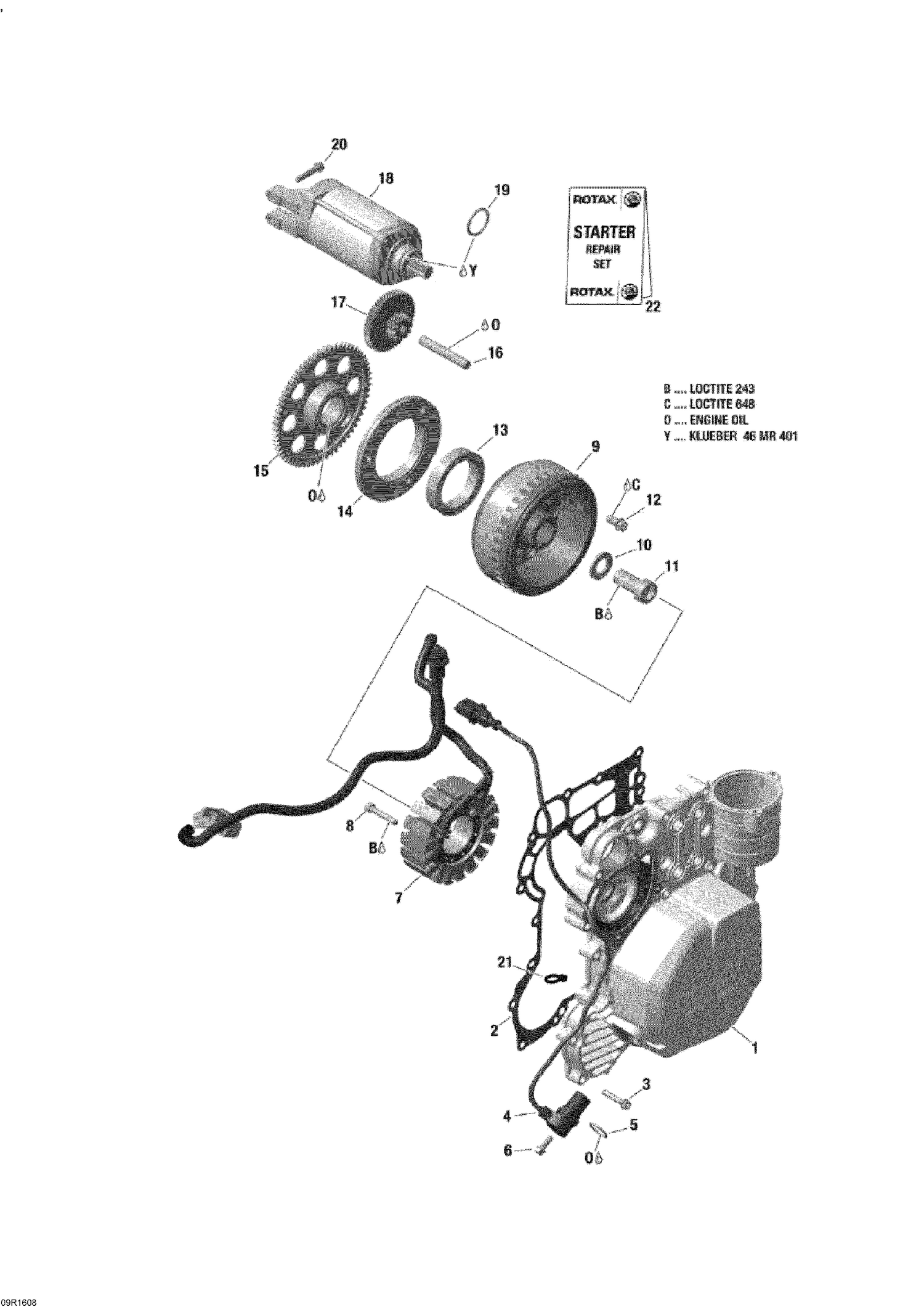

| Ref | Part Number | Description |
|---|
| B |
Not |
Available As Spare Part - Loctite 243 |
| C |
Not |
Available As Spare Part - Loctite 609 |
| O |
Not |
Available As Spare Part - Engine Oil |
| 1 |
420911052 |
Ignition Cover |
| 7 |
420685635 |
Stator Ass'y (650W, 14V) |
| 9 |
420686190 |
Mag. Flywheel With Trigger Wheel Ass'y |
| 10 |
420627270 |
Shim A17 DIN 125 |
| 13 |
420659113 |
Sprag Clutch 51,710x68,377x13 |
| 14 |
420659263 |
Sparg Clutch Housing This part replaces 420659261. |
| 15 |
420434238 |
Free Wheel Gear (64 T) |
| 16 |
420229475 |
Needle Pin ISO 8734-10X65-B-ST |
| 17 |
420634741 |
Starter Double Gear (11/49 T) |
| 21 |
420866714 |
Tie Rap 142x3,2 MM |
| 22 |
420881148 |
Carbon Brush Set This part replaces 420881147. |
