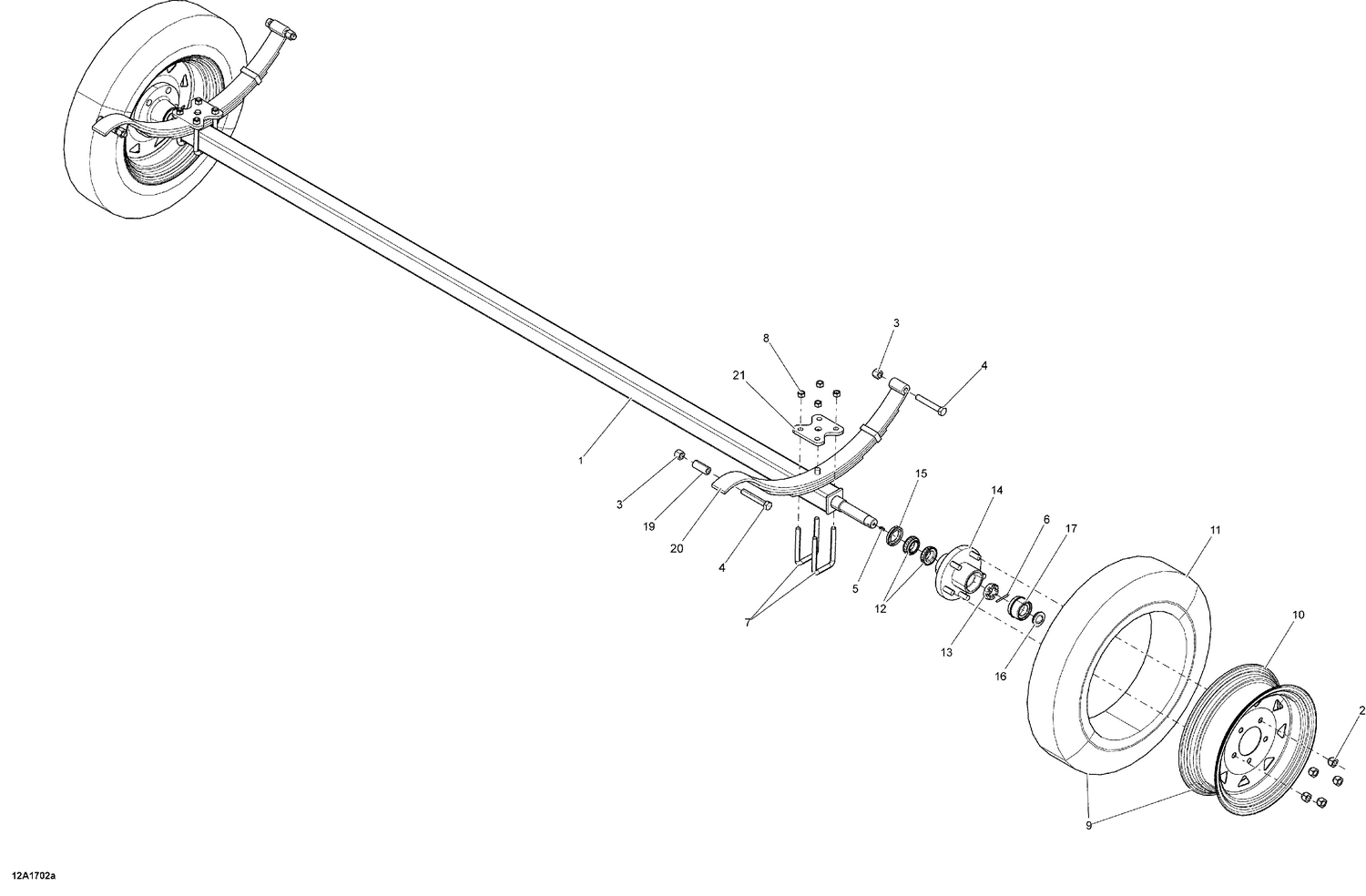

| Ref | Part Number | Description |
|---|
| 1 |
262000300 |
AXLE ASSY - Call your local BRP dealership This part replaces 271001871. |
| 2 |
269800122 |
NUT - Call your local BRP dealership |
| 3 |
269800479 |
NYLON LOCK NUT, 1/2''-13 - Call your local BRP dealership |
| 4 |
269800483 |
HEX. BOLT, 1/2''-13 X 3 1/4'' - Call your local BRP dealership |
| 5 |
269800485 |
GREASE FITTING - Call your local BRP dealership |
| 6 |
269800486 |
SPLIT SAFETY PIN - Call your local BRP dealership |
| 7 |
269800490 |
U-BOLT - Call your local BRP dealership |
| 8 |
269800492 |
CENTER LOCK NUT 7/16'' - Call your local BRP dealership |
| 11 |
271001678 |
TIRE_4,80X12B - Call your local BRP dealership |
| 12 |
271001821 |
CONE BEARING - Call your local BRP dealership |
| 13 |
271001822 |
CROWN NUT, 1-14 NC - Call your local BRP dealership |
| 14 |
271001823 |
HUB 5 STUDS - Call your local BRP dealership |
| 15 |
271001824 |
SEAL JOINT - Call your local BRP dealership |
| 16 |
271001825 |
RUBBER DUST CAP - Call your local BRP dealership |
| 17 |
271001826 |
DUST CAP - Call your local BRP dealership |
| 19 |
279000229 |
BUSHING - Call your local BRP dealership |
| 20 |
279000231 |
Ressort À Glissement 4 Lames - Appelez votre concessionnaire BRP local |
