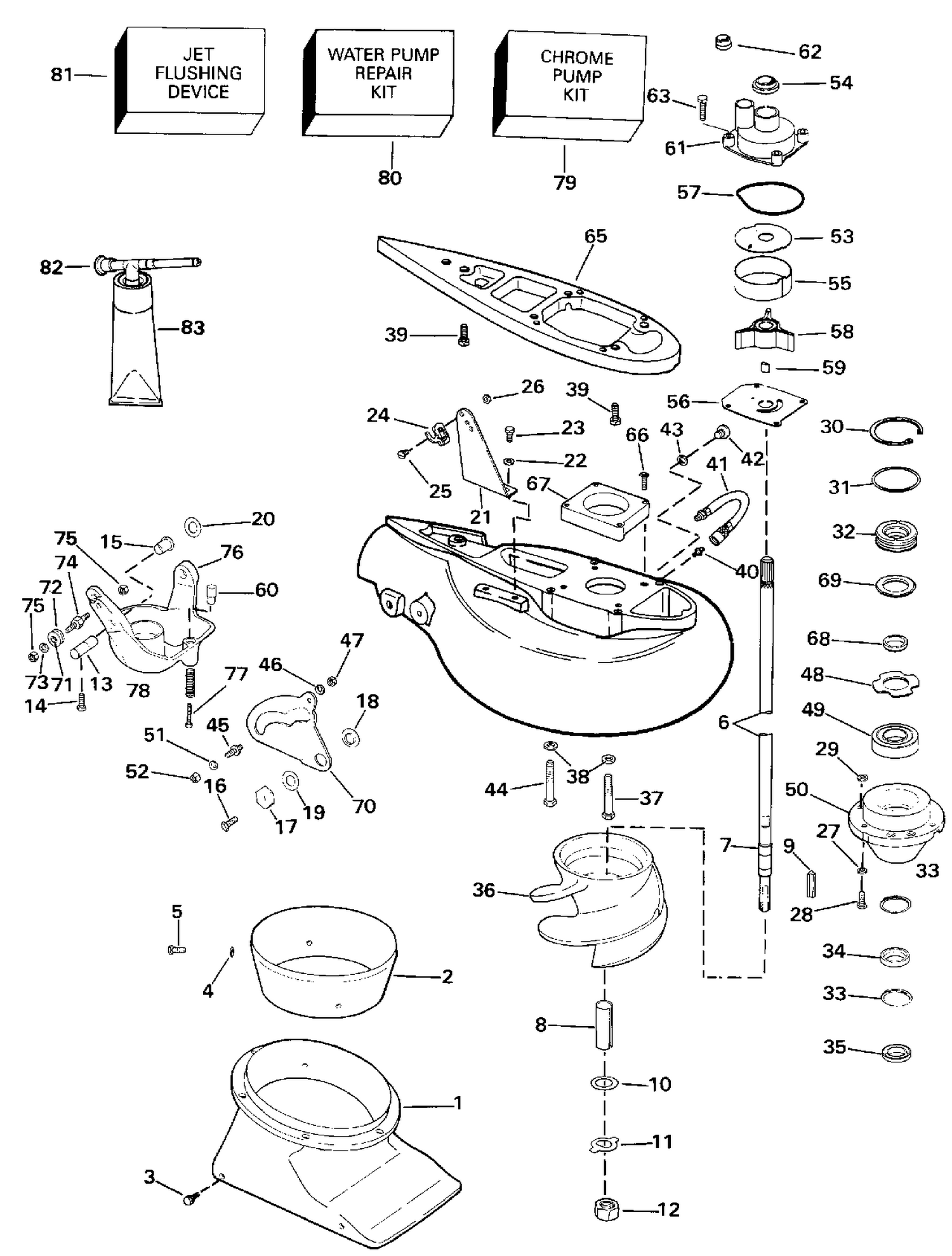

| Ref | Part Number | Description |
|---|
| 1 |
0434709 |
INTAKE ASSY. |
| 2 |
0336940 |
LINER |
| 3 |
0336870 |
BOLT, Intake to housing |
| 4 |
0336869 |
WASHER, Bolt, bearing housing |
| 5 |
0336870 |
BOLT, Intake to housing |
| 6 |
0436141 |
DRIVESHAFT & SLEEVE ASSY. |
| 7 |
0336882 |
THRUST RING |
| 8 |
0336941 |
SLEEVE |
| 9 |
0336927 |
KEY |
| 10 |
0336945 |
SHIM |
| 11 |
0336925 |
KEEPER, Nut |
| 12 |
0336943 |
NUT, Driveshaft |
| 13 |
0336926 |
PIN, Gate |
| 14 |
0336871 |
BOLT, Bearing housing |
| 15 |
0336916 |
BUSHING, Pin |
| 16 |
0336871 |
BOLT, Bearing housing |
| 17 |
0336999 |
ECCENTRIC, Cam |
| 18 |
0337001 |
BUSHING, Cam |
| 19 |
0337003 |
SHIM, Cam |
| 20 |
0337002 |
WASHER |
| 21 |
0336881 |
BRACKET CABLE |
| 22 |
0336868 |
WASHER, Nut |
| 23 |
0342356 |
BOLT, Liner to intake This part replaces 0336935. |
| 25 |
0336874 |
SCREW, Clip to bracket |
| 26 |
0336867 |
NUT, Screw, bracket |
| 27 |
0336869 |
WASHER, Bolt, bearing housing |
| 28 |
0336930 |
BOLT |
| 29 |
0336877 |
O-RING, Bearing housing |
| 30 |
0336915 |
RETAINING RING |
| 31 |
0336936 |
O-RING, Bearing housing |
| 32 |
0336939 |
RING, SEAL |
| 33 |
0336876 |
SPIROLOX |
| 34 |
0336878 |
SEAL, Inner |
| 35 |
0336879 |
SEAL, Outer |
| 36 |
0434704 |
IMPELLER ASSY,. |
| 37 |
0336932 |
SCREW, Exh. hsg |
| 38 |
0336929 |
WASHER, Screw, exh. hsg. |
| 39 |
0336931 |
SCREW, Exh. hsg |
| 40 |
0336872 |
GREASE FITTING |
| 41 |
0434698 |
HOSE ASSY., Lube |
| 42 |
0336861 |
SCREW, Flush |
| 43 |
0336863 |
WASHER, Screw |
| 44 |
0336933 |
SCREW, Exh. hsg., long |
| 45 |
0337009 |
PIVOT, Cable to cam |
| 46 |
0336869 |
WASHER, Bolt, bearing housing |
| 47 |
0337000 |
NUT, Pivot, cam |
| 48 |
0336922 |
THRUST WASHER, Bearing |
| 49 |
0336937 |
BEARING |
| 50 |
0336918 |
BEARING CARRIER |
| 51 |
0336868 |
WASHER, Nut |
| 53 |
0315145 |
PLATE, Chrome |
| 53 |
0321940 |
PLATE |
| 55 |
0319587 |
CUP,IMPELLER HSG |
| 55 |
0324980 |
LINDER, Impeller housing |
| 58 |
0432941 |
IMPELLER |
| 60 |
0337007 |
BUMPER, Gate |
| 61 |
0333783 |
HOUSING, Impeller |
| 65 |
0336919 |
ADAPTER PLATE |
| 66 |
0336934 |
BOLT, Pump adapter |
| 67 |
0336920 |
ADAPTER, Water pump |
| 68 |
0336938 |
COLLAR |
| 69 |
0336923 |
SPACER |
| 70 |
0336860 |
CAM, Shift |
| 71 |
0437820 |
ROLLER & BUSHING This part replaces 0337005. |
| 72 |
0437820 |
ROLLER & BUSHING This part replaces 0337004. |
| 73 |
0336868 |
WASHER, Nut |
| 74 |
0337006 |
NUT, Shaft, gate |
| 76 |
0336859 |
GATE, Reverse |
| 77 |
0336998 |
SCREW, Bumper |
| 78 |
0337008 |
SPRING, Bumper, gate |
| 79 |
0389145 |
CHROME CUP & PLATE KIT |
| 80 |
0438592 |
WATER PUMP REPAIR KIT This part replaces 0433548. |
| 81 |
0435299 |
FLUSHING KIT |
| 82 |
0434697 |
GREASE GUN |
