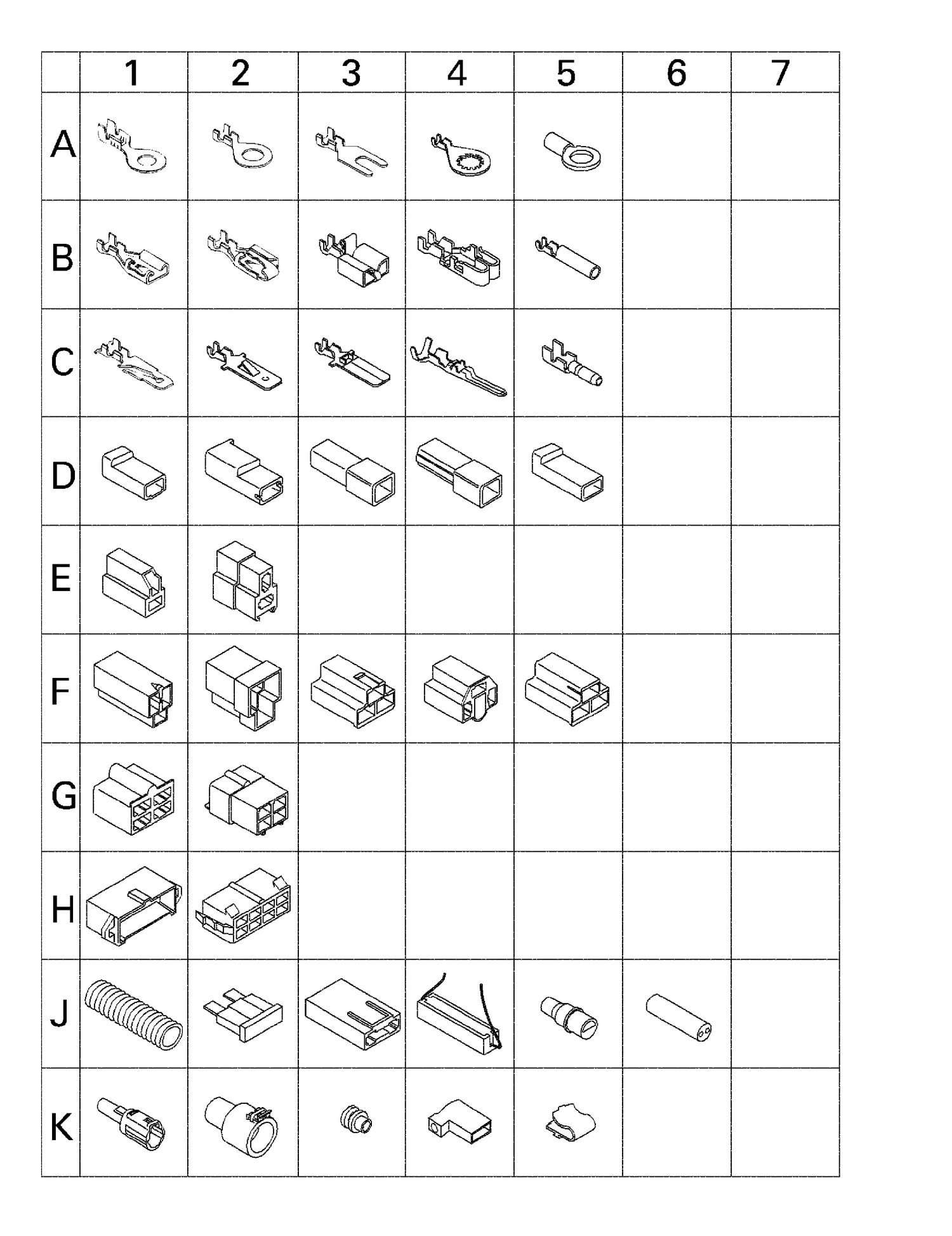

| Ref | Part Number | Description |
|---|
| A5 |
278000992 |
Open Barrel |
| B1 |
409010300 |
Female Terminal |
| B1 |
561503100 |
FEMALE TERMINAL - Call your local BRP dealership This part replaces 409205300. |
| B2 |
409011400 |
Female Terminal(Packard) |
| B2 |
409011500 |
FEMALE TERMINAL - Call your local BRP dealership |
| B2 |
409205100 |
Female Terminal (18/16 gauge) |
| B2 |
561503800 |
Female Terminal (16/14 gauge) |
| B3 |
409010100 |
Female Terminal |
| B4 |
409003600 |
Female Terminal |
| B5 |
278001009 |
Female Terminal This part replaces 290964068. |
| C1 |
409210000 |
MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| C2 |
409201000 |
Male Terminal |
| C3 |
409011100 |
MALE TERMINAL - Call your local BRP dealership |
| C4 |
409011300 |
Male Terminal |
| C5 |
278000230 |
Male Terminal |
| D1 |
409204800 |
Female Terminal Housing (1 circuit) |
| D2 |
409010400 |
Female Terminal Housing, 1 Circuit |
| D3 |
409204700 |
Male Connector Housing (Single) |
| D4 |
409201300 |
Male Connector Housing (Single) |
| D5 |
409201200 |
Female Connector Housing (Single) |
| E1 |
409204600 |
FEMALE TERMINAL HOUSING, 24 CIRCUITS - Call your local BRP dealership |
| E2 |
409204500 |
MALE HOUSING - Call your local BRP dealership |
| F1 |
409204300 |
Female Housing |
| F2 |
409204200 |
FEMALE HOUSING - Call your local BRP dealership |
| F3 |
409008500 |
Female Terminal Housing (3 circuits) |
| F4 |
409202700 |
FEMALE TERMINAL HOUSING, 3 CIRCUITS - Call your local BRP dealership |
| F5 |
409008600 |
Male Terminal Housing (3 circuits) |
| G1 |
409204900 |
FEMALE HOUSING - Call your local BRP dealership |
| G2 |
409209300 |
MALE HOUSING - Call your local BRP dealership |
| H1 |
572151500 |
Male Connector Housing (8) |
| H2 |
572151200 |
Female Connector Housing (8) |
| J1 |
219704399 |
Was 409901700 Tubing (9 mm) |
| J1 |
219704400 |
Was 409901800 Tubing (13 mm) |
| J1 |
219704407 |
Tubing 10 MM 1000MM Long |
| J1 |
410112800 |
Tubing |
| J1 |
410112900 |
Tubing (Meter) |
| J2 |
410917200 |
Fuse, 30 Amperes |
| J3 |
409004000 |
Fuse Holder |
| J4 |
515175241 |
Resistance This part replaces 410911000. |
| J5 |
278001008 |
Insulated Sheath |
| J6 |
278001007 |
Insulated Sheath |
| K1 |
409208800 |
Male Connector Housing (1 Circuit) |
| K2 |
409207900 |
MALE HOUSING - Call your local BRP dealership |
| K3 |
409012300 |
Seal |
| K3 |
409208500 |
SEAL - Call your local BRP dealership |
| K4 |
409010300 |
Female Terminal |
