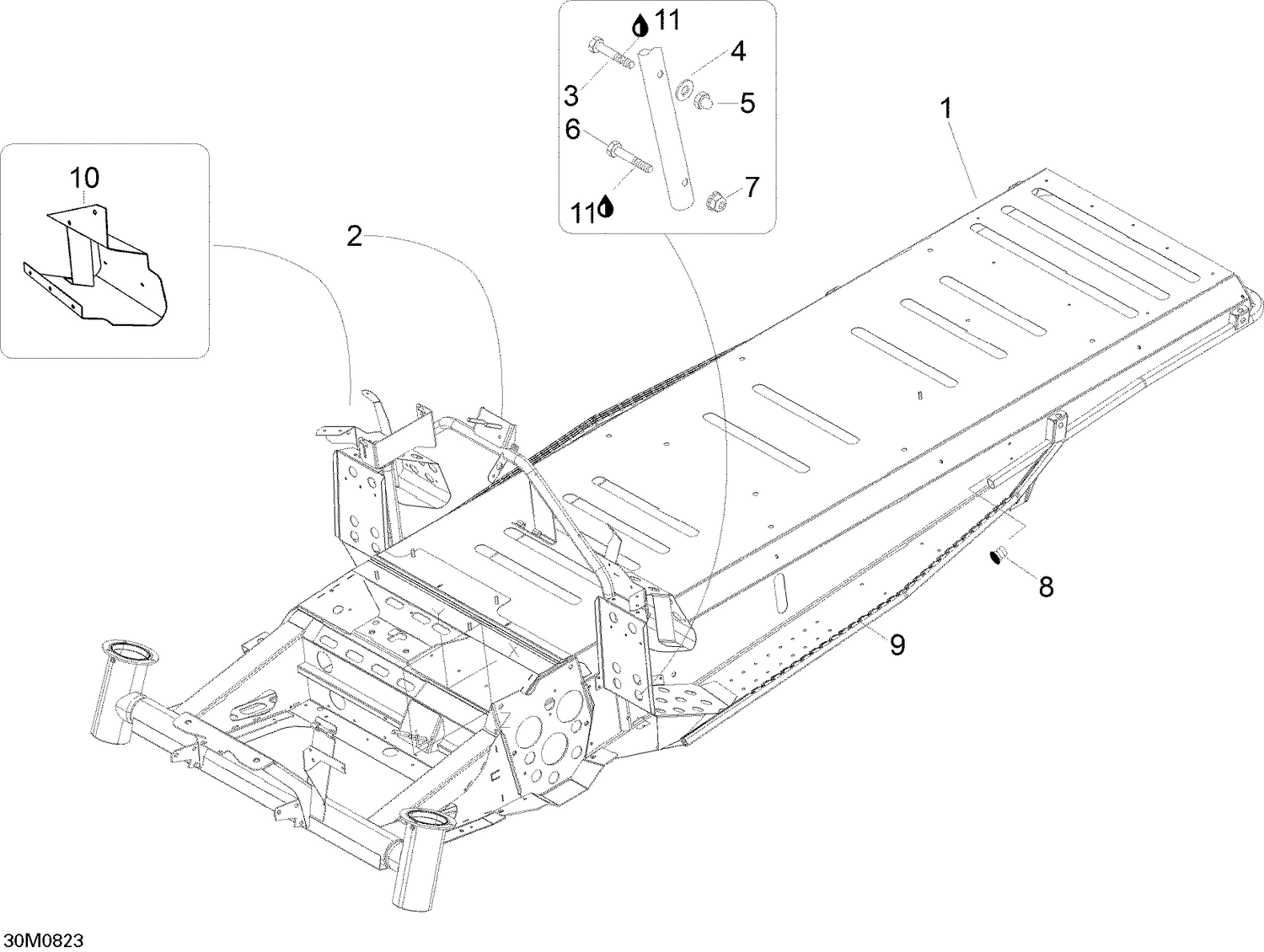

09- Frame
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 605153465 | Bar Support |
| 3 | M40003 | Hex. Screw |
| 4 | 234061410 | Flat Washer 6 mm |
| 5 | 232061414 | Hex. Nut M6 |
| 6 | 207064044 | Hex. Screw M6 X 40 |
| 7 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 8 | M28210 | Plug |
| 9 | 605253506 | RH REINFORCEMENT - Call your local BRP dealership |
| 9 | 605253507 | LH REINFORCEMENT - Call your local BRP dealership |
| 10 | 605253504 | RH TOE REST - Call your local BRP dealership |
| 10 | 605253505 | LH TOE REST - Call your local BRP dealership |
