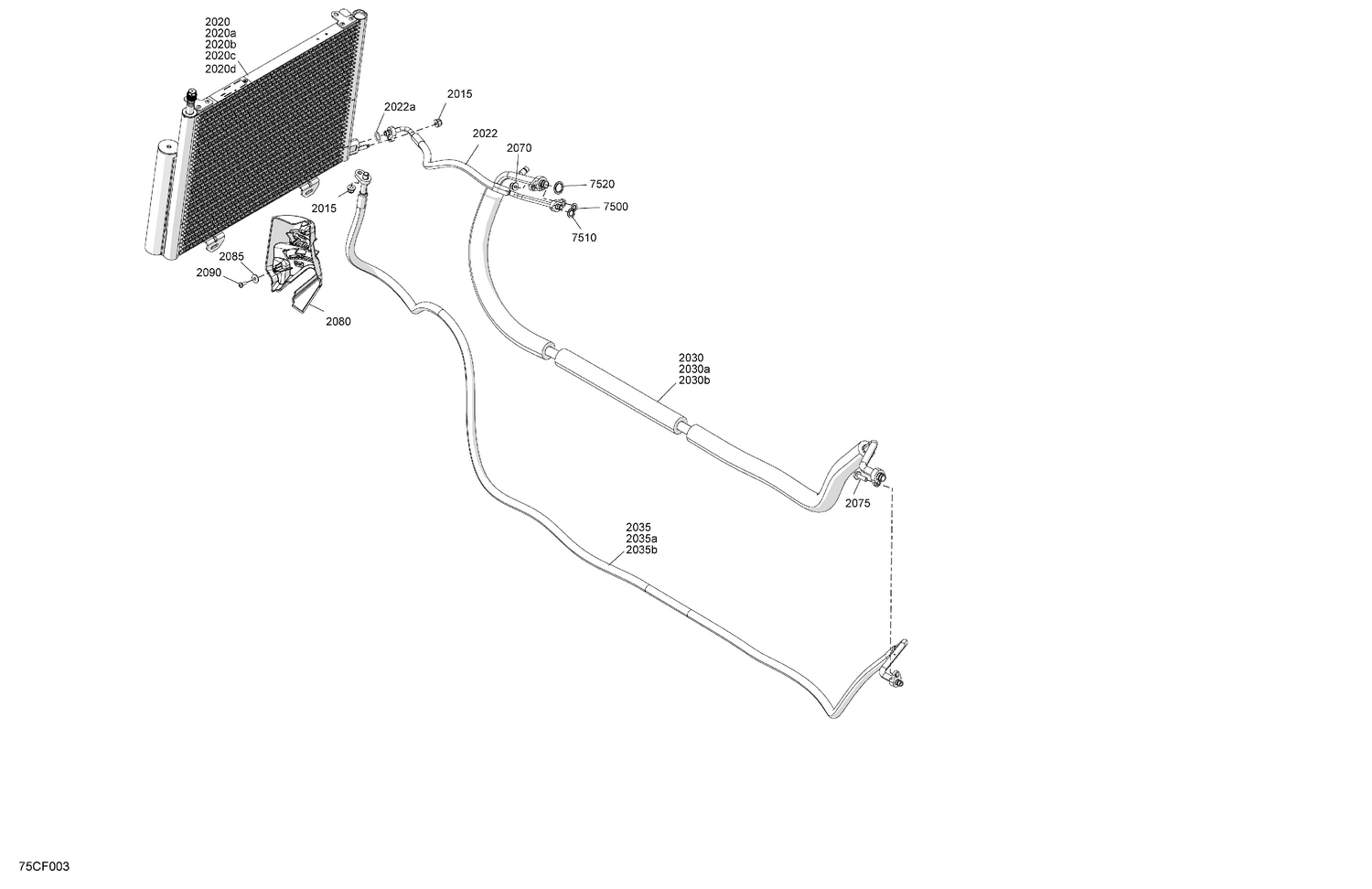

07- Enclosure Cab - Air Conditioning Condenser
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 2015 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2020a | 715900678 | Plastic Cap |
| 2020b | 715900673 | Pressure Switch |
| 2020c | 715900672 | Dessicant Cartridge |
| 2020d | 715900915 | O-RIng |
| 2022a | 715900707 | O'Ring |
| 2030a | 715900708 | O'Ring |
| 2030b | 715900709 | Plastic Cap |
| 2035a | 715900673 | Pressure Switch |
| 2035b | 715900707 | O'Ring |
| 2070 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2075 | 233281414 | Hex. Flange Elastic Nut M8 |
| 2080 | 705800779 | Hose Support |
| 2085 | 234062670 | Stainless Steel Flat Washer |
| 2090 | 250000720 | Torx Screw K50 X 16 |
| 7500 | 705801218 | O-Ring Seal |
| 7510 | 705801219 | O-Ring Seal |
