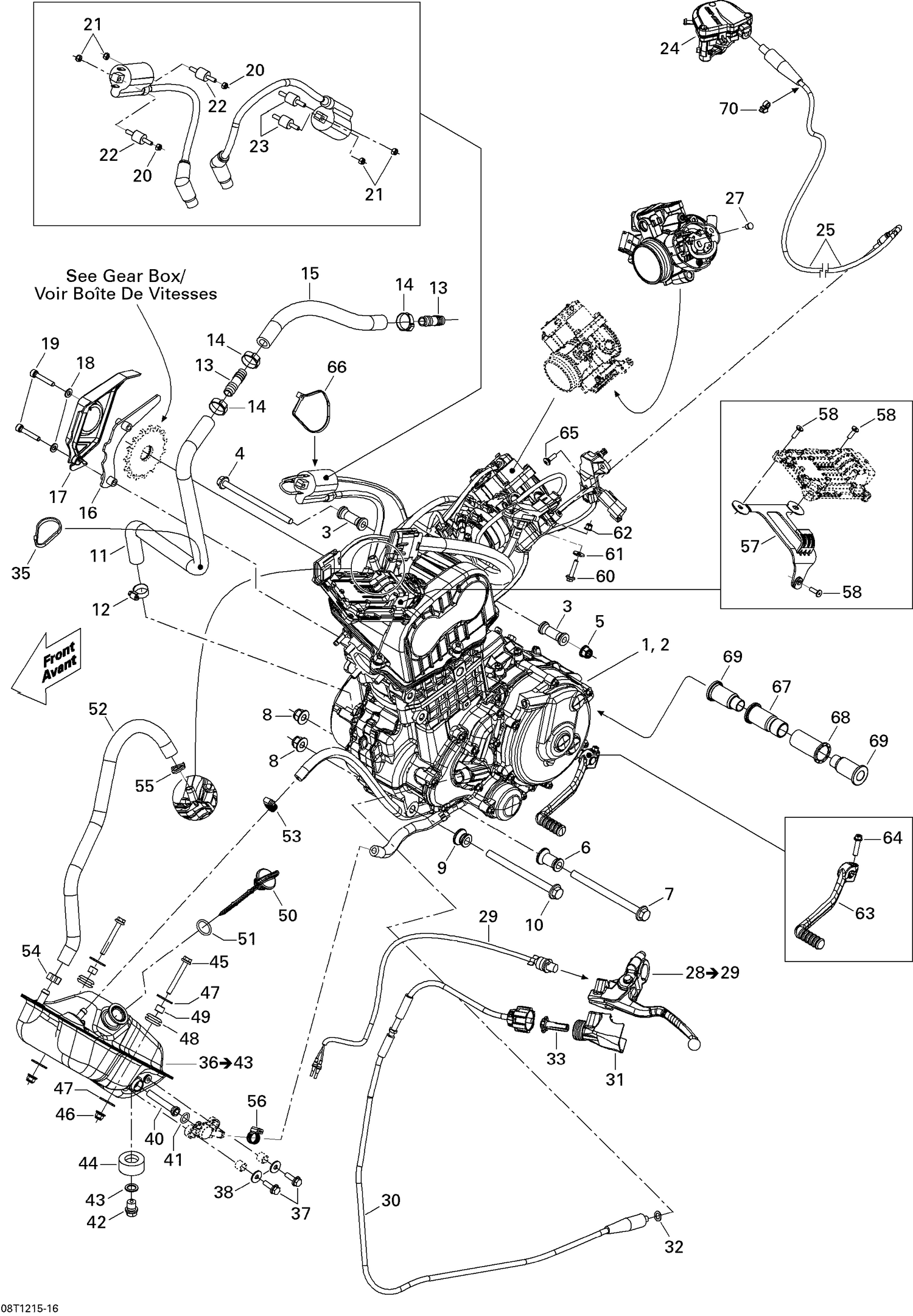

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine Rotax 4 Stroke, 449 EFI |
| 2 |
420044904 |
LONG BLOCK, 449 EFI ENGINE - Call your local BRP dealership |
| 3 |
293900071 |
SPACER - Call your local BRP dealership |
| 4 |
230683034 |
Hex. Flange Screw M8 X 130 |
| 5 |
233281434 |
Hex. Flange Elastic Nut M8 |
| 6 |
293900072 |
SPACER - Call your local BRP dealership |
| 7 |
230603536 |
HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership |
| 8 |
233201434 |
Hex. Flange Elastic Nut M10 |
| 9 |
293900074 |
SPACER - Call your local BRP dealership |
| 10 |
230603036 |
HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership |
| 11 |
707000502 |
Hose |
| 12 |
293650172 |
Tridon Gear Clamp |
| 13 |
293710119 |
CONNECTOR - Call your local BRP dealership |
| 14 |
293650012 |
Oetiker Clamp |
| 15 |
707000537 |
HOSE 12 MM - Call your local BRP dealership |
| 16 |
707000464 |
CHAIN GUARD - Call your local BRP dealership |
| 17 |
707000425 |
SPROCKET COVER - Call your local BRP dealership |
| 18 |
234061430 |
Flat Washer M6 |
| 19 |
205563536 |
SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 20 |
233251434 |
Flange Elastic Nut M5 |
| 21 |
232551414 |
Elastic Stop Nut M5 |
| 22 |
707000746 |
Rubber Mount |
| 23 |
707000746 |
Rubber Mount |
| 24 |
707000440 |
THROTTLE HANDLE - Call your local BRP dealership |
| 25 |
707000439 |
THROTTLE CABLE - Call your local BRP dealership |
| 27 |
707000434 |
Cable Guide |
| 29 |
707000183 |
LEVER SHIFTER SWITCH - Call your local BRP dealership |
| 30 |
707000422 |
Clutch Cable |
| 31 |
293830122 |
BOOT - Call your local BRP dealership |
| 32 |
504082900 |
Washer |
| 33 |
707000602 |
SCREW - Call your local BRP dealership |
| 35 |
414115200 |
Tie-Rap 180 mm |
| 37 |
207662034 |
Hex. Flange Screw M6 X 20 |
| 38 |
234062410 |
Flat Washer 6 mm This part replaces 234062430. |
| 40 |
519000144 |
STRAINER - Call your local BRP dealership |
| 41 |
293300128 |
O-Ring |
| 42 |
250500010 |
Plug |
| 43 |
250200061 |
Copper Washer |
| 44 |
705001678 |
RUBBER STOPPER - Call your local BRP dealership |
| 45 |
207665034 |
HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership |
| 46 |
233261434 |
Flange Elastic Nut M6 |
| 47 |
250200099 |
FLAT WASHER - Call your local BRP dealership |
| 48 |
293720062 |
Grommet |
| 49 |
293900089 |
SPACER - Call your local BRP dealership |
| 50 |
707000526 |
Oil Cap |
| 51 |
709000089 |
O-Ring |
| 52 |
707000544 |
HOSE - Call your local BRP dealership |
| 53 |
293650171 |
Tridon Gear Clamp |
| 54 |
293650011 |
Oetiker Clamp |
| 55 |
293650180 |
ROTOCLIP CLAMP - Call your local BRP dealership |
| 56 |
293650171 |
Tridon Gear Clamp |
| 57 |
710000972 |
MODULE SUPPORT - Call your local BRP dealership |
| 58 |
250000295 |
SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership |
| 60 |
207652544 |
Hex. Flange Screw M5 X 25 |
| 61 |
391301600 |
Washer |
| 62 |
233251434 |
Flange Elastic Nut M5 |
| 63 |
420248540 |
Gearshift Pedal |
| 64 |
420440234 |
Torx Flange Screw M6 X 25 |
| 65 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 66 |
293750008 |
Tie Wrap 368 mm |
| 67 |
707000947 |
RH SPACER - Call your local BRP dealership |
| 68 |
707001749 |
SPACER - Call your local BRP dealership This part replaces 707000948. |
| 69 |
707000800 |
RUBBER MOUNT - Call your local BRP dealership |
