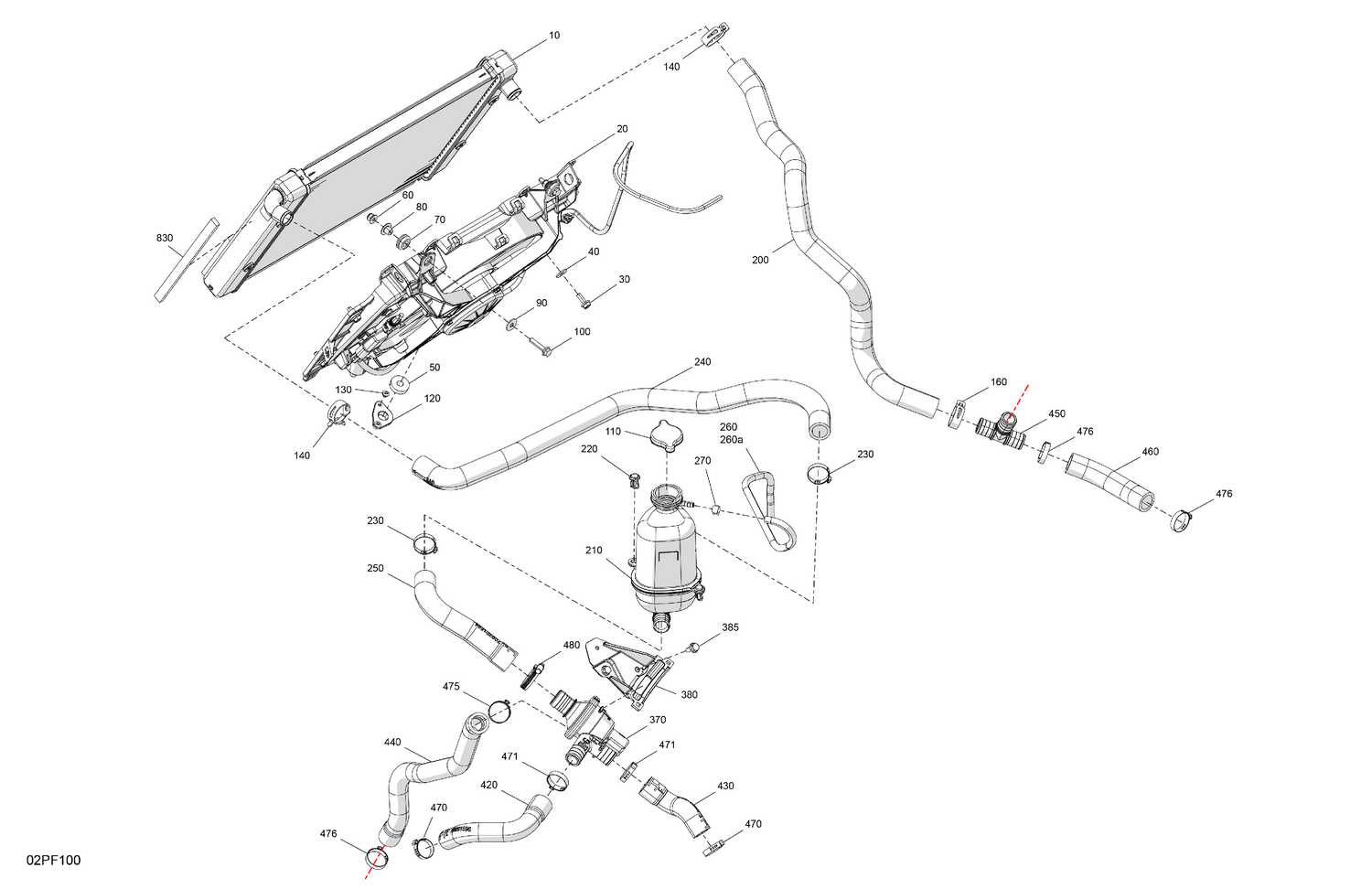

02- Engine - Cooling
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 709201126 | Radiator |
| 20 | 709201622 | Cooling Fan |
| 30 | 250000906 | Hex Flange Screw M6 X 16 |
| 40 | 234062410 | Flat Washer 6 mm |
| 50 | 709200948 | Grommet |
| 60 | 233261466 | Hex. Flange Elastic Nut M6 |
| 70 | 293720130 | Overmolded Grommet |
| 80 | 709001288 | Bushing |
| 90 | 250200082 | Flat Washer |
| 100 | 207663046 | Hex. Flange Screw M6 X 30 |
| 110 | 709200207 | Radiator Pressure Cap |
| 120 | 709201149 | Radiator Support |
| 130 | 293150293 | Pop Rivet 3/16 X ,425 |
| 140 | 293650108 | Norma Spring Clamp |
| 160 | 293650108 | Norma Spring Clamp |
| 200 | 709201590 | Radiator Hose |
| 210 | 715009560 | Coolant Tank |
| 220 | 293150230 | Tuflok Plastic Rivet |
| 230 | 293650331 | Crimp Clamp |
| 240 | 709201592 | Radiator Hose |
| 250 | 709201594 | Hose |
| 260a | XXX | Not Available As Spare Parts |
| 270 | 414554800 | Spring Clamp |
| 370 | 709201279 | Housing |
| 380 | 709201282 | Thermostat Support |
| 385 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 420 | 709201596 | Thermostat Hose |
| 430 | 709201597 | Thermostat Hose |
| 440 | 709201598 | Thermostat Hose |
| 450 | 709201420 | T-Fitting |
| 460 | 709201599 | Water Pump Hose |
| 470 | 293650099 | Crimp Clamp |
| 471 | 293650331 | Crimp Clamp |
| 475 | 293650331 | Crimp Clamp |
| 476 | 293650331 | Crimp Clamp |
| 480 | 293650098 | Norma Gear Clamp |
