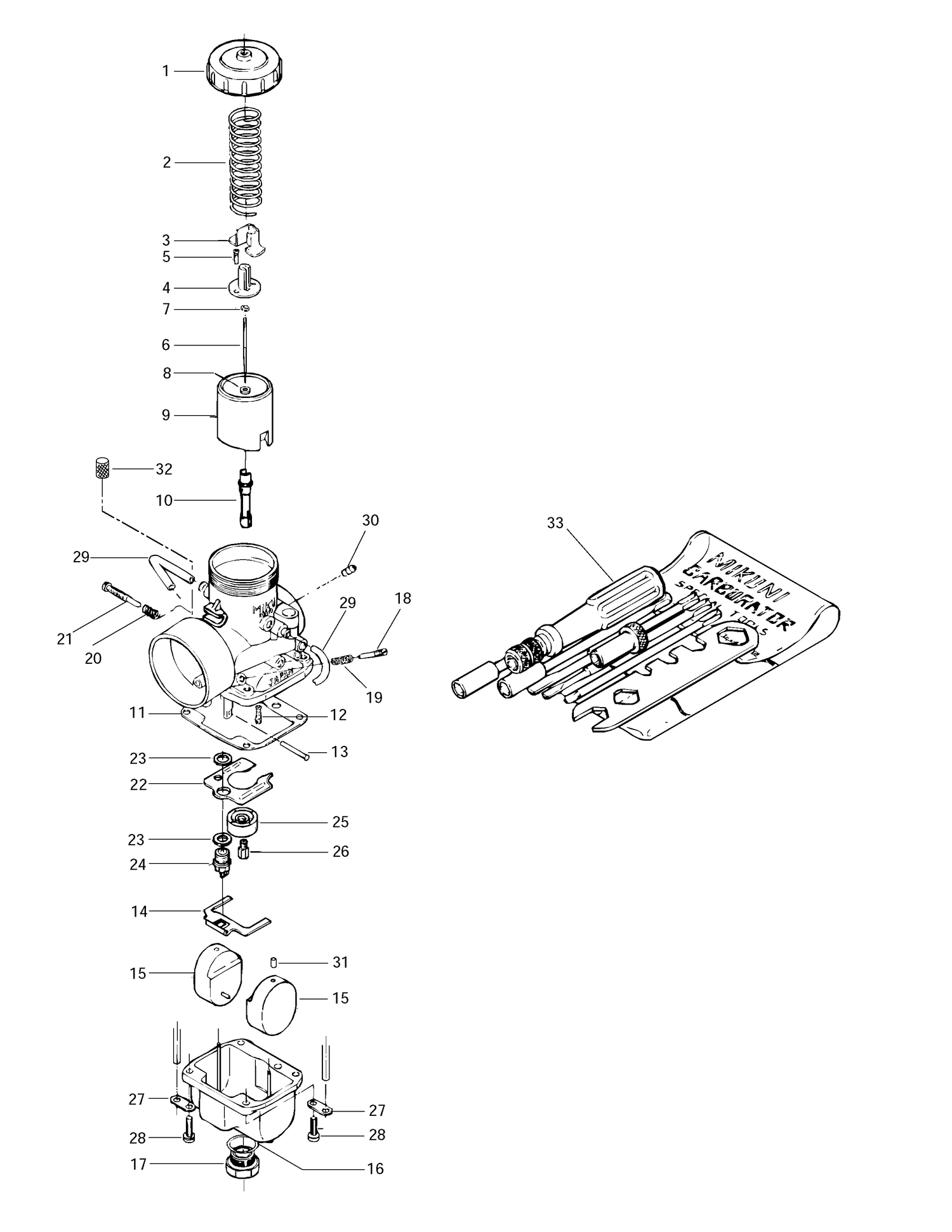

02- Carburetors
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 404103700 | Cover |
| 2 | 404154800 | Spring |
| 3 | 404122100 | Cover |
| 4 | 404160800 | CONNECTOR - Call your local BRP dealership This part replaces 404122900. |
| 7 | 404152400 | E-Ring |
| 8 | 404117000 | Packing |
| 9 | 404128400 | Piston Valve 2.5 |
| 11 | 404104200 | Gasket |
| 13 | 404103300 | Lever Pin |
| 14 | 404107600 | Float Lever |
| 15 | 404107100 | FLOAT - Call your local BRP dealership |
| 16 | 404107300 | O-Ring |
| 18 | 404149000 | AIR SCREW - Call your local BRP dealership |
| 19 | 404139800 | SPRING - Call your local BRP dealership |
| 20 | 404101700 | Spring |
| 21 | 404125200 | THROTTLE SCREW - Call your local BRP dealership |
| 22 | 404109600 | BAFFLE - Call your local BRP dealership |
| 23 | 404101600 | Seat Washer |
| 24 | 404147400 | Needle Valve 1.5 |
| 25 | 404110900 | BAFFLE RING - Call your local BRP dealership |
| 27 | 404103000 | PLATE - Call your local BRP dealership |
| 29 | 404109800 | Hose |
| 30 | 404153400 | Nipple |
| 31 | 404105800 | Cap |
| 32 | 404158900 | Filter |
| 33 | 404112000 | TOOL KIT - Call your local BRP dealership |
