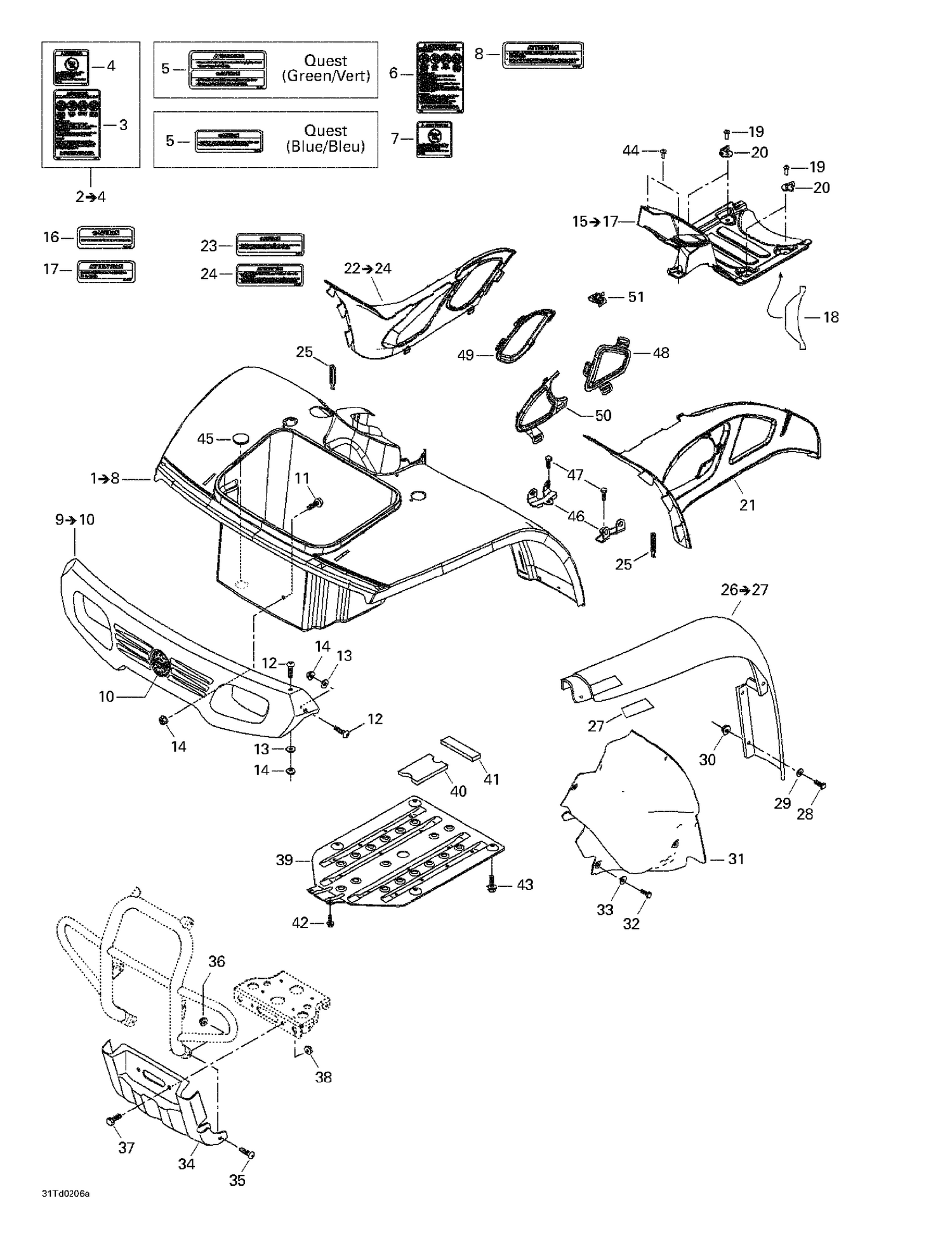

| Ref | Part Number | Description |
|---|
| 10 |
516008739 |
BRP Logo 68mm This part replaces 704900130. |
| 11 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 12 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 13 |
224060201 |
Flat Washer |
| 14 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 18 |
705000541 |
Reflective Sheet |
| 19 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 20 |
705000369 |
HOOK, BLACK - Call your local BRP dealership |
| 25 |
570023800 |
Windshield Latch |
| 27 |
705000083 |
LH FRONT REFLECTOR - Call your local BRP dealership |
| 28 |
207162044 |
Hex. Screw M6 X 20 |
| 29 |
224060201 |
Flat Washer |
| 30 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 31 |
705000133 |
LH TANK PROTECTOR - Call your local BRP dealership |
| 32 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 33 |
224061201 |
Flat Washer |
| 34 |
705000340 |
Protector plate |
| 35 |
250000080 |
PHIL-TRUSS M/S-GM6047M - Call your local BRP dealership This part replaces 211000123. |
| 36 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 37 |
207602544 |
Hex. Flange Screw M10 X 25 |
| 38 |
233201414 |
Hex. Flange Elastic Nut M10 |
| 39 |
705000308 |
Motor Protector |
| 40 |
293830092 |
Rubber Protector |
| 41 |
293830012 |
Rubber Strip |
| 44 |
414745900 |
Tuflock Phillips Plastic Screw |
| 45 |
570041600 |
Rubber Cover |
| 46 |
705000311 |
Bracket, Black |
| 47 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 48 |
705000367 |
LH Rear Grill, Black |
| 49 |
705000366 |
RH Rear Grill, Black |
| 50 |
705000368 |
LH Front Grill |
| 703500149 |
Garde-boue |
Arrière DR 703500149 |
| 705000026 |
Bande |
Réflechissante Avant DR - Appelez votre concessionnaire BRP local 705000026 |
| 705000026 |
RH |
FRONT REFLECTOR - Call your local BRP dealership 705000026 |
| 705000134 |
Protecteur |
De Réservoir DR - Appelez votre concessionnaire BRP local 705000134 |
| 705000134 |
RH |
TANK PROTECTOR - Call your local BRP dealership 705000134 |
