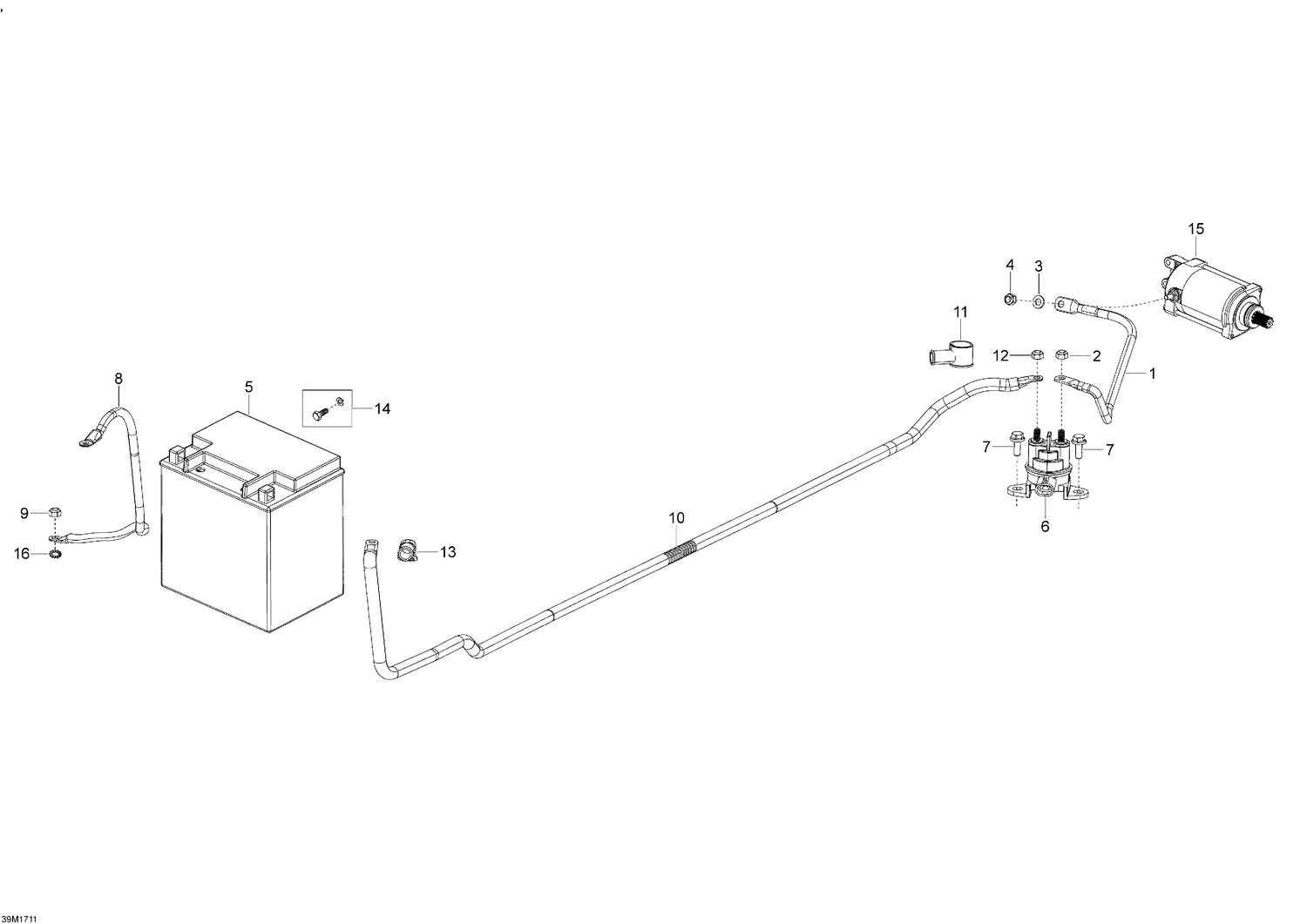

10- Battery And Starter 2018
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 232561434 | Elastic Stop Nut M6 |
| 3 | 234061410 | Flat Washer 6 mm |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 6 | 278003012 | Starter Relay |
| 7 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 8 | 515176777 | Ground Wire |
| 9 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 10 | 515176778 | BATTERY WIRE - Call your local BRP dealership |
| 12 | 232561434 | Elastic Stop Nut M6 |
| 14 | 250000282 | Battery Bolt Kit |
| 15 | 420892435 | Electric Starter Ass'y This part replaces 420892429. |
