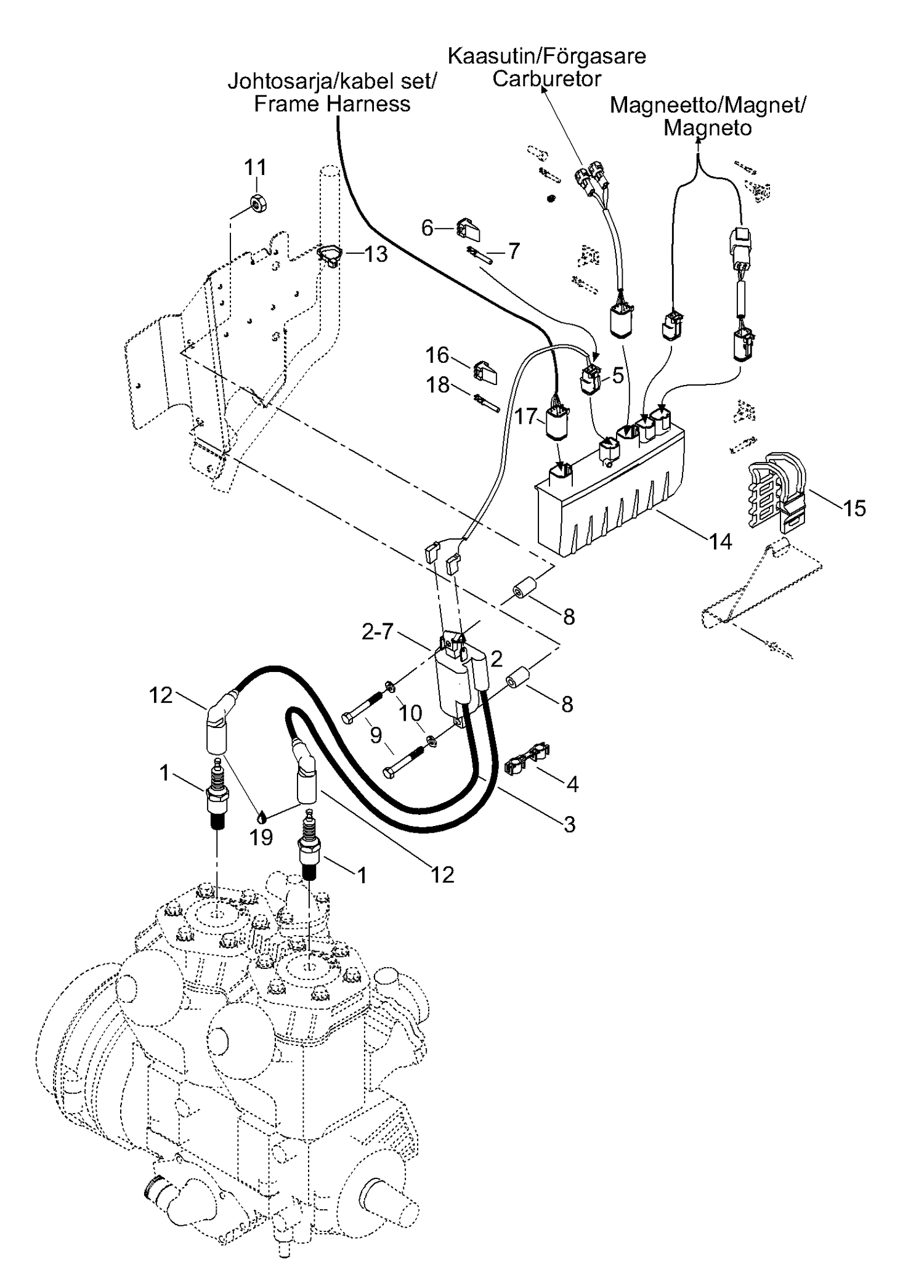

01- DPM
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 512059533 | Spark Plug NGK BR9ECS-5 |
| 2 | 512059564 | IGNITION COIL - Call your local BRP dealership |
| 3 | 512059499 | Ignition cable 515 mm |
| 3 | 512059500 | Ignition cable 595 mm |
| 4 | 410914600 | Plastic clip |
| 5 | 42610 | Female terminal housing |
| 6 | 42609 | Female lock (2 circuits) |
| 7 | 278000632 | Female terminal |
| 8 | 544419 | Sleeve |
| 9 | 40084 | Screw M6 x 45 |
| 10 | 20052 | Spring washer |
| 11 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 12 | 278000237 | SPARK PLUG CAP - Call your local BRP dealership |
| 13 | 27036 | Tie rap |
| 14 | 512059466 | Calibration module |
| 15 | 570069700 | LATCH - Call your local BRP dealership |
| 16 | 515175705 | Female lock (6 circuits) |
| 17 | 515175673 | Female terminal housing |
| 18 | 278000632 | Female terminal |
