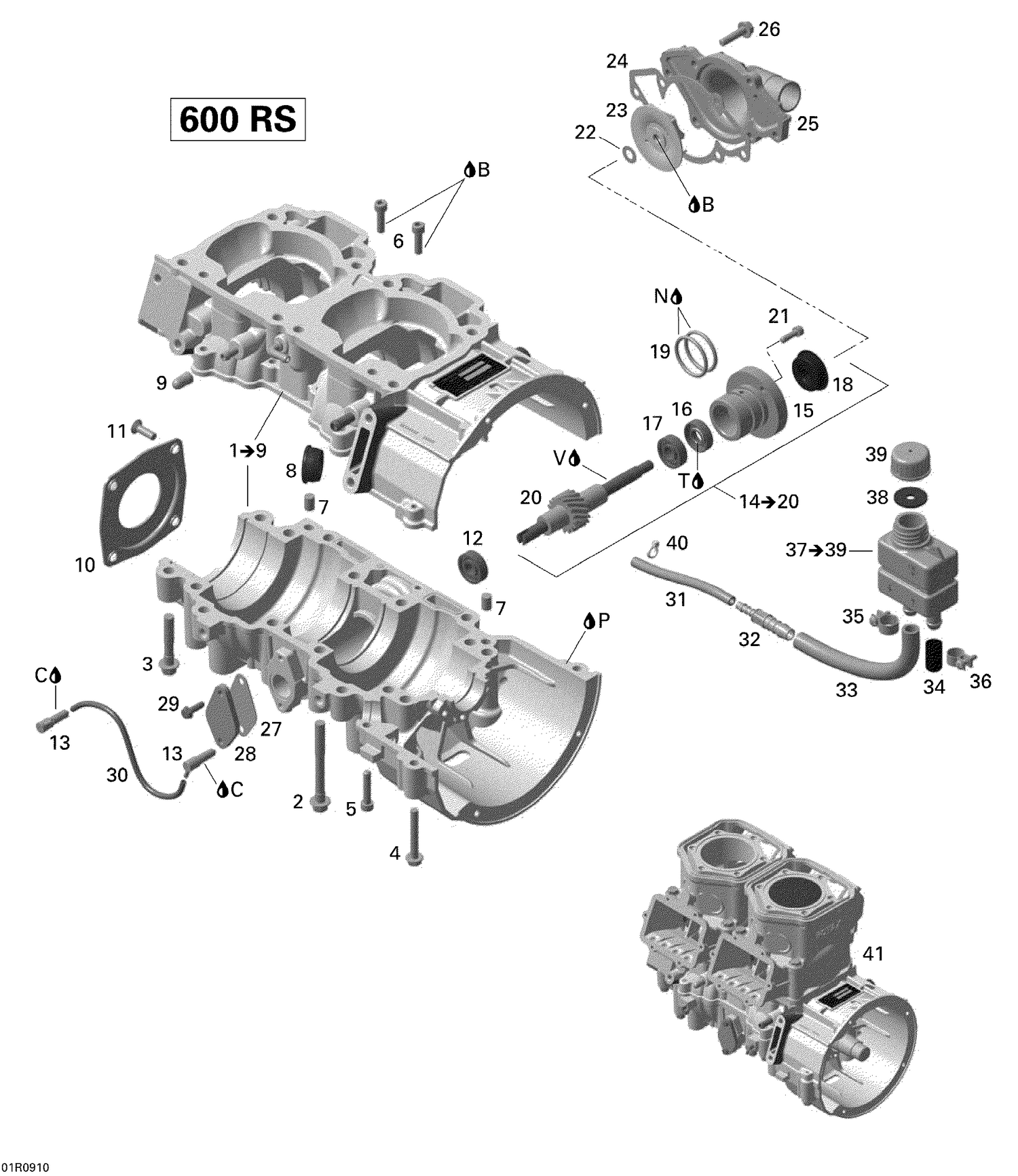

01- Crankcase — Parts Catalog

Parts (43)

Ref	Part Number	Description
B	293800060	Loctite 243, 10 ml
C	219703000	Sealant Loctite 648 This part replaces 413711400.
N	413707000	Dow Corning 111, 150 g
P	293800081	Loctite 5910, 300 ml
T	420899271	Petamo Grease, GHY133N, 400 g
2	420640836	Hex. Collar Screw M8 X 75
3	420640433	Collar Hex Screw M8 X 45 This part replaces 420640431.
4	420640312	Allen Screw M6 x 45 This part replaces 420640311.
5	205063044	Socket Head Screw M6 X 30
6	420840403	Allen Screw M6 x 22 This part replaces 420840401.
7	420632010	Center Pin 8 X 12
8	420860965	Cable Grommet
9	420960770	Cap
10	420812422	Oil Seal Cover This part replaces 420812420.
11	420941436	Screw M6 X 20
12	420232100	Ball Bearing
13	420956511	Check Valve This part replaces 420956510.
15	Not	Available As Spare Part - Step Collar
16	420230195	Oil Seal This part replaces 420230196.
17	420232100	Ball Bearing
18	420650371	Rotary Seal This part replaces 420650370.
19	420950890	O-Ring
20	Not	Available As Spare Part - Water Pump/Oil Pump Shaft
21	420840514	Allen Screw M5 x 16 This part replaces 420840511.
22	420227945	Thrust Washer
23	420222505	Water Impeller
24	420931811	Gasket This part replaces 420931810.
25	420922630	Water Pump Housing
26	420240034	Hex. Screw M6 X 25 This part replaces 420240031.
27	420931568	Gasket This part replaces 420931565.
28	420810827	Cover Plate This part replaces 420810825.
29	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
30	219704404	Oil Hose 1500Mm Long
31	219704414	Was 415110000 Polyurethane Hose 5.2 mm
32	420874370	Fitting
33	420956239	OIL TUBE - Call your local BRP dealership
34	420960279	Closure Cap
35	420951260	CLAMP - Call your local BRP dealership
36	420951241	CLAMP - Call your local BRP dealership This part replaces 420951240.
38	420850350	Rubber Gasket
39	420956250	Oil Tank Cap
40	420866710	Tie Rap
41	420059320	SHORT BLOCK 593 RS - Call your local BRP dealership
